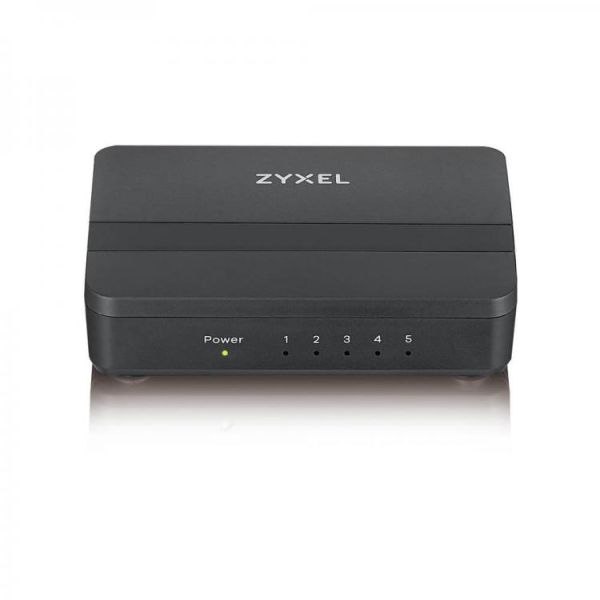

ZyXEL GS-105S v2 5 Port Ethernet Switch

ZyXEL GS-105S v2 5 Ports Ethernet Switch

The Zyxel GS-105S v2 5-Port Desktop Gigabit Ethernet Media Switch can easily connect multiple media devices to home networks at blazing-fast Gigabit simultaneously. Moreover, the GS-105S v2 allows smooth video streaming and online gaming activities.

Plug and Play Stylish Design

With the easy plug-and-play features, you can connect the Zyxel GS-105S v2 to VoIP, Media Players, Game Consoles, TV Set-Top Box or Web Browsing Devices to your home network without any configuration effort. The stylish modern look and streamlined design also make the GS-105S v2 fits nicely in the house.

Smooth Multi-Media Streaming and Gaming

The Zyxel GS-105S v2 features QoS ports for users to assign high, medium and low priorities for preferred network applications. You can connect VoIP or Media Players to the high priority ports for simultaneous high-quality voice and the multimedia streaming experience at home. For online gaming, simply connect the Games Console through the medium priority QoS port while plugging PC and Laptops for web browsing to the low priority QoS ports according to your need.

Blazing Fast Gigabit Data Transmission

The Zyxel GS-105S v2 10/100/1000 Mbps switch is designed to provide reliable high-performance media network connectivity 10 times faster than Fast Ethernet. It perfectly fulfills the demands for multimedia streaming and online gaming at the same time.

Bi-Colour LED Indicators for Ethernet Port Status

The Zyxel GS-105S v2 features auto sensing function and Gigabit Ethernet Ports with LED Indicators, which are easy to understand, allowing users to quickly check link and activity status at a glance.

Green Ethernet for Energy Saving

Compliant with the IEEE 802.3az Energy Efficient Ethernet standard as 'Green Ethernet', the GS-105S V2 automatically detects power consumption according to the number of active connected network devices and cable length. With fewer active connected network devices or shorter Ethernet Cable length, the switches will consume less power accordingly.

Features

• Smooth Multimedia Streaming and Gaming Through QoS Ports with 3-Level Prioritisation
• Plug and Play Stylish Design, Fitting all Home Environments
• Multimedia Streaming with Blazing Fast Gigabit Connection
• Green Ethernet for Energy Saving
• Bi-Colour LED Indicators for Ethernet Port Status
• Auto-MDI/MDIX in all Ports
• Transmission Method - Store and Forward Architecture
• Port Based Quality of Service (QoS) Support
• Jumbo Frame Support up to 9KB

System Specifications

Standard

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3 Nway Auto-Negotiation
• IEEE 802.3x Full Duplex Operation and Flow Control
• IEEE 802.3az Energy Efficient Ethernet

Performance

• Data Transfer Rate (Half Duplex/Full Duplex) - Ethernet - 10/20 Mbps, Fast Ethernet - 100/200 Mbps, Gigabit Ethernet - 1000/2000 Mbps
• Mac Address Table - GS-105S v2: 2K
• Memory Buffer - GS-105S v2: 128 KB
• Switching Fabric (Non Blocking) - GS-105S v2: 10 Gbps

Hardware Specifications

Interface

• Five RJ-45 10/100/1000 Mbps Ethernet Ports with Auto MDI/MDIX Support

QoS Ports

• One High Priority QoS Port, Two Medium Priority QoS Ports, and Two Low Priority QoS Ports

LED Indicator

• PWR - Power
• Per Port - Link Activity - Amber 10/100 Mbps, Green 1000 Mbps

Power Supply

• Input - 100V-240V AC
• Output - 5V DC, 1A

Power Consumption

• GS-105S v2 - 2.5 Watt Max

Physical Dimensions

• GS-105S v2 Dimensions - (W x D x H) - 99.1 x 67.6 x 28.6 m (3.9" x 2.7" x 1.1")

Weight

• GS-105S v2 Weight - 79g (0.17lb)

In the Box

• GS-105S v2 Gigabit Switch
• Power Adapter
• Quick Start Guide
