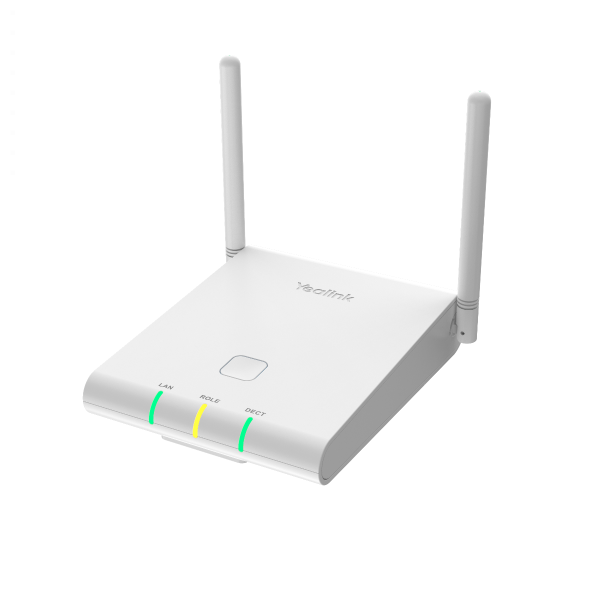

Yealink W90DM Cordless DECT IP Multi-Cell System

Suitable for Large Spaces that need to use Multi-Cell Solutions with up to 60 Base Stations, Up to 250 Handsets, Up to 250 SIP Accounts and Up to 250 Parallel Calls.

The Yealink W80 DECT IP Multi-Cell System consists of two elements - a Base Station (W90B) and a DECT Manager (W90DM). It is designed to provide organisations who require wireless coverage with the full ease of deployment. This DECT Multi-Cell System creates an extremely scalable and reliable solution for organisations of any size. The Multi-Cell System supports up to 250 Handsets and 250 Simultaneous Calls, ensuring one call in each Handset allowing you to ger rid of the limited wireless network that only offers coverage of a single Base Station.

The Multi-Cell System can work with W53H, W56H, W59R, W78H, CP930W and DD Phone with seamless roaming and handover of the calls, making mobile communication in and between each zone achievable.

Both the Yealink W90B and W90DM join the modern, compact design with Yealink HD voice quality - setting free your ears and giving you an elaborate audio experience.

Key Features and Benefits:

Seamless Stability

The Yealink W90 DECT IP Multi-Cell System brings seamless stability. The rotatable external antennas ensure further signal range, wide coverage, and flexible steering for complex areas. The Lan Sync guarantees stable roaming even in poor signal transmission environment or strong signal interference like warehouses with overcrowded cargos or several iron gates.

Easy Deployment

The Yealink W90 DECT IP Multi-Cell System provides easier and faster setup for users: the DECT Deployment Toolkit for quick base location, IP discovery tool for quickly getting IP of DM, and auto sync level for self organising network without manual operation. Instead of complex steps, it takes less time from deployment to daily management for larger systems.

Wide Coverage

Available for 1DM, 60 Bases, 250 handsets and 250 parallel calls, the Yealink W90 DECT IP Multi-Cell System is tailored for large space and multi-locations & bases, delivering unified communicating solutions, especially for warehouses, hospitals, hotels, supermarkets chains, cruises, car dealerships, offices, retail formats and many more. Virtual machines and more bases will be supported in the future, boarding the coverage once more.

Multiple Phone Books

The Yealink W90 DECT IP Multi-Cell System offers easy access to multiple phone books, including Local Directory, Remote Phonebook, LDAP, and XML Phonebook. Additionally, it is broadly compatible with PBX contacts.

Main Features

• Easy Access to Multiple Phonebooks
• Wide Coverage, Easy Deployment
• Seamless Stability, Handover and Roaming
• Supports Air and LAN Synchronisation
• Supports XML/LDAP/Remote Phonebook
• Supports XSI Directory/XSI Call Log
• Supports SRTP / SIPS / TLS / LDAP(S) and HTTPS
• External Antenna - DECT Radio Coverage up to 50m Indoors and 300m Outdoors
• Supports Opus, Supports PoE
• Auto-P, HD Audio, Wall Mountable
• Compatible with - W59R, W56H, W78H, CP930W and DD Phone
• Three LED Indicators on W90DM / W90B - 1 x DECT LED, 1 x Role LED, 1 x LAN (Power Indicator & Network Status) LED

Phone Features

• Sync over the Air and LAN (Seamless Handover and Roaming)
• Each Multicell System - Up to 250 Simultaneous Calls, Up to 60 Base Stations, Up to 8 WB (4 Active Handsets) Calls per Base, Up to 8 NB Calls per Base, Up to 250 Handsets, Up to 250 VoIP Accounts, Up to 2 Simultaneous Calls per Handset
• Call Hold, Call Transfer, 3 Way Conference
• Switching Between Calls
• Call Waiting, Mute, Silence, DND
• Caller ID with Name and Number
• Anonymous Call, Anonymous Call Rejection
• Call Forward (Always / Busy / No Answer)
• Speed Dial, Voicemail, Redial
• Message Waiting Indication (MWI)
• Music on Hold (Server Based)
• Local Phonebook for up to 100 Entries per Handset
• Remote Phonebook / LDAP / XML Phonebook
• Phonebook Search / Import / Export
• Call History (All / Missed / Placed / Received)
• Reset to Factory, Reboot, Keypad Lock, Emergency Call
• Broadsoft Directory, Broadsoft Call Log
• Broadworks Feature Key Synchronisation
• Shared Call Appearance (SCA)
• XML Browser, IPUI Registration
• User Access Level

Audio Features0

• Full Duplex Speakerphone
• Hearing Aid Compatibility (HAC Compliant)
• DTMF, Wideband Codec - Opus, AMR-WB (Optional) G.722
• Narrowband Codec - AMR NB (Optional) PCMU, PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US) 1902 – 1906 MHz (TH), 1910 – 1920 MHz (BR)

Interface

• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE.802.3af0, Class 1

Package Contents

• Yealink W90DM
• Expansion Screws
• Quick Start Guide
