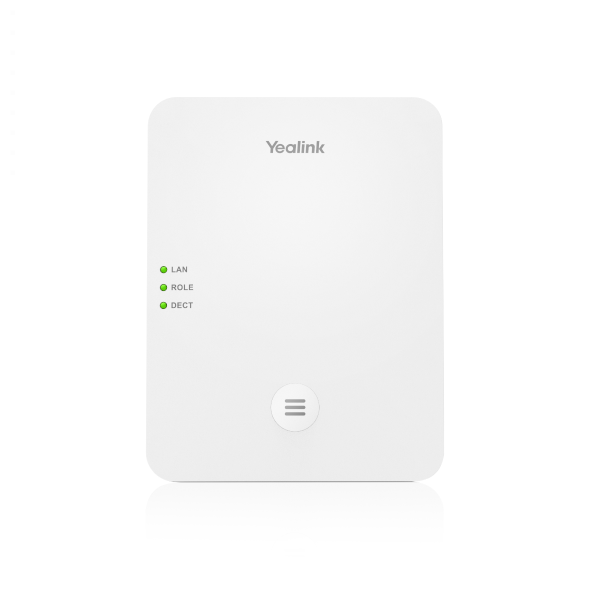

Yealink W80DM DECT IP Multi-Cell System

Suitable for Large Spaces that need to use Multi-Cell Solutions with up to 30 Base Stations, Up to 100 Handsets, Up to 100 SIP Accounts and Up to 100 Parallel Calls.

The Yealink W80 DECT IP Multi-Cell System consists of two elements - a Base Station (W80B) and a DECT Manager (W80DM). It is designed to provide organisations who require wireless coverage with the full ease of deployment. This DECT Multi-Cell System creates an extremely scalable and reliable solution for organisations of any size. The Multi-Cell System supports up to 100 Handsets and 100 Simultaneous Calls, ensuring one call in each Handset allowing you to ger rid of the limited wireless network that only offers coverage of a single Base Station.

The Multi-Cell System can work with W53H, W56H, W59R, W78H, CP930W and DD Phone with seamless roaming and handover of the calls, making mobile communication in and between each zone achievable.

Key Features and Benefits:

Security and Stability

Based on Yealink DECT Technology, the W80 DECT IP Multi-Cell System provides users with both the stable call and seamless roaming and handover. Wireless data transmission over the air is ensured by the DECT encryption and wirelessly eaves dropping on a conversation is not possible. TLS and SRTP play a crucial part in secure SIP communication.

Advanced DECT Contacts

When a call is incoming, the receiver can obtain the caller information, this includes the callers number and caller name from the phone screen easily and clearly rather than just a row of digits. Better compatibility with several PBX platforms make the contacts from different platforms reachable on the Yealink W80 DECT IP Multi-Cell System like Xsi directory, XML contacts as well as LDAP and remote phonebook.

Easy Setup and Deployment

In the multicast network, administrators benefit from the zero touch provisioning established as soon as the Base Station is powered on and connected to the network. No problem if you are in the non-multicast network environment The wireless terminal will help you configure the system by obtaining the IP address and all in a faster and easier way.

DECT Technology

Yealink DECT Technology is based on CAT-iq2.0, which focuses on high quality Audio VoIP (wideband), as well as low bit - rate data applications. But we are not compatible with any third-party DECT devices (base station, handset, etc.).

Headset Registration

The Yealink W80 DECT IP Multi-Cell System supports Yealink WH62 and Yealink WH63 Headset Registration. It can be registered separately and used on W80B alone or paired with Handsets. Aftrer pairing you can switch the Hnadset amd the Headset to process calls freely.

No Perception Upgrade

The Yealink W73H, W78H, W57R and W59R can be upgraded with no perception. The upgrade of the Handsets will be completed within two minutes. The channel will not be occupied during the firmware transmission, and the Handsets can be used normally.

Sync Level 1 Base Backup

Yealink W80 DECT IP Multi-Cell System supports sync Level 1 base backup. When the Level 1 base goes offline, other bases in the system can be used as the backup Level 1 base, and the backup can be completed within one minute to replace the Level 1 Base so that the system can quickly maintain normal use.

Main Features

• Easy Access to Multiple Phonebooks
• Seamless Roaming and Stability
• Easy Setup, Fast Deployment
• HD Audio, Wall Miountable
• DECT / SRTP / TLS
• Cloud Contact / LDAP / XML
• Auto-P, Compatible with Multiple Devices
• DECT Radio Coverage up to 50m Indoors and 300m Outdoors
• Supports Opus, Supports PoE
• Compatible with - W53H, W56H, W78H, CP930W and DD Phone
• Three LED Indicators on W80DM / W80B - 1 x DECT LED, 1 x Role LED, 1 x LAN (Power Indicator & Network Status) LED

Phone Features

• Sync over the Air (Seamless Handover and Roaming)
• Up to 100 Simultaneous Calls, Up to 30 Base Stations
• Up to 8 WB (4 Active Handsets) Calls per Base
• Up to 8 NB Calls per Base, Switching Between Calls
• Up to 100 Handsets, Up to 100 VoIP Accounts
• Up to 2 Simultaneous Calls per Handset
• Call Hold, Call Transfer, 3 Way Conference
• Call Waiting, Mute, Silence, DND
• Caller ID with Name and Number
• Anonymous Call, Anonymous Call Rejection
• Call Forward (Always / Busy / No Answer)
• Speed Dial, Voicemail, Redial
• Message Waiting Indication (MWI)
• Music on Hold (Server Based)
• Local Phonebook for up to 100 Entries per Handset
• Remote Phonebook / LDAP / XML Phonebook
• Phonebook Search / Import / Export
• Call History (All / Missed / Placed / Received)
• Reset to Factory, Reboot, Keypad Lock, Emergency Call
• Broadsoft Directory, Broadsoft Call Log
• Broadworks Feature Key Synchronisation
• Shared Call Appearance (SCA)
• XML Browser, IPUI Registration
• User Access Level

Audio Features

• Full Duplex Speakerphone
• Hearing Aid Compatibility (HAC Compliant)
• DTMF, Wideband Codec - Opus, AMR-WB (Optional) G.722
• Narrowband Codec - AMR NB (Optional) PCMU(G.711µ), PCMA(G.711A), G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US) 1902 – 1906 MHz (TH), 1910 – 1920 MHz (BR)

Interface

• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE.802.3af0, Class 1

Package Contents

• Yealink W80DM
• Expansion Screws
• Quick Start Guide
