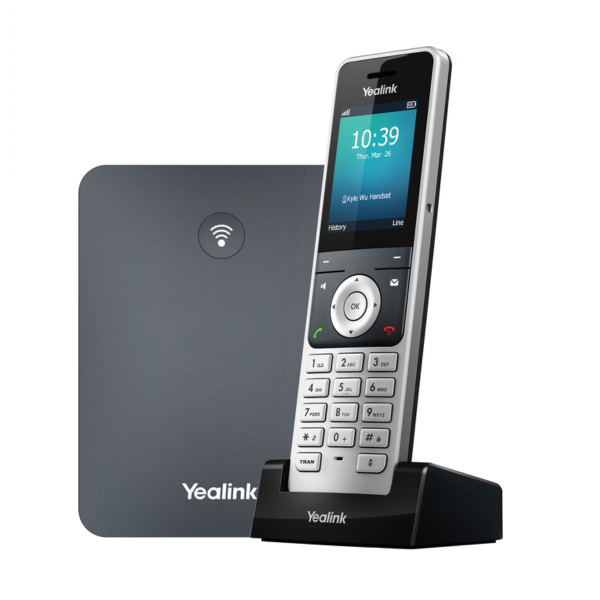

Yealink W76P DECT SIP Cordless Phone System

About the Yealink W76P DECT Phone System

Designed to fulfill the demands of mobile communication in modern business workplaces, Yealink W76P combines the W56H DECT Handset and Yealink W70B Base Station for superb audio quality and cordless communication experience, which makes it an ideal solution for diverse business segments of small to medium size.

Supporting registration with up to 10 Yealink W56H DECT Handsets, the W76P system is launched with robust processing capacity for up to 10 SIP Accounts and 20 simultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.

By supporting Opus codec, W76P consistently delivers excellent and professional audio quality in both high-bandwidth and poor network conditions, comparing with other wideband or narrowband audio codecs. Offering the convenience of cordless with a simple add-on device without losing the SIP features, it brings a seamless call management for our users while “on-the-go”. Owning more functions, lines and mobility, it empowers users with the convenience of wireless communication along with the widely accepted benefits and feature richness of Voice-over-IP telephony.

The Yealink W76P supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes it simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.

More Choices with Yealink Full Range of DECT Devices Solution

Compatible with the whole series of Yealink DECT endpoints including the Handsets, Conference Phones and DD Phones, the W76P could be scaled for building up wireless communication networks in various workspaces.

Main Features

• 2.4" 240 x 320 Colour Screen with Intuitive User Interface
• Up to 20 Simultaneous Calls
• Up to 10 DECT Handsets
• Up to 10 VoIP Accounts
• Support Opus Audio Codec
• Up to 30 Hours of Talk Time - In Ideal Conditions
• Quck Charging - 10 Minute Charge Time for up to 2 Hours of Talk Time
• TLS and SRTP Security Encryption
• Noise Reduction System
• Headset Connection Via 3.5mm Jack
• Wall Mountable Charger
• Energy Saving Eco Features
• DECT Radio Coverage up to 50m Indoors and 300m Outdoors
• Ergonomic and Compact Design to fit in the Palm of your Hand
• Embedded Powerful Li-Ion Battery to Undertake High Volumes of Calls

Phone Features

• Up to 6 RT30 Repeaters Per W70B Base Station
• Up to 2 Simultaneous Calls Per Handset | Up to 20 Simultaneous Calls
• Up to 10 Handsets | Up to 10 VoIP Accounts
• Handset Selection for Receiving a Call
• Handset and Number Selection for Placing a Call
• Paging, Intercom, Auto Answer, Dial Plan
• Call Hold, Call Transfer, 3 Way Conference
• Switching Between Calls
• Call Waiting, Mute, Silence, DND
• Caller ID with Name and Number
• Anonymous Call/Anonymous Call Rejection
• Call Forward - Always, Busy, No Answer
• Speed Dial, Voicemail, Redial
• Message Waiting Indication (MWI)
• Music on Hold (Server Based)
• Local Phonebook for up to 1000 Entries (Store in the Base)
• Remote Phonebook LDAP/XML, Phonebook
• Phonebook Search, Import, Export
• 100 Call History per Handset - All, Placed, Missed, Received, Forwarded
• Direct IP Call without SIP Proxy
• Reset to Factory, Reboot
• Keypad Lock, Emergency Call
• Broadsoft Directory, Broadsoft Call Log
• Broadworks Feature Key Synchronisation
• Shared Call Appearance (SCA)
• XML Browser
• Action URI

Audio Features

• Full Duplex Speakerphone
• Hearing Aid Compatibility (HAC) Compliant
• Receiver Volume Control - 5 Steps
• Ringer Volume Control - 5 Steps+Off
• Multiple Advisory Tones
• Acoustic Warning for Low Battery Status
• DTMF | Full Duplex Speakerphone
• Wideband Codec - Opus, AMR-WB (optional), G.722
• Narrowband Codec - AMR-NB (Optional), PCMU,PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB
• AEC (Supported by W56H)
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Physical Features

• Indoor Range - 50m (Iin Ideal Conditions)
• Outdoor Range - 300m (In Ideal Conditions)
• Standby Time - 400 Hours (In Ideal Conditions)
• Talk Time - 30 Hours
• 2.4’’ 240 x 320 Pixel Colour Display
• Desktop or Wall Mountable
• LCD Backlit, Key Backlit
• Energy Saving ECO Mode/ECO Mode+
• 12 Key Numerical Keypad, 5 Navigation Keys, 2 Softkeys, 6 Function Keys, 6 Shortcut Keys
• Three LED Indicators on W70B - 1 x Registration LED - 1 x Network Status LED - 1 x Power Indicator LED
• External Yealink AC Adapter - AC 100-240V Input and DC 5V/600mA Output
• Handset Dimensions - 175mm x 53mm x 20.3mm
• Base Station Dimensions - 130mm x 100mm x 25.1mm

Network Features

• SIP v1 (RFC2543), v2 (RFC3261
• SNTP/NTP | VLAN (802.1Q and 802.1P)
• 802.1x, LLDP | STUN Client (NAT Traversal)
• UDP/TCP/TLS | IP Assignment: Static/DHCP
• Support Outbound Proxy Server Backup

Security

• Open VPN
• Transport Layer Security (TLS)
• HTTPS (Server/Client), SRTP (RFC3711)
• Digest Authentication
• Secure configuration File via AES Encryption
• Support SHA256/SHA512/SHA384
• Three Level Configuration Mode - Admin/Var/User

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards CAT-iq2.0

Interface

• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE 802.3af), Class 1
• Headset Jack (3.5 mm)

Personalisation

• 9 Ringer Melodies
• Screen Saver
• Multi-lingual User Interface

Management

• Auto Provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto Provision with PnP
• Handset Upgrade - OTA (Over-The-Air)
• Configuration - Browser, Phone, Auto Provision
• Trace Package and System Log Export

Package Contents

• W56H Handset
• W70B Base Station
• Base Stand
• USB Charger Cradle
• Two Power Adapters
• Ethernet Cable
• Belt Clip
• Rechargeable Battery
• Quick Start Guide
