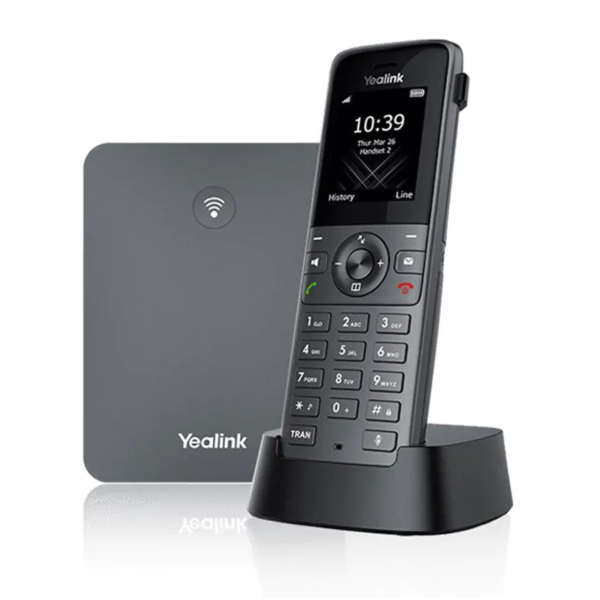

Yealink W73P DECT SIP Cordless Phone System - 1 Handset

About the W73P SIP Cordless Phone System

The Yealink W73P is a high performance SIP Cordless Phone System, it is the ideal solution for small and medium sized businesses, allowing users to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminating additional wiring. Supporting registration with up to 10 Yealink W73H DECT Handsets, the W73P system is launched with robust processing capacity for up to 10 SIP Accounts and 20 Simultaneous calls. More flexibility and mobility could be enabled through up to 6 optional Repeaters for extended network coverage.

Enjoy clearer, high quality voice calls with new Noise Cancellation Technology, by supporting Opus Codec W73P consistently delivers excellent and professional audio quality in both high bandwidth and poor network conditions. It brings a seamless call management for our users while “on-the-go” with combining DECT technology with SIP capabilities. Enjoy the convenience of wireless communication anytime, anywhere, as well as the extensive benefits and feature richness of IP voice phones.

The new Yealink W73P embraces upgraded hardware, acoustic algorithm, computing capacity and signal strength, providing the flexible workforces with HD Audio. For the workers of complex environments, the system also delivers noise-free conversations with larger volume.

The Yealink DECT IP Phone W73P supports efficient provisioning and effortless mass deployment with Yealinks Redirection and Provisioning Service (RPS) and Boot mechanism to help users realise the Zero Touch Provisioning without any complex manual settings, which makes it simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.

DECT Technology

Yealink DECT Technology is based on CAT-iq2.0, which focuses on high quality Audio VoIP (wideband), as well as low bit - rate data applications. But we are not compatible with any third-party DECT devices (Base Station, Handset, etc.)

Main Features

• High Performance SIP Cordless Phone System
• 1.8" 128 x 160 TFT Color Screen with Intuitive User Interface
• Up to 20 Simultaneous Calls
• Up to 10 DECT Cordless Handsets
• Up to 10 SIP Accounts
• Support Opus Audio
• Noise Reduction System
• FNR (Flexible Noise Reduction)
• Up to 35 Hours of Talk Time (in Ideal Conditions)
• Up to 400 Hour Standby Time (in Ideal Conditions)
• Quick Charging - 10 Minute Charge Time for 2 Hour Talk Time
• TLS and STRP Security Encryption
• Headset Connection Via 3.5mm Jack
• Wall Mountable Charger

Phone Features

• Up to 20 Simultaneous Calls
• Up to 10 Handsets
• Up to 10 SIP Accounts
• Up to 2 Simultaneous Calls per Handset
• Up to 5 Repeaters per Base Station (RT20U)
• Up to 6 Repeaters per Base Station (RT30)
• Handset Selection for Receiving Calls
• Handset and Number Selection for Placing Calls
• Paging, Intercom, Auto Answer, Dial Plan
• Call Hold, Call Transfer, 3 Way Conference
• Switching Between Calls
• Call Waiting, Mute, Silence, DND
• Caller ID with Name and Number
• Anonymous Call, Anonymous Call Rejection
• Call Forward (Always/Busy/No Answer)
• Speed Dial, Voicemail, Redial
• Message Waiting Indication (MWI)
• Music on Hold (Server-Based)
• Local Phonebook for up to 1000 Entries(Store in the Base)
• Remote Phonebook/LDAP/XML Phonebook
• Phonebook Search/Import/Export
• 100 Call History per Handset - All/Placed/Missed/Received
• Direct IP Call without SIP Proxy
• Reset to Factory, Reboot
• Keypad Lock, Emergency Call
• Broadsoft Directory, BroadSoft Call Log
• Broadworks Feature Key Synchronization
• Shared Call Appearance (SCA)
• XML Browser

Personlisation

• 9 Ringer Melodies
• Screen Saver
• Multilingual User Interface

Management

• Auto Provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto Provision with PnP
• Handset Upgrade - OTA (Over-The-Air)
• Configuration - Browser/Phone/Auto Provision
• Trace Package and System Log Export

Audio Features

• Full Duplex Speakerphone
• Hearing Aid Compatibility (HAC) Compliant
• FNR (Noise Cancellation)
• Receiver Volume Control - 5 Steps
• Ringer Volume Control - 5 steps+Off
• Multiple Advisory Tones
• Acoustic Warning for Low Battery Status
• DTMF
• Wideband Codec - Opus, AMR-WB (Optional), G.722
• Narrowband Codec: PCMU, PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB
• Support VQ-RTCPXR (RFC6035), RTCP-XR
• AEC (Supported by W73H)

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP Assignment - Static/DHCP
• Support Outbound Proxy Server Backup

Security

• Open VPN
• Transport Layer Security (TLS)
• HTTPS (Server/Client), SRTP (RFC3711)
• Digest Authentication
• Secure Configuration File via AES Encryption
• Support SHA256/SHA512/SHA384
• Three Level Configuration Mode - Admin/Var/User

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards: CAT-iq2.0

Interface

• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE 802.3af), Class 1
• Headset Jack (3.5 mm)

Physical Features

• Indoor Range - 50m (in Ideal Conditions)
• Outdoor Range - 300m (in Ideal Conditions)
• Standby Time - 400 Hours (in Ideal Conditions)
• Talk Time - 35 Hours (in Ideal conditions)
• 1.8" 128 x 160-Pixel TFT Color Display
• Desktop or Wall Mountable
• Energy Saving ECO Mode/ECO Mode+
• Backlit Keypad with 25 Keys - Standard ITU Telephone Keypad, 12 Keys, 4x3, with Star and Pound Key - 5 Navigation Keys (Left, Right, Up, Down, OK) - 2 Softkeys - 6 Function Keys (Speaker, Message, Off-Hook, Cancel, TRAN, Mute)
• 6 Shortcut Keys
• Three LED Indicators on W70B - 1 x Registration LED - 1 x Network Status LED - 1 x Power Indicator LED
• External Yealink AC Adapter -AC 100-240V Input and DC 5V/0.6A Output
• Colour - Handset: Space Grey; Base: Classic Grey
• Handset Dimensions - 144.5 mm x 48 mm x 21 mm
• Base Station Dimensions - 130mm x 100mm x 25.1mm

Package Contents

• Yealink W73H Handset
• W70B Base Station
• Base Stand
• Charger Cradle
• Two Power Adapters
• Ethernet Cable
• Belt Clip
• Rechargeable Battery
• Quick Start Guide
