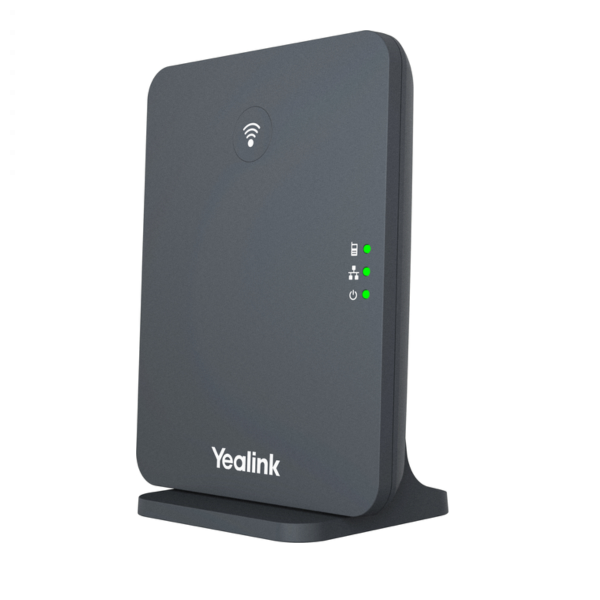

Yealink W70B DECT IP Base Station

The Yealink W70B DECT IP Base Station can be Paired with up to 10 of the Following Handsets:

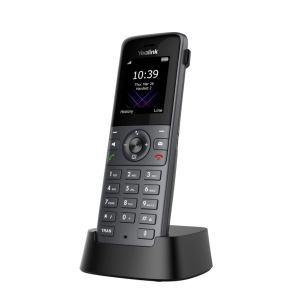

Yealink W73H

Yealink W56H

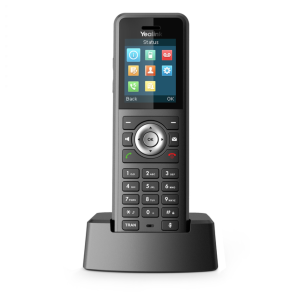

Yealink W59R

Yealink CP930W

Yealink T54W with Yealink DD10K DECT Dongle

About the Yealink W70B

The W70B allows users to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminating additional wiring trouble. A powerful chip ensures better and higher performance, the W70B supports up to 10 VoIP Accounts and 20 simultaneous calls, and also speeds up its start up and signal connection, provides no perception upgrade, slashes its upgrade downtime as well.

The modern, elegant and compact design of the DECT Base Station possesses a wire hidden design, presenting a concise and tidy desk and can even be mounted to the wall. Supporting Opus Codec, the Yealink W70B consistently delivers excellent and professional audio quality in both high bandwidth and poor network conditions, compared to other wideband or narrowband audio codecs.

The Yealink W70B DECT IP Base Station supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch Provisioning without any complex manual settings, which makes it simple to deploy, easy to maintain and upgrade, saving even more time and IT costs for businesses.

DECT Technology

Yealink DECT Technology is based on CATiq2.0, which focuses on high quality Audio VoIP (Wideband), as well as low bit - rate data applications. But are not compatible with any third-party DECT Devices (Base Station, Handset, etc.).

Supports the new endpoints W73H and can be perfectly compatible with W53H, W56H, W59R, CP930W and colour screen DDPhone (T54W+DD10K). Due to the performance of the Handset, only W73H and W59R support no perception upgrade.

Features

• Up to 20 Simultaneous Calls
• Up to 10 Handsets
• Up to 10 SIP Accounts
• Up to 6 RT30 DECT Repeaters per Base Station
• No Perception Upgrade (W73H and W53R)
• Paging/Intercom/Auto Answer/Dial Plan
• Call Hold/Call Transfer/Call Waiting
• 3 Way Conference
• Switching Between Calls
• Mute/Silence/DND
• Caller ID with Name and Number
• Anonymous Call/Anonymous Call Rejection
• Call Forward - Always/Busy/No Answer
• Speed Dial/Voicemail/Redial
• Message Waiting Indication (MWI)
• Music on Hold (Server-Based)
• Local Phonebook for up to 1000 Entries (Store in the Base)
• Remote Phonebook/LDAP/XML Phonebook
• Phonebook Search/Import/Export
• Call History - All/Missed/Placed/Received
• Direct IP Call Without SIP Proxy
• Reset to Factory, Reboot
• Emergency Call
• Broadsoft Directory, BroadSoft Call Log
• Broadworks Feature Key Synchronization
• Shared Call Appearance (SCA)
• Action URI
• XML Browser
• Power over Ethernet (PoE) - However Power Supply Unit is also Provided

Management

• Auto Provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto Provision with PnP
• Handset Upgrade - OTA (Over-The-Air)/No Perception
• Configuration - Browser/Phone/Auto Provision
• Trace Package and System Log Export

Audio Features

• Full Duplex Speakerphone
• Hearing Aid Compatibility (HAC) Compliant
• FNR (Flexible Noise Reduction)/Noise Cancellation
• Wideband Codec - Opus, AMR-WB (Optional), G.722
• Narrowband Codec - PCMU, PCMA, G.726, G.729, G.729A, iLBC
• VAD, CNG, AGC, PLC, AJB
• AEC (Supported by W53H)
• Support VQ-RTCPXR (RFC6035), RTCP-XR

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP Assignment - Static/DHCP
• Support Outbound Proxy Server Backup

Security

• Open VPN
• Transport Layer Security (TLS)
• HTTPS (Server Client), SRTP, (RFC3711)
• Digest Authentication
• Secure Configuration File via AES Encryption
• Support SHA256/SHA512/SHA384
• Three Level Configuration Mode - Admin/Var/User

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards - CAT-iq2.0

Interface

• 1 x RJ45 10/100M Ethernet Port
• Power over Ethernet (IEEE 802.3af), Class 1

Physical Features

• Indoor Range - 50m (In Ideal Conditions)
• Outdoor Range - 300m (In Ideal Conditions)
• Desktop or Wall Mountable
• Energy Saving ECO Mode/ECO Mode+
• Three LED Indicators on W70B:- 1 x Registration LED - 1 x Network Status LED - 1 x Power Indicator LED
• External Yealink AC Adapter: AC 100-240V Input and DC 5V/600mA Output
• Dimensions - 130mm x 100mm x 25.1mm

Package Contents

• Yealink W70B Base Station
• Base Station Stand
• Power Supply Unit (PSU)
• Ethernet Cable
• Quick Start Guide
