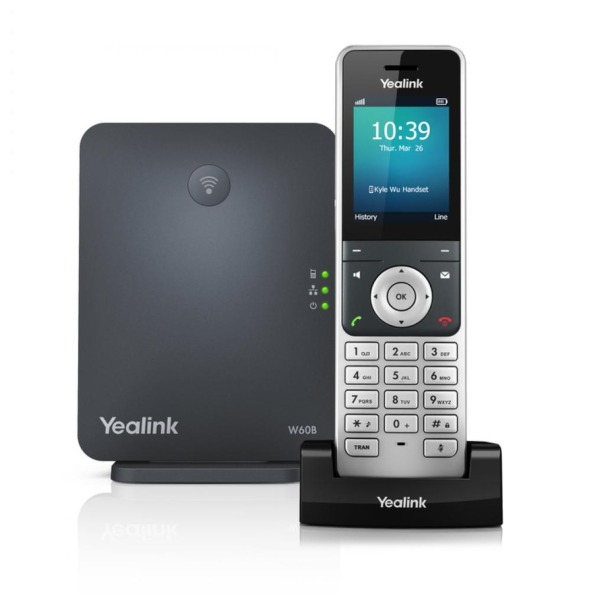

Yealink W60P Bundle - Yealink W56H Handset & W60B Base Station

High Performance SIP Cordless Phone System

Available in New or Refurbished

• 2.4 Inch Colour Screen
• Up to 8 DECT Handsets per Base
• 9 Ringer Melodies
• Up to 8 VoIP Account
• Up to 50m Indoor Range
• Up to 300m Outdoor Range
• Up to 30 Hours of Talk Time
• Up to 400 Hours of Standby Time
• 3.5mm Headset Jack for Headset Connection

Overview

The Yealink W60P Bundle consists of the Yealink W56H Handset and the Yealink W60B Base Station. With a talk time of up to 30 hours, a standby time of up to 400 hours and quick charging, which enables 10 minutes of charging time to provide up to 2 hours of talk time, the W60P Bundle is the ideal solution for any small to medium sized company, where employees are moving around the premises and need to handle calls away from their desks.

Delivering a perfect balance of portability with call management capabilities, the W60P also allows users to handle up to 8 calls simultaneously whilst on the move, keeping users connected up to 50m indoors and 300m outdoors from the phones base unit.

This high performance SIP Cordless Phone system also delivers professional audio quality in both high bandwidth and poor network conditions and pairs up with a total of 8 Yealink W52H/W56H DECT Handsets as well as offering the ultimate productivity solution for any business. Add this to Yealink’s Zero Touch Provisioning capabilities, and the W60P can be integrated without any complex manual settings – making it simple to deploy, easy to maintain, and saving even more time and IT costs for the business.

Phone Features

• Up to 8 Simultaneous Calls
• Up to 8 Handsets
• Up to 8 VoIP  Accounts
• Up to 2 Simultaneous Calls per Handset
• Up to 5 Repeaters per Base Station
• Handset Selection for Receiving Calls
• Handset and Number Selection for Making Calls
• Paging, Intercom, Auto Answer, Dial Plan
• Call Hold, Call Transfer, 3 Way Conference
• Switching Between Calls
• Call Waiitng, Mute, Silence, DND
• Caller ID with Name and Number
• Anonymous Call. Anonymous Call Rejection
• Call Forward (Always/Busy/No Answer)
• Speed Dial, Voicemail, Redial
• Message Waiting Indication (MWI)
• Local Phonebook for up to 500 Entries (Store in the Base)
• Remote Phonebook/LDAP
• Phonebook Search/Import/Export
• Call History (All/Missed/Placed/Received
• Direct IP Call without SIP Proxy
• Reset to Factory, Reboot
• Keypad Lock, Emergency Call, Music on Hold
• Broadsoft Directory, Broadsoft Call Log
• Broadworks Feature Key Synchronization
• Shared Call Appearance (SCA)
• Noise Reduction System
• TLS and SRTP Security Encryption

Personalisation

• 9 Ringer Melodies
• Screen Saver
• Multilingual User Interface

Management

• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto-provision with PnP
• Handset Upgrade - OTA (Over-The-Air) USB Port
• Configuration - Browser/Phone/Auto-Provision
• Trace Package and System Log Export

Audio Features

• Full Duplex Speakerphone
• Hearing Aid Compatible (HAC)
• Receiver Volume Control - 5 Steps
• Ringer Volume Control  -5 Steps+Off
• Multiple Advisory Tones
• Acoustic Warning for Low Battery Status
• DTMF
• Wideband Codec - Opus, AMR-WB (optional), G.722
• Narrowband Codec - PCMU, PCMA, G.726, G.729, iLBC
• VAD, CNG, AEC, AGC, PLC, AJB
• Support VQ-RTCPXR (RFC6035)

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• SNTP/NTP
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP, PPPoE
• STUN Client (NAT Traversal)
• UDP/TCP/TLS
• IP Assignment - Static/DHCP
• Support Outbound Proxy Server Backup

Security

• OpenVPN
• Transport Security Layer (TLS)
• HTTPS (Server/Client), SRTP (RFC3711)
• Digest Authentication Using MD5
• Secure Configuration File Via AES Encryption
• Support SHA256/SHA512/SHA384
• Three Level Configuration Mode - Admin/Var/User

DECT

• Frequency Bands - 1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
• DECT Standards - CAT-iq2.0

Physical Features

• Indoor Range  - Up to 50m
• Outdoor Range - Up to 300m (In Ideal Conditions)
• Standby Time - 400 Hours (In Ideal Conditions)
• Talk Time - 30 Hours
• 2.4’’ 240 x 320 Pixels Colour Display
• Desktop or Wall Mountable
• LCD Backlit, Key Backlit
• Energy Saving - Eco Mode/Eco Mode+
• 12 Key Numerical Keypad, 5 Navigation Keys, 2 Softkeys, 6 Function Keys, 6 Shortcut Keys
• Three LED Indicators on W60B - 1 x Registration LED, 1 x Network Status LED, 1 x Power Indicator LED
• External Yealink AC Adapter - AC 100-240V Input and DC 5V/600mA Output
• W56H Handset Dimensions - 175mm x 53mm x 20.3mm
• W60B Base Station Dimensions - 130mm x 100mm x 25.1mm

Package Contents

• Yealink W56H Handset
• W60B Base Station
• Base Stand
• USB Charger Cradle
• Two Power Adapters
• Ethernet Cable
• Belt Clip
• Rechargeable Battery
• Quick Start Guide

**Please Note - Refurbished Contents May Vary from Above**
