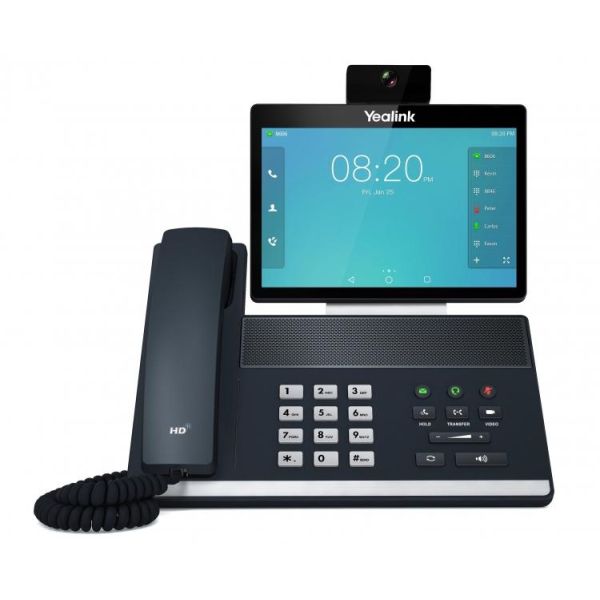

Yealink VP59 Smart Video IP Phone

About the Yealink VP59 Smart Video IP Phone

The Yealink Flagship Smart Video Phone VP59 is designed for executives and teleworkers, striking the perfect balance between simplicity and sophistication, enabling high quality communications for business executives and professionals alike. Based on Android 7.1 Operating system, the VP59 features an eight inch LCD Touch Screen that gives users a Smartphone like user experience, and also supports the installation of third party applications for business customisation as well as Doorphone Features.

When working with Yealink DD10K DECT USB Dongle, the Yealink VP59 will turn into a Corded-Cordless Phone and repay you up to Four DECT Handsets in total to meet your daily demands.

The VP59 Smart Video IP Phone boasts the 802.11 a/b/g/n/ac Wi-Fi connectivity as well as the Bluetooth 4.2 connectivity. The combination of advanced technology facilitates faster data transmissions and High Definition Multi-Media Interface (HDMI) output for high quality media exchanges.

Key Features and Benefits:

HD Audio and Video

The Yealink VP59 is coupled with the latest version of Yealink Optimal HD Voice technologies, that include Yealink Noise Proof and Acoustic Shield Technologies, that effectively eliminate background distractions and noises as well as delivering crystal clear voices, even in a noisy environment. Complying with the latest Hearing Aid Compatibility (HAC) Regulations, its HAC Handset helps users with Hearing Loss to hear voices more clearly, and also boasts a dynamic, removable 1080P HD Camera for extra-ordinary real time face to face interactions.

Easy Collaboration

The Yealink VP59 not only has built in Bluetooth 4.2 and built in Dual Band Wi-Fi, it also has an HDMI otput and the ability to function with Yealink VC Desktop together to share content from Laptops (With Yealink Firmware VCD Version 28). Busy environments can expand their horizons or share one phone system by adding multiple Handsets, simply turn the VP59 to the Corded-Cordless Phone via DECT Technology. Administrators can easily install additional 3rd party Android Applications like Skype for Business to improve collaboration and productivity. It also offers local HD recording and screenshot capabilities on their USB Flashdrive.

Distraction-Free HD Collaborations

Designed with Yealink Acoustic Shield Technology to deliver distraction free voice clarity for remote participants, Yealink Acoustic Shield Technology uses Multiple Microphones to create a Virtual Shield between the Speaker and the outside sound source. Once enabled it intelligently blocks or mutes sounds from outside the shield so that the person on the other end can hear you clearly. Built in Yealink Noise Proof Technology for small group sessions - the innovative Yealink Noise Proof Technology intelligently eliminates non-human voices so as to guarantee the productivity of the group discussion in huddle rooms or open workspace.

High Security and Interoperability

The Yealink VP59 addresses the need for heightened digital security by using SIP over Transport Layer Security (TLS/SSL), Significantly enhancing data protection. The device is not only secure, but also flexible. The VP59 supports broad interoperability with leading video conferencing systems and IP-PBX/UC Systems that are on the market, as well as several leading softswitch providers.

Efficient Installation and Provisioning

The Yealink VP59 supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot Mechanism to help users realise the Zero Touch Provisioning without any complex manual settings.

Key Features

• 8 Inch Multi-Touch Screen
• Adjustable Screen
• Corded-Cordless Phone
• Content Sharing -  (With Yealink Firmware VCD Version 28)
• PoE
• Built in Wifi
• Built in Bluetooth
• HDMI Output
• Full HD Video
• HD Audio
• Recording
• Android OS
• Yealinks SDK (Software Development Kit)
• Door Phone Features

Audio Features

• HD Voice, HD Handset, HD Speaker
• Hearing Aid Comptible (HAC) Handset
• Acoustic Shield
• Noise Proof
• Audio Codec - Opus, G.722, G.722.1, G.722.1C, PCMA, PCMU, G.729A/B, G.726, G.723.1, iLBC
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO
• Full Duplex Handsfree Speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Video Features

• 1080p@30fps HD Video Call
• Video Codec - H.264 High Profile, H.264, H.263, VP8
• 2 Mega Pixel Camera with Privacy Shutter
• Horizontal Field of View - 84°
• Vertical Field of View - 54°
• Adjustable Camera
• Plug and Play

Display and Indicator

• 8 Inch - 1280 x 800 Capacitive Touch Screen IPS LCD
• 10 Points Multi-Touch Surface
• Screensaver and Wallpaper
• LED for Call and Message Waiting Indication
• Intuitive User Interface with Icons and Soft Keys
• Multilingual User Interface
• Caller ID with Name, Number and Photo

Android Bundled Applications

• FileManager/Email/Calendar/Camera/Gallery/ Recorder/Calculator/Browser/Message
• Third Party Android Application Support

Phone Features

• 16 VoIP Accounts
• Call Hold, Mute, DND, Redial, Call Return, Auto Answer
• One-Touch Speed Dial, Hotline
• Call Forward, Call Waiting, Call Transfer
• Group Listening, Emergency Call
• Direct IP Call Without SIP Proxy
• Ring Tone Selection/Import/Delete
• Set Date Time Manually or Automatically
• Dial Plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Door Phone Integration
• Built in Dual Wi-Fi - Network Standard + IEEE802.11a/b/g/n/ac, Transmission Rate - Up to 433Mbps (Dynamic), Frequency Range - 2.4GHz/5.0GHz
• Built in Bluetooth 4.2 for - Bluetooth Headset, Mobile Contacts Synchronisation, Bluetooth Call
• Content Sharing Via Yealink VCD - (With Yealink Firmware VCD Version 28)
• Three Way Video Conferencing
• Five Way Audio/Video Mixed Conferencing
• Standard HDMI Output for Monitor Connection
• USB Ports - 2.0 Compliant - For Media and Storage Applications
• USB Ports - 3.0 Compliant - For Extending Camera with USB 3.0 Cable
• Notification Centre and Control Centre
• On Screen Keyboard

Corded-Cordless Phone (Via DECT Dongle DD10K)

• Up to 4 DECT Handsets
• Up to 4 Concurrent Calls
• Support Yealink W52H/W53H/W56H/DD Phone
• Slave Handset for Master Deskset

IP-PBX Features

• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous Call, Anonymous Call Rejection
• Remote Office
• Hot Desking, Intercom, Paging, Call Completion
• Message Waiting Indicator (MWI)
• Voicemail, Call Park, Call Pickup, Music on Hold, Call Recording

Directory

• Local Phonebook - Up to 1000 Entries
• Black List
• XML/LDAP Remote Phonebook
• Smart Dialing
• Phonebook Search/Import/Export
• Call History - Dialed/Received/Missed/Forwarded

Feature Keys

• 27 One-Touch DSS Keys
• 8 Feature Keys - Hold, Transfer, Message, Headset, Mute, Redial, Video, Speakerphone
• Volume Control Keys
• Illuminated Mute/Headset/Hands-Free Speakerphone Key

Interface

• Dual-Port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), Class ;
• 1 x USB Port (2.0 Compliant)
• 1 x USB Port (3.0 Compliant) for Camera/USB 3.0 Cable
• 1 x RJ9 (4P4C) Handset Port
• 1 x RJ9 (4P4C) Headset Port
• 1 x HDMI Output Port
• 1 x Security Lock Port

Management

• Configuration - Browser/Phone/Auto Provision
• Auto Provision via FTP/TFTP/HTTP/HTTPS for Mass Deployment
• Auto Provision with PnP, Zero-sp-Touch, TR-069
• Phone Lock for Personal Privacy Protection
• Reset to Factory, Reboot
• Package Tracing Export, System Log
• Only the Administrator can Install/Uninstall Apps Via Autop
• Set Up Assistant Wizard

Network and Security

• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call Server Redundancy Supported
• NAT Traversal - STUN Mode
• Proxy Mode and Peer-to-Peer SIP Link Mode
• IP Assignment - Static/DHCP/PPPoE
• HTTP/HTTPS Web Server
• Time and Date Synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS - 802.1p/Q Tagging (VLAN), Layer 3 ToS DSCP
• SRTP
• Transport Layer Security (TLS1.2)
• HTTPS Certificate Manager
• AES Encryption for Configuration File
• Adb Encryption Authenticated
• Digest Authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X

Package Contents

• Yealink VP59 Smart Video IP Phone
• Handset with Handset Cord
• Ethernet Cable
• Stand
• Quick Start Guide
