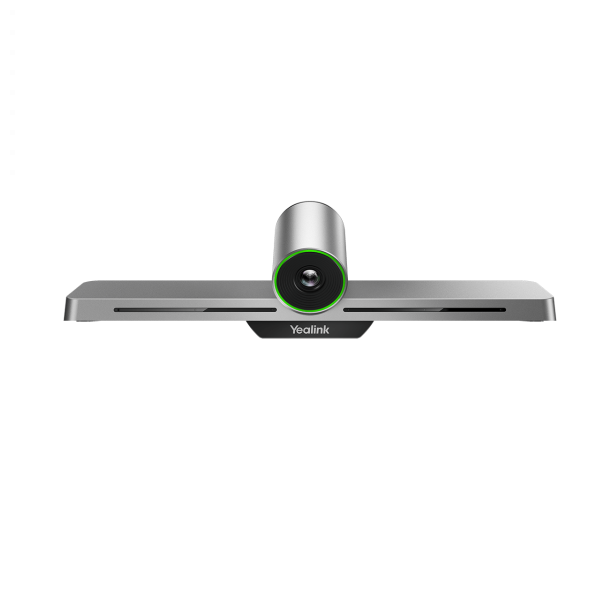

Yealink VC200-WP

Yealink VC200-WP

Smart Video Conferencing Endpoint for Small Rooms and Huddle Rooms

Based on Android 7.1 Operating System, the Yealink VC200 is an entry level Smart Video Conferencing Endpoint designed for Small Rooms and Huddle Rooms. Its Ultra HD 4K Camera and 103° superwide angle lens deliver outstanding video quality and additional face to face personal collaboration. Its six beamforming microphone arrays for direct voice pickup and Yealink Noise Proof Technology, the Yealink VC200 brings excellent sound in Small Rooms and ensures everyone can be seen and heard. Its compact Six-in-One design integrates a Built-in-Camera, Codec, Microphone, Bluetooth, Wi-Fi and Bracket, providing a turnkey solution that can be easily and consistently deployed with only two cables.

The Yealink VC200 is an ideal communication choice for any team who needs to concentrate fully on effective collaboration.

Key Features and Benefits:

Ultra HD 4K Camera and Super-Wide Angle Lens

The Ultra HD 4K Camera supports 4x Digital Zoom and e-PTZ and is with Super-Wide 103° Horizontal Field of View,  covering every seat at the table wholly without adjusting the camera. Featuring H.265/HEVC Video Codes, just with the minimum 512kbps, VC200 can realize 1080P HD Video Calls. Moreover, through Yealink anti-packet loss technology, the Yealink VC200 can resist up to 30% video and audio packet loss which guarantees smooth video communication.

Clearer Audio with Six Beamforming Microphone Arrays

With the most advanced Beamforming technology, VC200’s 6 built-in microphone arrays support directed voice pickup, ensuring a clearer voice by automatically identifying and comparing voice, and are optimised for Small Rooms and Huddle Rooms.

Automatically filtering unrelated noise, thanks to Yealink’s Smart Noise Proof technology, Video Conferencing can be more concentrated.

Compact Design for Fast Deployment

Six in One design, Integrating Codec, Camera, Microphone, Bluetooth, Wi-Fi and Bracket, taking up less space and minimizing cable clutter, only two cables are needed for a video conference (Network Cable and HDMI Cable).  The VC200 fits easily on the TV with thickness from 6mm to 50mm meaning it can be mounted on the top directly. Based on Android OS and TV styled interactive user interface, the VC200 offer all features with one touch operation but without any learning costs.

Wireless Clutter Free Meeting Room

Built in Bluetooth and Dual Band Wi-Fi module provide more connection options, no complex installation needed or messy cables are required. In addition the VC200 supports one click wireless content sharing via Yealink WPP20 (Included) and the voice pickup can be extended via optional wireless microphones.

Features

• Android 7.1 OS
• Ultra HD 4K Camera
• 4x e-PTZ Camera
• Wide-Angle Lens
• Beamforming Microphones
• Supports Wireless Content Sharing
• Built in Dual Band Wi-Fi - 2.4GHz/5GHZ)
• Built in Bluetooth
• H.265/HEVC Video Codec, Resists up to 30% Video Packet Loss
• Supports Collaboration Features (Interoperable with Whiteboard and Annotation on Content Sharing)
• Compatible with Touchscreen
• All in One Design - Easy to Mount on the TV

Technical Specifications:

Ultra HD 4K Camera

• 1920 x 1080 Video Resolution
• 30 Frame Rate
• 4x e-PTZ Camera
• Horizontal Field of View - 103°

Microphone

• Built in Six Beamforming Microphone Arrays
• 16ft / 5 Metres Voice Pickup Distance
• Wireless Microphone (Optional - Not Included)
• CP960 Conference Phone(Optional - Not Included)

Video Standard and Network Suitability

• Video Codecs - H.265/HEVC, H.264 High Profile, H.264, H.263, H.263+
• Forward Error Correction (FEC)
• Anti 30% Video Packet Loss
• Bandwidth Dynamic Adaptive Adjustment
• Shared Content and Audio Preference Strategy
• Bandwidth/Protocol/Audio & Video Call Auto Adaptive

Audio Features:

Audio Codecs

• Opus, 8~48kHz Sampling Rate
• 14kHz Bandwidth with G.722.1C
• 7kHz Bandwidth with G.722.1
• 3.4kHz Bandwidth with G.711 (PCMA/PCMU)
• G.729
• ARES

Audio Technology

• Acoustic Echo Cancellation
• Automatic Gain Control
• Yealink Noise Proof Technology
• CNG, PLC, AJB, De-Rerb

Operating System

• Based on Android 7.1

Call Features

• 1080P30 People + 1080P30 Content Sharing Video Quality
• Video Layout - Picture-in-Picture (PIP)
• Video / Audio Recording and Playback
• Screenshots in USB Flash Drive or Local Storage
• Group Dial
• YMS Meeting Control - Invite / Remove, Mute / Unmute Participants, Lock
• DND (Do not Disturb), Call Statistics
• Auto Answer, Mute, Call Waiting
• Virtual Keyboard
• Local Directory - 500 Entries
• Call History - All / Missed / Received / Dialed
• LDAP Phonebook
• Multi-Language Support
• Additional Five Way Audio Call

Standard Communication Protocol

• H.323 / SIP
• Dual Stream Protocol - H.239 (H.323) / BFCP (SIP)
• FECC - H.224/H.281, Sony VISCA and PELCO D/P
• H.323 Protocol Suite - H.245, H.225, H.235, H.241
• Gatekeeper Account and SIP Account

Network and Security Features

• Built in Dual Band Wi-Fi - 2.4GHz / 5GHz - Connect to a Wi-Fi Network, Serve as a Wi-Fi Hotspot
• Built in Bluetooth
• IPv4 and IPv6, DHCP / Static IP
• HTTP / HTTPS Web Server
• RS232/HTTP API for Control System Integration
• SRTP/TLS, AES 256-bit Encryption
• QoS - 802.1p/q, Diff-Serv
• VLAN, IEEE802.1X, LLDP-MED
• Anti-Attack
• Network Diagnosis - Ping, Trace Route
• Time and Date Synchronization Using SNTP
• Built-in Certificate

NAT and Firewall Traversal

• ICE / TURN / STUN
• H.460
• NAT (Manual / Auto Mode)
• Yealink Intelligent Firewall Traversal
• Open VPN

Configuration Management

• Configuration via Browser/ Display / Auto-Provisioning
• Virtual Remote Control
• Firmware Upgrading, Factory Resetting
• Export or Import Configuration
• System Log Exporting

VC200 Codec Connections

• 1 x HDMI Output (CEC Supported)
• 1 x Yealink Extension Port (RJ-45) Connect to VCH50/CP960 Phone
• 1 x 10/100M Ethernet Port
• Power over Ethernet (IEEE 802.3af)
• 2 x USB 2.0
• 1 x Line-Out (3.5mm)
• 1 x Security Lock Slot
• 1 x Reset Slot

Package Contents

• Yealink VC200 Codec - Integrate Codec / Camera / Microphone / Bracket
• VRC11 Remote Control
• PoE Adapter
