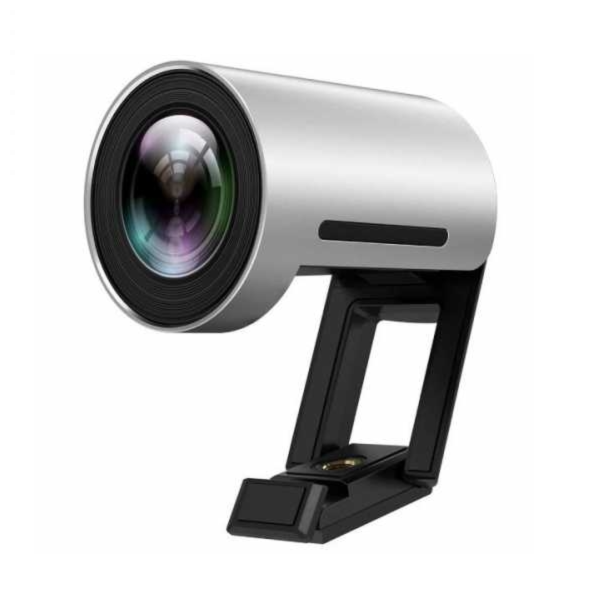

Yealink UVC30 Room 4K USB Camera

Yealink UVC30 Room 4K USB Camera

Smart Framing 4K USB Camera for Meeting Rooms

The Yealink UVC30 4K USB Camera is an Ultra HD Camera, ideal for Small Meeting Rooms and Huddle Rooms. Based on standard UVC protocol the UVC30 Camera works with most UC Platforms including Microsoft Teams, Skype for Business, Zoom and more. UVC30 offers sharp image and accurate colour reproduction and offers users a vivid face to face video meeting experience in Ultra HD 4K Resolution and High Frame Rates. The Wide Field of View ensures everyone is visible during the meeting. Based on Facial Recognition the UVC30 supports Auto Framing Feature to accomplish a much more intelligent meeting experience, a flexible clip provides multiple mounting options.

Key Features:

Superb Image Quality

• UVC30 Room not only delivers the best class image quality with natural colour reproduction, but also the smooth video and details endeavoring to optimise the meeting experience for users. UVC30 Room also supports multiple resolutions including 4K/30fps, 1080P/60fps and 720P/60fps to adapt to different displays and applications

Smooth and Precise Auto Framing, API for Data Analysis

• Based on Face Detection, UVC30 Room is capable of performing auto-framing - to frame people in the room smoothly and precisely, bringing a more intelligent meeting experience for users. With API developed, statistic data of people in meeting rooms is accessible for further analyzing

Ultra Expansive Field of View

• With a large 120° field of view, everyone sitting in the room can be seen without needing to be positioned, ideal for small meeting rooms amd huddle rooms

Easier and Smooth PTZ Control

• Certified by Microsoft and Zoom, hw UVC30 Room can achieve an easier and smooth PTZ control on touch console via Yealink RoomConnect and Zoom Rooms Camera Control. It can work with all Microsoft Teams Room Systems and Zoom Room Systems as a USB Camera

Multiple Mounting Options

• With a retractable clip, the UVC30 Room can be mounted wherever it works best, whether its on top of the monitor, under the monitor, on top of a TV, on a Tripod or TV Stand or even on the wall

Features

• Premium 4K USB Camera
• Superb Image Quality
• Ultra Expansive 120° Field of View
• Multiple Mounting Options
• Ultilises Face Recognition Technology

Specifications

• Positioning - Small Rooms and Huddle Rooms
• Camera - 1/2.5” CMOS, 8.51M Pixel
• UVC Protocol - UVC1.1
• USB Cable - 1 x 3m USB 2.0
• Depth of View (Metre) - 1m-5m
• Field of View (Diagonal) - 120°
• Auto Framing
• PTZ - EPTZ
• Zoom - 3x Digital
• Video Output - 4K/30fps, 1080P/60fps and 720P/60fps
• Maximum Resolution - 4K
• Maximum FPS 60fps
• Wide Dynamic Range
• Auto Exposure
• White Balance (WB) - ATW/Auto/Manual
• Shutter Speed - 1/60 ~ 1/10000 Seconds
• Signal Noise Ratio (SNR) - 63dB
• LED Indicator
• Effective Focus Length - f=2.22mm
• Aperture (F#) - F/2.4
• Min Illumination - 0.5 lux (In Daylight), 0.1 lux (at Night)
• Dimensions - 59 mm x φ45 mm
• System Requirements - ;Windows7, Windows10, Mac OS 10.10 or Higher
• Certification - Microsoft Teams Rooms & Zoom Rooms

Package Contents

• Yealink UVC30 Camera - Room Version
• Camera Lens Privacy Cover
• Mounting Bracket and Accessories
• Screwdriver
• UVC30 Room Quick Start Guide
