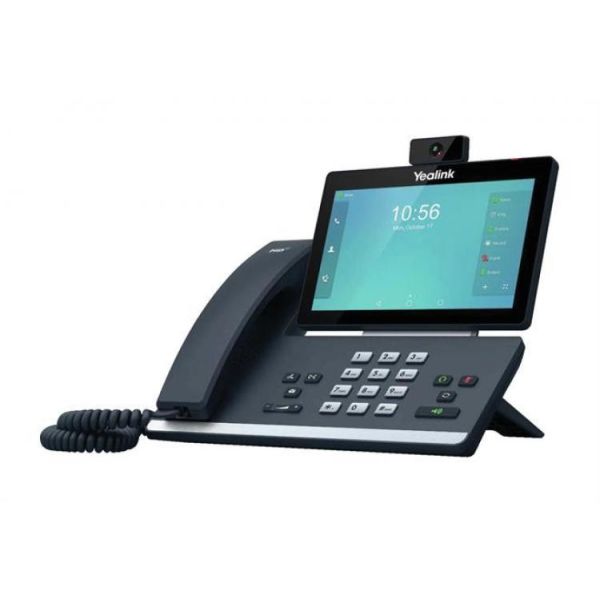

Yealink T58V Smart Media SIP Video Phone

The Yealink SIP-T58V Smart Media SIP Phone is a simple-to-use smart media phone that provides an enriched HD audio and video calling experience for business professionals. The T58V enables productivity-enhancing visual communication with the ease of a standard phone.

Based on Android 5.1.1 operating system, the SIP-T58 series features a seven-inch adjustable multi-point touch screen, integrated Wi-Fi and Bluetooth 4.0+ EDR, and it is coupled with a built-in web browser, calendar, recorder and more, which also support the installation of third-party applications for business customization.

More than that, you can easily turn your SIP-T58V smart media phone into a video phone ready with an optional removable two-megapixel HD camera CAM50.

The Yealink T58V Smart Media SIP Phone strikes and exquisite balance between simplicity and sophistication, offering an all in one communication solution for today's executives, teleworkers and business managers.

Audio Features

• HD Voice - HD Handset, HD Speaker
• Hearing Aid Compatible (HAC) Handset
• Audio Codec - Opus, G.722, G.722.1,G.722.1C, G.711 (A/μ), G.723, G.726, G.729AB, iLBC
• DTMF - In-Band, Out-of- Band (RFC 2833) and SIP Info
• Full Duplex Handsfree Speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Video Features

• 720p@30fps - HD Video Call
• Video Codec - H.264 High Profile, H.264, VP8
• Yealink Cam50 Camera - 2 Mega Pixel, Plug and Play, Adjustable, With Privacy Shutter and LED Indicator
• Vertical Tilt Angle Adjustable - 50°
• Field of View (FOV) - 70.2°
• Self View (Local Video Preview)

Features

• 7 Inch (1024 x 600) Capacitive Adjustable Touch Screen
• 720p30 HD Video
• Runs Android 5.1.1
• Wall Mountable
• Up to 5 Party Video/Audio Mixed Conferencing
• Up to 3 Party Video Conferencing
• Up to 16 VoIP Accounts
• Opus Codec Support
• USB 2.0 Port (2.0 Compliant) for USB Headset, Media and Storage Applications
• Built n Wi-Fi (802.11b/g/n)
• Built in Bluetooth 4.0+ for Headsets and Pairing Mobile Devices

Phone Features

• 16 VoIP Accounts
• Call Hold, Call Forward
• Call Waiitng, Call Transfer
• One Touch Speed Dial, Hotline
• Mute, DND
• Data Import Via Bluetooth, Email Etc
• Five Party Audio/Video Mixed Conferencing
• Three Party Audio Conferencing
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Dial Plan, Action URL/URI
• Set Date Time Manually or Automatically
• Ring Tone Select, Import, Delete
• Direct IP Call Without SIP Proxy
• Redial, Call Return Auto Answer
• Group Listening, Emergency Call

 Display and Indicator

• LCD Screen
• Third Party Android Application Support
• Screensaver and Wallpaper
• 5 Points Multi-Touch Surface
• 7” 1024 x 600 Capacitive Adjustable Touch Screen - Vertical Tilt Angle Adjustable: 48°
• LED for Call and Message Waiting Indication
• Intuitive User Interface with Icons and Soft Keys
• Caller ID with Name, Number and Photo - Android Bundled Applications
• FileManager/Email/Calendar/Gallery/Recorder/Calculator/Browser/Message

IP-PBX Features

• Busy Lamp Field (BLF)
• Bridged Line Appearance (BLA)
• Anonymous Call, Anonymous Call Rejection
• Call Completion, Call Recording
• Voicemail, Call Park, Call Pickup, Music on Hold
• Message Wating Indicator (MWI)
• Remote Office, Intercom, Paging, Hot Desking

Directory

• Local Phonebook -  Up to 1000 Entries
• Call History - Dialled, Missed , Received, Forwarded
• Phonebook Search, Import, Export
• Smart Dialing
• XML/LDAP Remote Phonebook
• Black List

Feature Keys

• 27 One Touch DSS Keys
• 8 Feature Keys - Hold, Transfer, Message, Redial, Mute, Speakerphone, Volume
• Illuminated Mute, Headset, Handsfree Speakerphone Key

Interface

• Dual Port Ethernet
• Built in Wi-Fi (2.4GHz, 802.11b/g/n)
• Built-in Bluetooth 4.0+ EDR for - Bluetooth Headsets, Pairing Mobile Devices
• 1 x USB 2.0 Port (On Top of the Phone for - Yealink CAM50 Camera
• 1 x USB 2.0 Port (On the Rear of the Phone for - USB Flash Drive, Wired/Wireless USB Headset or Colour Screen Expansion Module
• 1 x Security Lock Port
• 1 x RJ11 (4P4C) Handset Port
• 1 x RJ11 (4P4C) Headset Port
• Supports up to 3 Colour Screen Expansion Modules

Network and Security

• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call Server Redundancy Supported
• OpenVPN, IEEE802.1X
• Digest Authentication Using MD5/MD5-sess
• Adb Encryption Authenticated
• AES Encryption for Configuration File
• HTTPS Certificate Manager
• Transport Layer Security (TLS)
• SRTP
• QoS - 802.1p/Q Tagging (VLAN), Layer 3 ToS DSCP
• UDP/TCP/DNS-SRV (RFC 3263)
• Time and Date Synchronisation Using SNTP
• HTTP/HTTPS Web Server
• Proxy Mode and Peer-to-Peer SIP Link Mode

In the Box

• Yealink T58V Smart Media SIP Phone
• Handset with Handset Cord
• Ethernet Cable (2m CAT5E FTY
• Stand
• Yealink CAM50 Camera
• Quick Start Guide
