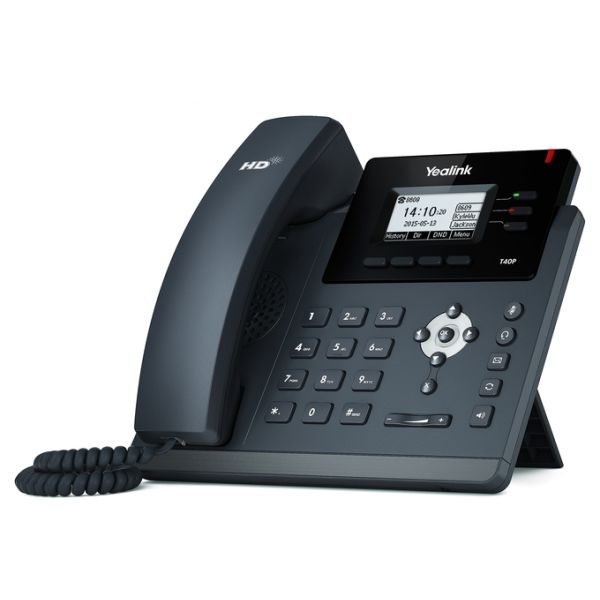

Yealink T40P 3 Line IP Phone

The newest addition to the Yealink T4 series, the T40P offers an affordable yet feature-rich IP phone. Delivering superb audio quality as well as a rich visual experience the T40P is ideal for business users.

This entry level IP phone comes complete with 3 line keys with dual-colour illuminated LEDs for line status information. The T40P supports a vast range of features such as SCA, BLF List, call forward, call transfer and 3-way conference calling. There are also 5 useful feature keys for message, headset, mute, redial and hands-free speakerphone.

Key Features:

• Up to 3 SIP accounts
• 2.3" 132x64-pixel graphical LCD with backlight
• Local phone book up to 1000 entries (search/import/export features)
• Intuitive user interface with icons and soft keys
• 3 line keys with dual-colour illuminated LEDs for line status information
• 3-way conference call
• PoE support or PSU (optional)
• 2xRJ45 10/100M Ethernet port
• Integrated stand with 2 adjustable angles
• RJ9 Headset port compatible with a range of corded headsets
• EHS headset support
• Wall mountable

Revolutionary new design

Yealink's SIP Phones continue to evolve, the T4 Series have been designed by pursuing ease of use in even the tiniest details, these new design include paper label free design, new foot stand allows two positions for the device, non-slip rubber feet, ergonomic recessed buttons etc.

HD Audio

Yealink Optima HD Voice refers to the combination of software and hardware design as well as the implementation of wideband technology to maximizes the acoustic performance. Coupled with advanced acoustic clarity technology such as full duplex, echo cancellation, adaptive jitter buffer etc. Creating an amazing face-to-face live experience.

Enhanced Call Management

The SIP-T40P supports vast productivity-enhancing feature such as SCA, BLF List, call forward, call transfer, 3-way conference, 3 paperless Dsskeys. Support Yealink YHS32, and with EHS36 user can control phone through wireless headset.

Efficient Installation and Provisioning

Integrated IEEE 802.3af Power-over-Ethernet allows easy deployment with centralized powering and backup.The SIP-T40P support the FTP, TFTP, HTTP, and HTTPS protocols for file provisioning and are configured by default to use Trivial File Transfer Protocol (TFTP), supports AES encrypted XML configuration file

Highly secure transport and interoperability

The Communicator uses SIP over Transport Layer Security (TLS/SSL) to provide service providers the latest technology for enhanced network security. The range is certified compatible with 3CX, Asterisk and BroadSoft Broadworks, ensuring excellent compatibility with leading soft switch suppliers.

Audio Features

• HD voice: HD handset, HD speaker
• Wideband codec: G.722
• Narrowband codec: G.711(A/?), G.729AB, G.726
• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 3 VoIP accounts
• One-touch speed dial, redial
• Call forward, call waiting
• Call transfer, call hold
• Call return, group listening, SMS
• Mute, auto answer, DND
• 3-way conference call
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Hotline, emergency call
• Set date time manually or automatically
• Dial Plan
• XML Browser
• Action URL/URI
• RTCP-XR ?RFC3611?,VQ-RTCPXR?RFC6035)

Directory

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF)
• Bridged Line Appearance(BLA)
• Anonymous call, anonymous call rejection
• Hot-desking
• Message Waiting Indicator (MWI)
• Voice mail
• Call park, call pickup
• Intercom, paging
• Music on hold
• Call recording

Display and Indicator

• 2.3" 132x64-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Intuitive user interface with icons and soft keys
• National language selection
• Caller ID with name, number

Feature keys

• line keys with LED
• 5 features keys: message, headset, mute, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• 2 volume control keys
• Mute key
• Headset key
• Hands-free speakerphone key

Interface

• 2xRJ45 10/100M Ethernet ports
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
• 1XRJ12 (6P6C) EHS port
• Power over Ethernet (IEEE 802.3af), Class 2

Other Physical Features

• Stand with 2 adjustable angles
• Wall mountable
• External universal AC adapter (optional)?AC 100~240V input and DC 5V/600mA output
• Power consumption (PSU): 1.05-3.23W
• Power consumption (PoE): 1.7-3.2W
• Dimension(W*D*H*T): 212mm*189mm*175mm*54mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C

Package Features

• Qty/CTN: 5 PCS
• N.W/CTN: 5.7 kg
• G.W/CTN: 6.4 kg
• Giftbox size: 246mm*223mm*120mm
• Carton Meas: 620mm*256mm*233mm

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• BroadSoft device management
• Zero-sp-touch TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT transverse: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
• IPv6
