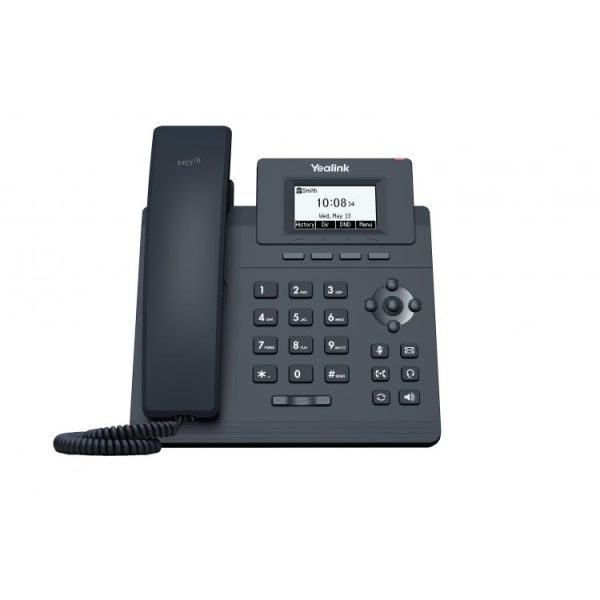

Yealink T30P Entry Level IP Phone

This Product is End of Life

Please Click Here for the Replacement Product - Yealink T31P IP Phone

Yealink T30P | Entry Level IP Phone

5 Way Local Conferencing | Yealink HD Voice | Unified Firmware | Opus | EHS | Device Management | PoE Support | No Power Supply Included | 10/100 Mbps | 1 Line

The T30P is a classic IP Phone for small business users, the SIP-T30P delivers a fashionable and user friendly dialing experience. The generously large 132 x 64 Pixel Graphical LCD guaranteed easier access to much more visual information at a glance. Dual 10/100 Mbps Network Ports with Integrated PoE makes the SIP-T30P an ideal choice for extended network use. The SIP-T30p offers support for single VoIP Accounts and includes 5 Way Local Conferencing. It includes EHS35 Support for Yealink Wireless Headsets plus Adjustable Multi-Angle Stand Support.

Strong Performance | More Possibilities

The Yealink T3 Series are equipped with powerful chip, owning a stronger computing ability and more upgraded functions, which ensure higher productivity and a smoother office experience. The T3 Series is capable of extending more services for different business demands due to its great performance.

Superior Audio | Better Communication

The Yealink T3 Series provides distraction free communications with industry leading Smart Noise Filtering Technology, which delivers excellent sound quality without extraneous noises and allows fluent conversations.

Classic Design

Designed by Yealink Original Team, the T3 Series inherits the design concept of Yealink IP Phone Family. The advanced design including modern appearance and ergonomic details enables an easier and friendly operation experience to its users.

All in One Platform | Convenient Management

With proven reliability and integrations for Yealink Device Management Platform, installed the Unified Firmware, the T3 Series is simple to deploy and manage, which allows a significant reduction in maintenance and operation costs.

Features

• Yealink HD Voice
• 2.3 Inch - 132 x 64 Pixel Graphical LCD
• Two Port 10/100M Ethernet Switch
• PoE Support
• Opus Codec Support
• One SIP Account
• Local 5-Way Conferencing
• Support EHS Wireless Headset
• Unified Firmware
• Support YDMP/YMCS
• Stand with 2 Adjustable Angles
• Wall Mountable

Audio Features

• HD Voice, HD Handset, HD Speaker
• Smart Noise Filtering
• Wideband Codec - Opus G.722
• Narrowband Codec - G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO
• Full Duplex Handsfree Speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• One VoIP Account
• Call Hold, Mute, DND
• One Touch Speed Dial, Hotline
• Call Forward, Call Wating, Call Transfer
• Group Listening, SMS, Emergency Call
• Redial, Call Return, Auto Answer
• Local 5-Way Conferencing
• Direct IP Call without SIP Proxy
• Ringtone Selection/Import/Delete
• Set Date/Time Manually or Automatically
• Dial Plan
• XML Browser, Action URL/URI
• Integrated Screen Shots
• RTCP-XR, VQ-RTCPXR
• Enhanced DSS Key

Directory

• Local Phonebook up to 1000 Entries
• Blacklist
• XML/LDAP Remote Phonebook
• Smart Dialing
• Phonebook Search/Import/Export
• Call History - Dialed/Received/Missed/Forwarded

IP-PBX Features

• Anonymous Call, Anonymous Call Rejection
• Hot-Desking, Voicemail
• Flexible Seating
• Call Park, Call Pickup
• Executive and Assistant
• Centralized Call Recording
• Visual Voicemail
• Call Recording

Display and Indicator

• 2.3 Inch 132 x 64 Pixel Graphical LCD
• LED for Call and Message Waiting Indication
• Intuitive User Interface with Icons and Soft Keys
• Multilingual User Interface
• Caller ID with Name and Number
• Power Saving

Feature Keys

• 6 Feature Keys - Transfer, Message, Headset, Redial, Mute, Handsfree Speakerphone
• 5 Navigation Keys
• Volume Control Keys

Interface

• 2 x RJ45 10/100M Ethernet Ports
• Power over Ethernet (IEEE 802.3af), Class 2
• 1 x RJ9 (4P4C) Handset Port
• 1 x RJ9 (4P4C) Headset Port

Management

• Configuration - Browser/Phone/Auto-Provision
• Auto Provision via FTP/TFTP/HTTP/HTTPS for Mass Deploy
• Auto Provision with PnP
• Zero-sp-Touch, TR-069
• Phone Lock for Personal Privacy Protection
• Reset to Factory, Reboot
• Package Tracing Export, System Log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call Server Redundancy Supported
• NAT Traversal - STUN Mode
• Proxy Mode and Peer-to-Peer SIP Link Mode
• IP Assignment - Static/DHCP
• HTTP/HTTPS Web Server
• Time and Date Synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS - 802.1p/Q Tagging (VLAN), Layer 3 ToS DSCP
• SRTP for Voice
• Transport Layer Security (TLS)
• HTTPS Certificate Manager
• AES Encryption for Configuration File
• Digest Authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE

Yealink T30P | Entry Level IP Phone Package Contents

• Yealink SIP-T30P IP Phone
• Handset with Handset Cord
• Ethernet Cable (1.5m CAT5E UTP Cable)
• Stand
• Quick Start Guide
