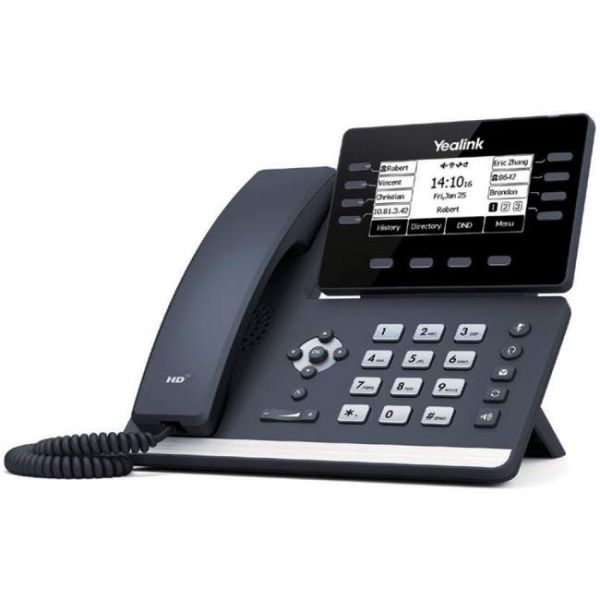

Yealink SIP-T53W Prime Business Phone

About the Yealink SIP-T53W Prime Business Phone

The Yealink SIP-T53W Prime Business Phone is for today’s highly active voice communication users, by providing them with advanced telephony features, next-generation HD communication experience and great flexibility. The phones provide Businesses of all sizes high quality, a future-proof and unparalleled solution that will unleash the power of remote communication and collaboration and eventually improve productivity.

Designed specifically for busy executives and professionals, the Yealink SIP-T53W is an easy to use Prime Business Phone with an adjustable 3.7 inch Graphical LCD that allows users to find a comfortable viewing angle easily, dependent on personal and environmental needs.

With built in Bluetooth 4.2 and the built in dual band 2.4G/5G Wi-Fi, the SIP-T53W Phone ensures modern wireless technology is kept up to date. The built in USB 2.0 Port allows for USB recording or a direct Wired or Wireless USB Headset or up to Three Yealink EXP50 Expansion Modules to be connected. Benefiting from these features the Yealink SIP-T53W is a powerful and expandable office phone, delivering optimum desktop productivity.

Key Features and Benefits:

User Friendly

The Yealink SIP-T53W features an adjustable 3.7 Inch Graphical LCD that enables users to adjust to a comfortable viewing angle, dependent on personal needs. Coupled with the latest version of Yealink Optimal HD Voice Technology, including Yealink Acoustic Shield Technology that eliminates background noises and distractions, whilst delivering crystal clear sound, even in a noisy environment. Its HAC Handset ensures that a person with hearing loss hears more clearly and complies with the latest Hearing Aid Compatibility (HAC) Regulations.

Wireless Transmission

The Yealink SIP-T53W Phone not only has built in Bluetooth 4.2 for Bluetooth Headsets and mobile contact synchronisation, it also has built in Dual Band Wi-Fi for Wi-Fi connectivity, allowing users to access the 5G Wi-Fi Connectivity easily. Busy environments can expand or share one phone system with their team by adding multiple handsets, just simply turn your IP Phone to the Corded-Cordless Phone via DECT Technology (Yealink DD10K DECT USB Dongle). Moreover, the IP Phone can function with Yealink VC Desktop together to share content from your laptop, making collaboration much easier than before (The related firmware of Yealink VCD is version 28 which will be released in March, 2019)

High Expandability

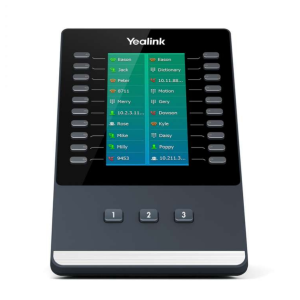

A built in USB 2.0 Port allows users to enjoy USB call recording via USB flash drive. Wired or Wireless USB Headsets can also be connected to the USB 2.0 Port without the need for the Yealink EHS36, and up to three Yealink EXP50 Expansion Modules that can be programmed with up to 180 paperless DSS keys can be connected.

Efficient Installation and Provisioning

The SIP-T53W supports efficient provisioning and effortless mass deployment with Yealinks Redirection and Provisioning Service (RPS) and Boot Mechanism to help users realise the Zero Touch Provisioning without any complex manual settings.

Features

• 3.7 Inch - 360 x 160 Pixel Graphical LCD with Backlight
• Adjustable LCD Screen
• Built in Bluetooth 4.2
• Built in Dual Band 2.4G/5G Wi-Fi - (802.11a/b/g/n/ac)
• USB 2.0 Port for USB Recording, Wired/Wireless USB Headsets and Yealink EXP50 Expansion Module
• Up to 12 VoIP Accounts
• Dual-Port Gigabit Ethernet
• PoE Support
• HAC Handset
• Paperless Label Design
• Wall Mountable
• Supports DECT Handset Compatibility via DECT Dongle Yealink DD10K, up to 4 Cordless Handsets

Audio Features

• HD Speaker, HD Voice, HD Handset
• Hearing Aid Compatible (HAC) Handset
• Acoustic Shield
• VAD, CNG, AEC, PLC, AJB, AGC
• Full Duplex Handsfree Speakerphone with AEC
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO
• Audio Codec - Opus, G.722, PCMA, PCMU, G.729A/B, G.726, G.723.1, iLBC

Phone Features

• 12 VoIP Accounts
• Call Hold, Mute, DND, Redial, Call Return, Auto Answer
• One Touch Speed Dial, Call Forward, Call Waiting, Call Transfer
• Group Listening, Hotline, SMS, Emergency Call
• 3 Way Conferencing
• Direct IP Call without SIP Proxy
• Ringtone Selection/Import/Delete
• Set Date, Time Manually or Automatically
• Dial Plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Built in Dual Band Wi-Fi - Network Standard - IEEE802.11a/b/g/n/ac, Transmission Rate - Up to 433Mbps (dynamic), Frequency Range - 2.4GHz/5.0GHz
• Built in Bluetooth 4.2 for - Bluetooth Headsets, Contact Synchronisation, Bluetooth Call
• USB Port (2.0 Compliant) for - Wired/Wireless USB Headsets, USB Call Recording Through USB Flash Drive, Expansion Module EXP50 (Up to 3)
• Content Sharing (Via Yealink VCD) - (The Related Firmware of Yealink VCD is Version 28 Which will be Released in March, 2019)
• Enhanced DSS Key

Directory

• Local Phonebook up to 1000 Entries
• Call History - Dialed/Received/Missed/Forwarded
• Phonebook - Search/Import/Export
• Smart Dialing
• XML/LDAP Remote Phonebook
• Black List

Corded-Cordless Phone (Via DECT Dongle DD10K)

• Up to 4 DECT Cordless Handsets
• Up to 4 Concurrent Calls
• Support for Yealink W52H/W53H/W56H/DD Phone
• Slave Handset for Master Deskset

IP-PBX Features

• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)
• Anonymous Call, Anonymous Call Rejection
• Hot Desking, Voicemail
• Flexible Seating, Executive and Assistant
• Call Park, Call Pickup
• Centralised Call Recording, Call Recording

Display and Indicator

• 3.7 Inch 360 x 160 Pixel Graphical LCD with Backlight
• LED for Call and Message Waiting Indication
• Dual Colour (Red or Green) illuminated LED's for Line Status Information
• Intuitive User Interface with Icons and Soft Keys
• Multilingual User Interface
• Caller ID with Name and Number
• Power Saving

Feature Keys

• 8 Line Keys with LED
• 8 Line Keys can be Programmed up to 21 Various Features (3 Page View)
• 5 Feature Keys - Mute, Headset, Message, Redial, Hands-Free Speakerphone
• 4 Context Sensitive Soft Keys
• 6 Navigation Keys
• Volume Control Keys
• Illuminated Mute/Headset/Hands-Free Speakerphone Key

Interface

• Dual Port Gigabit Ethernet
• Power Over Ethernet (IEEE 802.3af), Class 2
• 1 x USB Port (2.0 Compliant)
• 1 x RJ9 (4P4C) Handset Port
• 1 x RJ9 (4P4C) Headset Port

Management

• Configuration - Browser/Phone/Auto-Provision
• Auto Provision Via FTP/TFTP/HTTP/HTTPS for Mass Deploy
• Auto Provision with PnP
• Broadsoft Device Management
• Zero-sp-Touch, TR-069
• Phone Lock for Personal Privacy Protection
• Reset to Factory, Reboot
• Package Tracing Export, System Log

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call Server Redundancy Supported
• NAT Traversal - Stun Mode
• Proxy Mode and Peer to Peer SIP Link Mode
• IP Assignment - Static/DHCP/PPPoE
• HTTP/HTTPS Web Server
• Time and Date Synchronisation Using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS - 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for Voice
• Transport Layer Security (TLS1.2)
• HTTPS Certificate Manager
• AES Encryption for Configuration File
• Digest Authentication
• Open VPN, IEEE802.1X
• IPv6. LLDP/CDP/DHCP VLAN, ICE

Package Contents

• Yealink SIP-T53W Phone
• Handset with Handset Cord
• Ethernet Cable
• Stand
• Quick Start Guide
