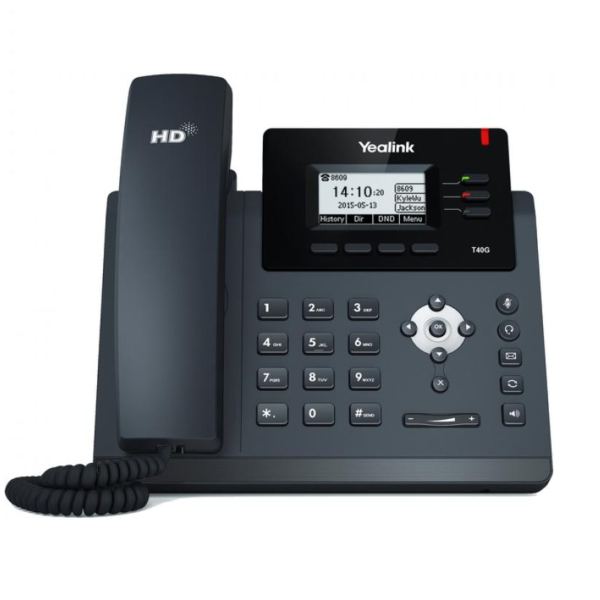

Yealink SIP-T40G IP Phone

The SIP-T40G Phone has been designed to meet the needs of modern office users who require the best in terms of functionality, style, and reliability. Its Dual Port Gigabit Ethernet feature provides fast, reliable connectivity, whilst the intuitive interface ensures that users can navigate the phone with ease.

About the IP Phone

The Yealink T40G is packed with features that enhance communication, including BLF's, HD Voice, 3 Way Conferencing, and a Handsfree Speakerphone. These features make it the perfect choice for professionals who need to collaborate with colleagues or participate in conference calls.

Supports Corded & Cordless Headsets

The T40G supports the use of both Corded and Cordless Headsets, as well as EHS (Electronic Hook Switch). This allows users to choose the Headset that best suits their needs.

Easy to Use and Maintain

With simple, flexible, and secure provisioning, the T40G is easy to set up and maintain. It utilises industry standard encryption protocols to ensure that users can provision and perform software upgrades both in house and remotely, without compromising on security.

The SIP-T40G Phone is an excellent choice for professionals who require the best in terms of functionality, reliability, and ease of use. Its range of features, intuitive interface, and flexible design make it an adaptable communication device that meets the needs of even the most demanding of users.

Features

• Stand with 2 Adjustable Angles
• Wall Mountable
• Dimensions - 212mm x 189mm x 175mm x 54mm (W x D X H x T)
• 3 VoIP Accounts
• Dual Port Gigabit Ethernet
• 132 x 64 Pixel Graphical LCD with Backlight

Audio Features

• HD Voice, HD Handset, HD Speaker
• Wideband Codec - Opus, G722
• Full Duplex Hands Free Speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
• Narrowband Codec: G.711(A/μ), G.729AB, G.726
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO

Phone Features

• Enhanced DSS Key
• 3 VoIP Accounts
• One Touch Speed Dial, Redial
• Call Forward, Call Waiting
• Call Hold, Call Transfer
• Group Listening, SMS, Call Return
• Mute, Auto Answer, DND
• 3 Way Conference Call
• Direct IP Call Without SIP Proxy
• Ringtone Selection/Import/Delete
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Action URL/URI
• XML Browse
• Dial Plan
• Set Date & Time Automatically or Manually
• Hotline, Emergency Call

Feature Keys

• 3 Line Keys with LED
• Handsfree Speakerphone Key
• Headset Key
• Mute Key
• 2 Volume Control Keys
• 6 Navigation Keys
• 4 Context Sensitive Soft Keys
• 5 Feature Keys - Message, Handsfree Speakerphone, Mute, Redial, Headset

IP-PBX Features

• Visual Voicemail
• Centralised Call Recording
• Executive Assistant
• Call Recording
• Flexible Seating
• Intercom, Music on Hold, Paging
• Call Pickup, Call Park
• Message Waiting Indicator (MWI)
• Hot Desking, Voicemail
• Anonymous Call, Anonymous Call Rejection
• Bridged Line Appearance (BLA)
• Busy Lamp Field (BLF)

Directory

• Smart Dialing
• Local Phonebook Up to 1000 Entries
• Black List
• XML/LDAP Remote Phonebook
• Phonebook Search/Import/Export
• Call History - Dialed/Missed/Received/Forwarded

Display and Indicator

• Power Saving
• Caller ID with Name and Number
• Multilingual User Interface
• Intuituve User Interface with Icons and Soft Keys
• Dual Colour (Green & Red) Illuminated LED`s for Line Status Information
• LED for Call and Message Waiting Indication
• 2.3” 132x64-Pixel Graphical LCD with Backlight

Interface

•  Dual Port Gigabit Ethernet
• 2 x RJ45 10/100M Ethernet Ports
• 1 x RJ11 (4P4C Handset/Headset Port
• 1 x RJ12 (6P6C Headset Port
• Power Over Ethernet (IEEE 802.3af), Class 2

Network and Security

• IPv6
• LLDP/CDP/DHCP VLAN
• ICE
• SIP v1 (RFC2543), v2 (RFC3261)
• Call Server Redundancy Supported
• NAT Traversal - STUN Mode
• Proxy Mode and Peer to Peer SIP Link Mode
• IP Assignment - Static/DHCP
• HTTP/HTTPS Web Server
• Time and Date Synchronization Using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• SRTP for Voice
• Transport Security Layer (TLS)
• HTTPS Certificate Manager
• OpenVPN, IEEE802.1X
• Digest authentication using MD5/MD5-sess
• QoS: 802.1p/Q Tagging (VLAN), Layer 3 ToS DSCP

Package Contents

• Yealink T40G IP Phone
• Handset with Handset Cord
• Ethernet Cable
• Stand
• Quick Start Guide

_{**Please Note that Refurbished Contents May Vary from the Above**}
