Yealink MVC500-Wired - Microsoft Teams Small Room Video Conferencing System

Yealink MVC500-Wired - Microsoft Teams Small Room Video Conferencing System

The Yealink MVC500 is a Microsoft Teams Room System for Small Rooms - Designed for Meetings with Up to 6-12 People

Delivering a Vivid Face to Face Video Conference Experience - Easier for Everyone to be Heard and Involved in the Meeting

Yealink MVC Series are the brand new Video Conferencing Systems released by Yealink, that revolutionise the Microsoft Teams Rooms Meeting Experience. Perfectly integrated with Microsoft Teams Rooms and Yealink Cutting edge Audio and Video solutions. The Yealink MVC Series is deemed to cover all the usage scenarios and provide users with excellent meeting experience in any Conference Room.

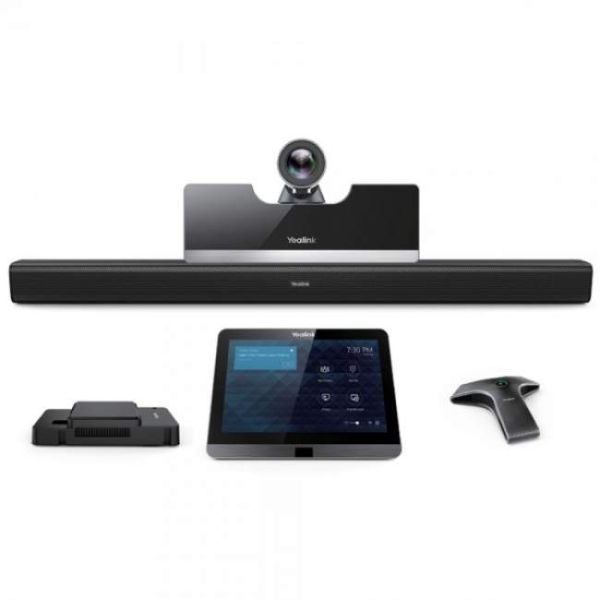

The MVC500 consists of the Touch Console, Content Sharing Unit, Audio and Video Peripherals and Mini PC, the MVC Series enhances the whole meeting experience with the familiar Microsoft Teams Rooms Interface and a close to zero learning curve, allowing anyone to just to simply walk into the Conference Room and start a meeting, with one touch join, or type names and launch an ad hoc call. The Yealink MVC500-Wired includes one VCM34 Wired Array Microphone, and each MVC500 can connect up to four units and a powerful pan tilt Zoom Camera with 5x Optical Zoom, to cover a Small Conference Room.

Key Features and Benefits:

Easy to Start and Manage Meetings

The familiar Microsoft Teams Rooms interface and functionality makes it easy for everyone as well as saving time by being able to join meetings faster. The Yealink Plug in Software means no Remote Control, users can use the USB PTZ Camera on the Touch Console directly via its software.

Premium Audio and Video Meeting Experience

The UVC50 is Yealinks next generation camera that supports 1080P/60FPS video calls making your business discussions lifelike and interactive. Its Premium Voice Quality is combined with Yealink Audio Algorithm and is equipped with Two Microphones that support 360° Voice Pickup range at a radius of upto 10ft and a Speaker that is capable of producing louder output - up to 40W. Yealink Noise Proof Technology effectively eliminates background distractions and noises, ensuring a crystal clear voice, even in a noisy environment.

Flexible and Simple

This solution provides users with an individual touch console that separates from the mini-PC, not only making the deployment more flexible but also rewarding you a tidy and smart conference table.

Easily Managed Through Yealink Device Management Platform

This solution supports Yealink Device Management Platform/Cloud Service, flawlessly manage, monitor, configure, update and diagnose all Yealink Audio and Video Devices Peripherals on this platform remotely.

Key Benefits

• The 5x Optical Camera Delivers Sharp, Smooth and Stable Video with a Deep Focus Field, Whilst the 83 Degree Wide Angle Horizontal Field of View Lens and Adjustable Camera Angle Provide a Broad View
• The Ability to Connect up to Four Wireless Microphones Allows Users to Flexibly Cover Conference Rooms of up to 850 Square Feet (80 Square Metres) in Size
• The MVC500 Offers Instant Wireless Content Sharing Without Clutter. The Powerful Screen Share Adapter MShare Integrates HDMI and Mini-DP Input Ports and Eliminates the Need for Additional Adapters for Mac or Surface Products. Support Built in Wireless of Dedicated Network. Just Plug and Play and Start Sharing Content with a Single Click

Key Features

• The Yealink MVC500 Room System Delivers a Native Microsoft Teams Rooms Meeting Experience. Designed for Small Meeting Rooms, Yealink MVC500 Room System is a Complete Solution. Containing a Touch Console, Content Sharing Unit, Audio and Video Peripherals and Mini-PCT
• The Yealink VMC34 Array Microphone has 20ft (6m) Voice Pickup Range, and Features Yealink Noise Proof Technology, Ensuring Everyones Voice is Heard in the Conference Room
• The Yealink UVC50 Optical PTZ Camera, Thanks to its Wide Angle Lens, is a Vivid Face to Face Conference is Enabled

Pre-Loaded

• Windows 10 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, Support Skype for Business on-Premise/Online and Teams Meetings
• Yealink Camera Control Plug-in

Yealink MVC500-Wired | Whats Included | Package Contents

• Mini PC and Cable Management Box
• Yealink MTouch Touch Console
• Yealink MShare for Content Sharing
• Yealink UVC50 5x Optical USB PTZ Camera
• 1 x VCM34 Array Microphone
• Yealink MSpeaker Soundbar

Mini PC and Cable Management Box - Product Info

• 7th Generation Intel® Core™ i5
• Memory - 8GB (2 x 4GB)
• Storage - 128GB SSD
• 2 x HDMI Video Output
• Bluetooth and Wi-Fi
• 4 x USB 3.0 - Type - A
• 1 x 10/100/1000M Ethernet Port
• 1 x Power Port
• 1 x Security Lock Slot
• Cable Management Box

Yealink MTouch Console - Product Info

• 8 Inch IPS Screen
• 1280 x 800 Resolution
• 10 Point Capacitive Touch Screen
• 3.5mm Headset Jack
• Human Motion Sensor
• Angle Adjustable Bracket - (23° ~ 50°)
• Native Microsoft Interface
• Yealink Camera Control Plug-In

Yealink MShare for Content Sharing - Product Info

• 1080P/30FPS FHD by MJPEG Format
• Support Wired and Wireless Content Sharing
• Built-in Wi-Fi AP for Yealink Wireless Presentation Device
• 1 x HDMI Video Input
• 1 x Mini-DP Video Input
• 1 x USB 2.0 Type-B
• 1 x USB 2.0 Type-A

UVC50 USB PTZ Camera - Product Info

• 1920 x 1080 Video Resolution
• 60 Frame Rate
• 5x Optical Zoom
• Field of View (Diagonal) - 91°
• Pan Range - 60°
• Tilt Range - 40°
• 1 x Line In - (3.5mm)
• 1 x Line Out - (3.5mm)
• 1 x Yealink Microphone Port (RJ-45)
• 1 x USB 2.0 Type B
• 1 x USB 2.0 Type A
• 1 x Power Port
• 1 x Security Lock Slot
• 1 x Reset Slot

Yealink VCM34 Array Microphone - Product Info

• Built in 3 Microphone Array
• 20ft (6m) Voice Pick up Range
• Cascade Connection - Up to 4 Units
• Yealink Noise Proof Technology
• Mute Button with LED

Yealink MSpeaker Soundbar

• Output - (THD=1.0%) RMS - 10W*4
• Frequent Response - 60 Hz - 20K Hz
• S/N: ≥70dB
