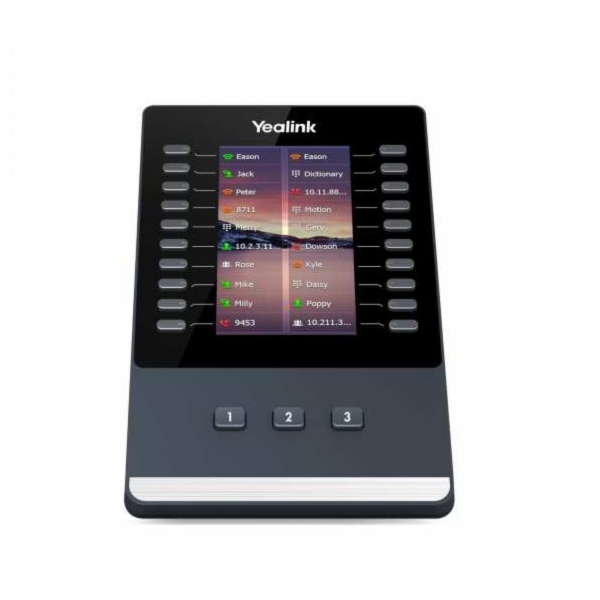

Yealink EXP43 Colour Expansion Module - For Yealink T43U, T46U, T48U IP Phones

About the Yealink EXP43

The Yealink EXP43 Colour Expansion Module for Yealink T43U, T46U and T48U IP Phones is designed to expand the functional capability of your SIP Phone to a whole new level. It features a large 4.3 Inch Colour Screen LCD with 3 pages of 20 flexible Buttons on the Display that can be programmed with up to 60 various features. The functionality of Yealink T43U, T46U and T48U IP Phones will also be extended by the EXP43, users can set the provided multifunctional line keys as BLF, Speed Dial, Call Forward, Transfer, Call Park, Call Pickup etc. The Yealink EXP43 Colour Expansion Module is an ideal solution for Receptionists, Administrative Assistants and Contact Centre Workers, giving users the ability to monitor contacts and manage a large volume of calls with ease.

Key Features and Benefits:

User Friendly Structure Design

With a 4.3 Inch Colour Touch Screen, the Yealink EXP43 Expansion Module is intended to bring a fresh visual experience and an easy operating experience to users. The new design Stand enables users to adjust the Stand between 2 adjustable angles easily without the need to disassemble it. To ensure a higher reliability of data transmission and a higher speed of data refresh, a USB Cable is chosen to connect the EXP43 Expansion Module to the Yealink T43U, T46U and T48U IP Phones. Moreover after the connection between the Expansion Module and the IP Phone is established, the remaining USB Port on the back of the EXP43 Expansion Module can also be used for the Phones extended functions, for example Call Recording via USB Flash Drive etc.

Intuitive Visualisation

The 4.3 Inch 272 x 480 Pixel Colour Screen greatly enriches your visual experience. The Colour Icons for DSS Keys, Wallpaper and Screensaver offer users a new operating experience as well as allowing to custom the EXP43 to their own style. Its 3 independent Control Buttons with Illuminated LED are used for fast switching to the corresponding page.

High Expansibility

The Yealink T43U,T46U, T48U IP Phones can be fully equipped with up to three EXP43 Color Expansion Modules, whilst adding 180 Additional Buttons at most. Three pages of 20 Flexible Buttons with Dual-Color LED's shown on the display can be programmed with up to 60 various features for Speed Dialing, BLF/BLA, Call Forward, Transfer, etc. Thus, it will help you effectively manage high volume of concurrent calls, effortlessly monitor calls and greatly boost personal productivity.

Display

• 4.3 Inch Touchscreen - 272 x 480 Pixel Colour Display with Backlight
• 16 Bit Depth Colour
• Three Page Views are Possible
• Different Colour Icons for Each Function are Shown on the LCD

Feature Keys and Indicator

• 20 Physical Keys, each with a Dual Colour LED
• 40 Additional Keys Through Page Switch
• 3 Independent Control Keys with Illuminated LED are used for Fast Switching Pages
• Programmable for Shared Line, BLF List, Call Park, Conference, Forward, Group Pickup, Group Listening, LDAP, XML Browser

Features

• Wallpaper, Screensaver, Power Saving
• Stand with 2 Adjustable Angles
• For Support of Two or Three Expansion Modules an External Yealink Power Supply 5V/2A) is Required
• Up to Three EXP43 Expansion Modules can be Attached to the Yealink T43U, T46U and T48U IP Phones
• USB Port (2.0 Compliant) for Data In and Out
• USB Port (2.0 Compliant) for - Wired/Wireless USB Headset, Wi-Fi Through WF40, WF50, USB Call Recording Through USB Flash Drive
• Max Power Consumption (PSU) - 1.5W
• Dimensions - 196.5mm x 124mm x 137.5mm x 42.6mm (W x D x H x T)

Package Contents

• Yealink EXP43 Colour Expansion Module
• Stand
• Connecting Sheet
• USB Cable
• Screwdriver
• Screws
• Quick Start Guide
