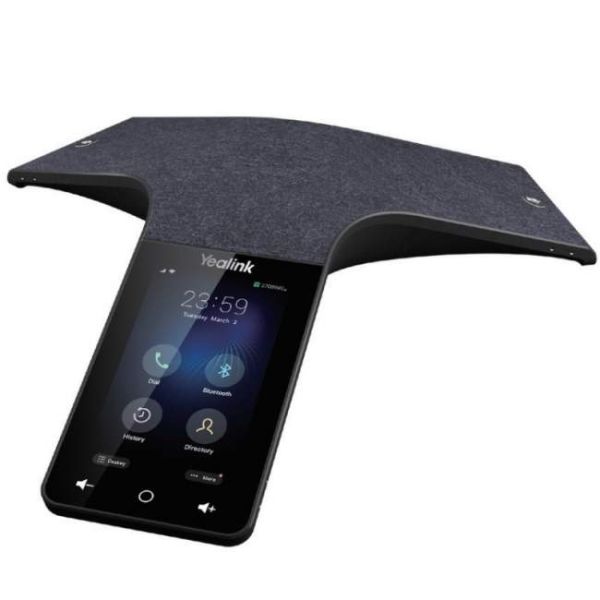

Yealink CP965 Touch Sensitive HD IP Conference Phone

About the Yealink CP965

The Yealink CP965 has all the features of the Yealink CP960 and more, the Yealink CP960 runs on Android 5.1 Operating System whilst the CP965 runs on Android 9.0 Operating System, they both have the same size touchscreen and a 20ft, 360° voice pick up range. The CP965 however offers 10 way video conferencing where the CP960 offers 3 way video conferencing. Both Conference Phones are Wireless and can be paired with Bluetooth, the CP960 has a built in 3 Microphone Array where the CP965 boasts a 13 Microphone Array - 12 Microphone Array for Voice Pickup and 1 Microphone Array for Noise Cancellation.

The CP965's fingerprint proof LCD screen with clear User Interface interaction page makes it easy for everyone to control the meeting, the CP965 can be connected to your mobile via Bluetooth or USB to achieve a variety of UC hybrid meeting modes. The CP965 provides users with a new intelligent voice conferencing solution, making it the ideal choice for any conference room.

Designed for medium to large sized conference rooms, inside the stunning appearance - a set of powerful technology and professional components are wrapped to boost the CP965 with outstanding audio performance. The 13 microphone array is elaborately positioned in the centre of the Yealink CP965 to assure omnidirectional voice pickup and effective noise cancellation. The advanced speaker also activates a max 96dB/0.5m performance.

Based on Android 9.0 OS, the CP965 is a flagship HD Conference Phone with powerful voice conferencing features and easy control operation, the CP965 not only adopts a business and introverted design that perfectly matches the calm style of the conference room, but also a acoustic fabric, which is impervious to any accidental liquid spills.

Features and Benefits:

Modest Design - User Interface Which is Easy to Use

The Yealink CP965 has been designed with black acoustic fabric - this is resistant to water, oil and stains, its ultra thin body, crystal clear audio, appropriate desktop fit and hidden wiring slot makes it a perfect fit for conference rooms. Its built in Linux System and easy to use User Interface allows users to launch a meeting with one button.

HD Audio - Clear and Natural Voice Conference Experience

The CP965 adopts a Y-shaped design and has 13 Microphones - 12 built in Microphones for sound picking and 1 Microphone for noise cancellation. Its 20-foot and 360° omni-direction voice pickup provides users with clear and natural voice conference experience.

High Expansibility and Rich Features

The CP965 supports 10 way conference calling, enabling participants from different locations to communicate smoothly and effectively. You can also connect the CP965 to different devices:

BYOD - By simply connecting mobile devices (such as a Laptop, Smartphone, PSTN Device CPN10 etc.) through Bluetooth or Type C or USB 2.0 port to realize Hybrid UC meeting (including PSTN, SIP, mobile phone.

Wireless Microphone - When working with the Yealink CPW65 Wireless DECT Expansion Mics or the Bluetooth Wireless Expansion Microphone CPW25, up to a 30m connection distance with CP965 can be achieved while still keeping the conference room table clean.(Please note that the CPW25/CPW65 Microphones are pending release)

PSTN Conference - With Yealink PSTN Device CPN10, the CP965 supports 3 way local conference.

Main Features

• Red Dot Award 2021
• Android 9.0 Operating System
• 5 Inch Multi Touch Screen with 720 x 1280 Resolution
• Optimal HD Audio - Full Duplex Technology
• Yealink Noise Proof Technology
• 20 Foot (6m) and 360° Voice Pickup
• 13 Built in Microphone Array - 12 Microphone Array for Voice Pickup and 1 Microphone Array for Noise Cancellation
• Power over Ethernet
• 10 Way Conference Call
• DECT/Bluetooth Microphone Compatible - Microphones Optional Accessory (Pending Release)
• Yealink Decagon Meeting Room
• Pairing Via Bluetooth
• Hybrid UC Meeting
• Built in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
• Built in Bluetooth 4.2
• PoE - if No PoE is Available a Power Adapter will need to be Purchased

Audio Features

• Optimal HD Audio
• Yealink Noise Proof Technology
• Smart Noise Filtering
• 20ft (6m) Microphone Pickup Range
• Ideal for Small to Medium Conference Rooms
• Built-in 12 Microphone Array, 360 Degree Voice Pickup
• Built-in 1 Microphone Array, Decrease Noise
• Loudspeaker - Frequency - 100-20,000 Hz, Volume - 94dB at 0.5-m Peak Volume
• 56mm Diameter and 5w Speaker
• Full Duplex Speakerphone with AEC
• Echo Cancellation Tail Length is u to 320ms
• Background Noise Suppression
• Codecs: G722, G722.1C, G726, G.729, G.729A, G723, iLBC, Opus, PCMU (G.711A), PCMA (G.711μ)
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO
• VAD, CNG, PLC, AJB, AGC

Phone Features

• 1 SIP Account;
• Call Hold, Mute, DND, Call Recording, Hotline
• 10 Way Conference Call
• Analog PSTN calls via Yealink PSTN Device CPN10
• Redial, Call Waiting, Emergency Call
• Call Forward, Call Transfer, Call Return, Dial Plan
• Ring Tone Selection/Import/Delete
• Set Date Time Manually or Automatically
• Volume Adjustment
• Pairing via Bluetooth
• Create Meeting Directly
• Join Meeting Seamlessly
• Active Speaker

Star Connection

• Up to Four CP965 - One Master CP, Three Slave CP
• Wired Network Only
• Two Expansion Microphones for Each CP965

Directory

• Local Phonebook up to 1000 Entries
• XML/LDAP Remote Phonebook
• Intelligent Search Method
• Phonebook Search/Import/Export
• Call History - Dialed/Received/Missed/Forwarded
• Block List

IP-PBX Features

• Busy Lamp Field (BLF)
• Multicast Paging
• Intercom
• Anonymous Call
• Anonymous Call Rejection
• Voicemail
• Distinctive Ringtone
• Call Pickup

Display

• 5 Inch - 720x1280 Capacitive Touch Screen
• Volume Key
• Home Button

Interface

• 1 x RJ45 10/100M Ethernet Port
• Built-in Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
• Built-in Bluetooth 4.2
• Power over Ethernet (IEEE 802.3at), Class 4
• 1 x USB 2.0 Type-A Device Port
• 1 x USB 2.0 Type-C Device Port
• 1 x Security Slot

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• SIP Server Redundancy Supported
• IPv4/IPv6
• NAT Traversal - STUN Mode
• Proxy Mode and Peer-to-Peer SIP Link Mode
• IP Assignment - Static/DHCP
• HTTP/HTTPS Web Server
• Time and Date Synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS - 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP for Voice Encryption
• Transport Layer Security (TLS1.3)
• HTTPS Certificate Manager
• AES Encryption for Configuration file (AES256)
• Adb Encryption Authenticated
• Digest Authentication using MD5/MD5-sess
• OpenVPN, L2TP VPN
• WPA2/WPA3
• Secure Boot
• GARP (Generic Attribute Registration Protocol)

Management

• Configuration - Browser/Phone/Auto-Provision/Yealink Device Management Platform
• Auto Provision via FTP/TFTP/HTTP/HTTPS for Mass Deploy
• Auto Provision with PnP
• Zero-sp-Touch, TR-069
• Reset to Factory, Reboot
• Package Tracing Export, System Log

Physical Features

• Power Consumption PoE - 7.3W-20W
• Power Consumption PSU - Optional Power Adapter not Included - 5.9W-14W
• Dimensions - 328mm x 322mm x 62mm (W x D x H)

Package Contents

• Yealink CP965 IP Conference Phone
• Ethernet Cable (7.5m CAT5E UTP Cable)
• M2x5 Screw
• Screwdriver
• Quick Start Guide
