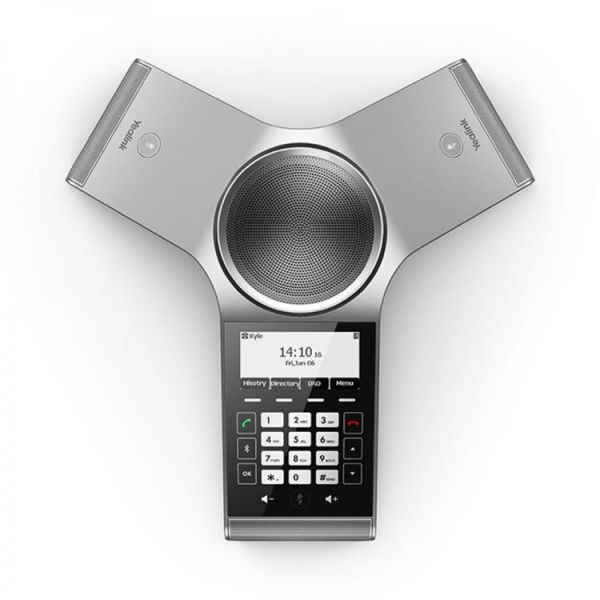

Yealink CP920 HD IP Conference Phone

The Yealink CP920 allows up to five parties to join a conference call from different locations, the Yealink CP920 can also be paired with PC`s, Tablets, Smartphones via Bluetooth allowing the CP920 to be used as a loudspeaker or microphone. In addition, you can merge your smartphone or PC/tablet, SIP call and PSTN call into one hybrid UC meeting.

Incorporating Yealink’s renowned Noise Proof Technology, the CP920 reduces background noise interference and minimizes distractions to the meeting environment thanks to its built-in 3-microphone array. With an additional 20-foot (6-metre) and 360-degree voice pickup range, the meeting or huddle session will take place as if all participants are sitting across the table from each other.

Sensitive Touch, Elegant Control

This Y-shape phone released from Yealink, representing the first letter Y of Yealink, owns a sensitive touch keypad which perfectly cancels the keyboard noise and facilitates your conference room experience by simply putting all of the key conferencing functions at your fingertips.

Superior Audio Quality

The Yealink CP920 Conference Phone, marrying the Yealink Noise Proof Technology, unburdens the business conversation by reducing annoying noise and minimizing distractions to set audio experience into a new level. Thanks to its built-in 3-microphone array, CP920 owns a 20-foot (6-metre) and 360-degree voice pickup range as if all participants are sitting across the table from each other!

Simultaneous Analog-Plus IP

To protect business owner’s investments by supporting the migration to VoIP, the CP920 allows you to connect Yealink PSTN box CPN10 with traditional analog phone lines. Without purchasing any extra PSTN server, just cascading two CPN10 can directly implement local three-way PSTN conference and offers flexible modes for business users: analog, IP or simultaneous analog-plus-IP.

Hybrid UC Meeting

With the Yealink CP920, up to five parties can join a conference call from different locations, helping your company cut costs and save time. Pairing the Yealink CP920 with your smartphone or PC/tablet via Bluetooth allows you to turn the Yealink CP920 into a loudspeaker or microphone with ease. In addition, you can merge your smartphone or PC/tablet, SIP call and PSTN call into one hybrid UC meeting.

Features

• Sensitive Touch Keypad
• Optima HD Audio, Full Duplex Technology
• Yealink Noise Proof Technology
• Local 3 Way PSTN Conference Via Yealink CPN10
• Local USB Recording
• Built in Bluetooth 4.0
• Hybrid UC Meeting
• 5 Way Conference Call
• Power Over Ethernet
• Built in 3-Microphone Array
• 3.1” 248x120-Pixel Graphical LCD with Backlight
• 20 Foot (6 Metre) and 360 Degree Voice Pickup

Audio Features

• Optimal HD Audio
• Yealink Noise Proof Technology
• Background Noise Suppresion
• 20 Foot (6 Metre) Microphone Pickup Range
• For Small to Medium Conference Rooms
• Built in 3 Microphone Array
• 360 Degree Voice Pickup
• 56mm Diameter and 5W Speaker
• Full Duplex Speakerphone with AEC
• Echo Cancellation Tail Length is up to 320ms
• Codecs - G722, G722.1C, G726, G729, G723, iLBC, Opus, PCMA, PCMU
• DTMF - In-Band, Out-of-Band (RFC 2833) and SIP INFO
• VAD, CNG, PLC AJB, AGC

 Directory

• Local Phonebook with up to 1000 Entries
• XML/LDAP Remote Phonebook
• Intelligent Seach Method
• Black List
• Call History - Dialed/Received/Forwarded/Missed
• Phonebook Search/Import/Export

IP-PBX Features

• Intercom
• Call Pickup
• Multicast Paging
• Anonymous Call Rejection
• Distinctive Ringtone
• Voicemail
• Anonymous Call

Display

• Caller ID with Name and Number
• 3.1" 248 x 120-Pixel Graphical LCD with Backlight
• 25 Total Keys - 4 Soft Keys, Off Hook Key, On Hook Key, 12 Key Numerical Keypad, Bluetooth, Mute, Volume Keys, 2 Navigation Keys, Ok Key
• Phone Lock
• Multilingual User Interface

Interface

• 1 x RJ45 10/100M Ethernet Port
• Built in Wi-Fi  (2.4GHz，802.11 b/g/n)
• Built in Bluetooth 4.0
• Power over Ethernet IEEE 802.3af), Class 3
• 1 x USB 2.0 Port
• 1 x Security Slot

Phone Features

• 1 VoIP Account
• Call Hold, Mute, DND, Call Recording, Hotline
• 5 Way Conference Call
• Flash
• Redial, Call Waiting, Emergency Call
• Call Forward, Call Transfer, Call Return
• Dial Plan
• Ringtone Selection/Import/Delete
• Set Date and Time Manually or Automatically
• Volume Adjustment
• Pairing Via Bluetooth

Network and Security

• OpenVPN. IEEE802.1X
• Digest Authentication Using MD5/MD5-sess
• AES Encryption for Configuration File
• HTTPS Certificate Manager
• Transport Layer Security (TLS)
• SRTP for Voice Encryption
• Qos - 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• UDP/TCP/DNS-SRV (RFC 3263)
• Time and Date Synchronization using SNTP
• HTTP/HTTPS Web Server
• IP Assignment - Static DHCP
• Proxy Mode and Peer to Peer SIP Link Mode
• NAT Traversal - STUN Mode
• IPv4/IPv6
• SIP Server Redundancy Supported
• SIP v1 (RFC2543), v2, (RFC3261)

Other Physical Features

• Dimensions - 307.8mm x 298.5mm x 66.9mm (W x D X H)
• Power consumption (PoE): 3.9w-7.6w
• Operating Humidity -&nbsp10~90%

In the Box

• Yealink CP920 HD IP Conference Phone
• Ethernet Cable (7.5m CAT5E UTP Cable)
• Quick Start Guide
• Yealink Power Adapter
