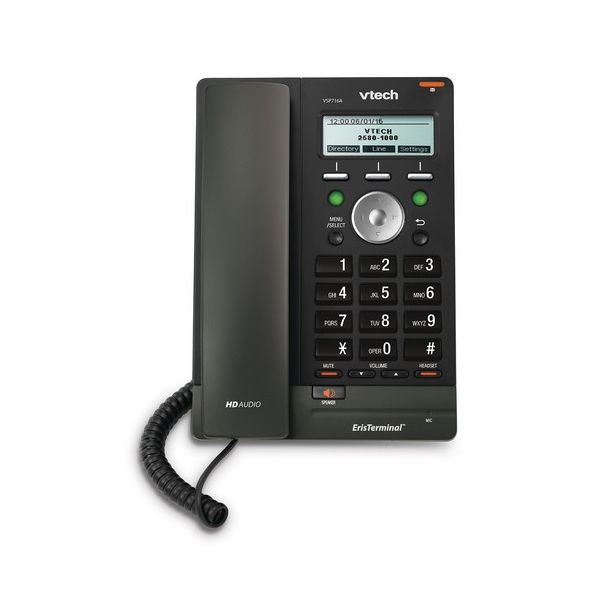

VTech VSP716A ErisTerminal SIP Telephone

The VTech VSP716A ErisTerminal entry level SIP deskphone offers users an easy to use, cost effective system complete with all of the essential features required for business use. Featuring 2 SIP accounts, HD audio, 2 programmable feature keys, PoE support and dual Ethernet ports, the VSP716A enables users to easily manage calls.

Plus, with a generous 3 year manufacturer`s warranty, users benefit from the added peace of mind that their hardware comes with an industry-leading cover.

Key Features:

Advanced Call Handling

• Impress customers with comprehensive call handling features that are compatible with hosted and open-source PBX platforms**

Flexibility

• With support for up to two SIP lines/accounts, you can manage multiple calls with advanced call handling features

Intuitive Design

• You're in business with a user-friendly interface, large backlit display, navigational pad and three soft keys

One-Button Call Routing

• There are 2 dual-function feature keys for convenient access, including shared call appearances (SCA), busy lamp fields (BLF), quick dial and feature codes

Full-Duplex Speakerphone

• Finally, a speakerphone that can keep up with your calls. Increase participation by allowing parties on both ends to speak and be heard—at the same time—for conversations that are more true to life

HD Voice Quality

With G.722 wideband codec support for HD audio, calls have never sounded so rich and life-like

Dual Ethernet Ports

• Do more with dual Ethernet ports, Connect your desktop computer or laptop to the phone – no need for extra cabling

Power over Ethernet (PoE)

• With PoE support, you can locate the phones anywhere that's convenient—no AC outlets or complicated wiring required

Installation and Provisioning

• Integrated IEEE 802.3at PoE enables efficient deployment. Supports FTP, TFTP, HTTP, and HTTPS protocols for file provisioning. Model is configured by default to use Trivial File Transfer Protocol (TFTP), supports AES encrypted configuration file

Three Year Manufacturers Warranty

• Enjoy the peace of mind that comes with an industry-leading, standard three-year warranty. VTech also provides advanced replacement on warranty claims using new, not refurbished products

Specifications:

Interface

• Ethernet ports 10/100M
• Base power: Class 3 Power over Ethernet (PoE) or optional AC adapter

Display, Keys and Indicators

• 158 x 57 pixels (w x h) LCD resolution
• LCD backlighting (white)
• 3 soft keys
• 7 dedicated feature keys
• 2 programmable feature keys
• 4-way navigational pad
• Message waiting LED indicator

Audio/Voice

• Full-duplex base speakerphone
• HAC receiver
• 2.5 mm corded headset jack
• HD Voice for receiver

Phone Features

• Supports up to 2 SIP account registrations
• Local phonebook up to 1000 entries
• Phonebook import/export
• LDAP/BroadSoft remote phonebook
• Call history up to 200 entries
• Shared Call Appearance (SCA)/Bridged-Line Appearance (BLA)
• Do Not Disturb (DND)
• Busy Lamp Field (BLF)
• 3-way local conference
• N-way network conference
• Call barring/blocking (block anonymous/blacklist)
• Hotline, Intercom
• Mute, Redial
• 10 speed dial entries
• Call transfer: blind/attended
• Call Hold, Call Park
• Call Pickup
• Call forwarding: per-line basis (busy/always/no answer)
• Call restriction
• Call timer (call duration)
• Caller ID
• Call completion
• Phonebook matching(incoming and outgoing calls)
• Multicast paging
• Multi-language support
• Automatic Call Distribution (ACD)

Customisation

• Soft key configuration
• Programmable hard keys
• Custom start and idle logo
• Web interface configuration (admin & user)
• Custom base ringer (.WAV)
• XML Browser
• Action URI
• Active URL (CTI support)
• Custom default file
