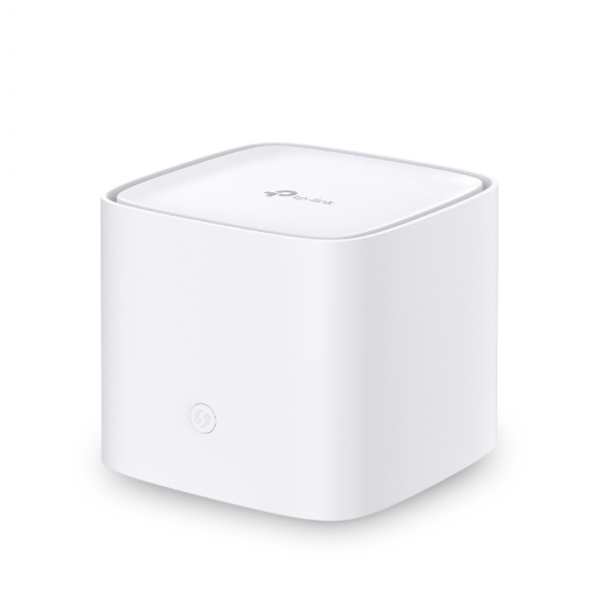

TP-Link HC220-G5 - AC1200 Whole Home Mesh Wi-Fi AP

AC1200 Dual Band Wi-Fi, Gigabit Internet Access, Wireless Hassle Free Installation, EasyMesh Feature Supported

The HC220-G5 is a TP-Link Wi-Fi 5 Mesh Access Point based on the 802.11ac standard. Take your Wi-Fi to the next level, whilst being backward compatible with 802.11a/b/g/n/ac Wi-Fi standards. Being backward compatible ensures that it works seamlessly with users existing devices, making the HCC20-G5 the exceptional choice for modern small businesses who demand high performance networking.

AC1200 Dual Band Wi-Fi

The TP-Link HC220-G5 offers speeds of up to 1200 Mbps - 867Mbps on the 5GHz band and 300Mbps on the 2.4GHz band, based on 802.11ac Wi-Fi technology.

EasyMesh Feature Supported

Equipped with enhanced security features, the TP-Link HC220 includes WPA3 encryption, Multi-SSID, and Parental Controls, for a safer online experience. What's more, the HC220 is compatible with EasyMesh technology, simplifying Wi-Fi management, diagnostics, channel selection, and traffic separation.

Gigabit Internet Access

Take full advantage of the broadband with speeds of up to 1Gbps through a gigabit WAN port and three gigabit Ethernet LAN ports for fast and reliable wired connections.

Wireless, Stress Free Installation

In the TP-Link mesh Wi-Fi system, if a link is not usable for any reason, network sources could still be available via a second link as a fail safe.

Whole Home Coverage

Empowered by EasyMesh technology, the HC220-G5 provides a strong WiFi signal in every corner of your home. Wireless connections and optional Ethernet backhaul work together to link each unit, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another HC220-G5 whenever you want. (Some features will require two or more units)

Seamless Roaming with One Wi-Fi Name

All units work together to form one unified network, your mobile devices will automatically connect to the fastest unit when you move through your home, creating a truly seamless Wi-Fi experience.

No More Buffering - Stable Connections

The TP-Link HC220-G5 provides lag free Wi-Fi connections. A fast networking experience is guaranteed for all devices and all applications from surfing, downloading, streaming and gaming.

2-in-1 Router and Access Point Modes

The flexible and multifunctional HC220-G5 includes a variety of features - it can serve as a router - this generates a private wireless network, or it can serve as an access point - this creates Wi-Fi access for any existing wired network. Choose the mode for actual network demands and experience maximum wireless flexibility.

Easy to Use and Easy to Set Up

Set up your device in minutes, whether you prefer the intuiitve Agient app or the powerful web inteeface. The Aginet app allow you to manage network settings from your smartphone or from your tablet.

Supports TR-069 Remote Management

ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations are also supported thanks to compatibility with TR-181, TR-111, and TR-143 protocols.

Features

• Faster Connections - Speeds of up to 1200 Mbps - 867 Mbps on 5GHz and 300 Mbps on 2.4GHz
• Boosted Seamless Coverage - Achieve Seamless Whole Home Coverage with a Clearer and Stronger Wi-Fi Signal
• One Unified Network - Multiple Units from a Whole Home Network that Auto Selects the Best Connection as you Move Around your Home
• Enhanced Security - WPA3 Encryption, Multi-SSID and Parental Controls Provide a More Personalised and Safer Online Experience
• EasyMesh Compatible - Provides Whole Home Wi-Fi Coverage with Standard Mesh Technology
• Easy Set-Up - Set up your Mesh Wi-Fi in Minutes with the Powerful Aginet App
• Remote Management - TAUC Cloud Management, TR-098, TR-181, TR-111 and TR-143 are Supported

Specifications:

Hardware

• Interface - 2 x 10/100/1000 Mbps RJ45 LAN Ports, 1 x 10/100/1000 Mbps RJ45 WAN/LAN Port
• Antenna - Internal Antennas
• External Power Supply - 12VDC/1.0A(For US)
• Button - WPS Button, Reset Button
• CPU - Dual-Core, 1.0 GHz
• Dimensions - 100mm x 100mm x 89.5mm (3.9 Inches x 3.9 Inches x 3.5 Inches) W x D x H

Software

• Working Mode - RouterMode, AP Mode
• WAN Type - Dynamic IP/Static IP/PPPoE/PPTP/L2TP/Bridge Multi-EWAN
• Protocols - Supports IPv4 and IPv6
• Multi SSID - Up to 4 SSIDs for Each Band (Including Main SSID)
• Features - Parental Control, Firewall, IPSEC VPN, IPv6, Port Forwarding, NAT Forwarding, Address Reservation, QoS(Quality of Service), CWMP, Network Diagnosis, Traffic Statistic, Cloud Upgrade, 1024-QAM, MU-MIMO, OFDMA, EasyMesh
• Management - Local Management: WebGUI Management, Aginet App Management Remote Management: TR-069, TR-181, TR369, TR-111,TR-143 Cloud Management: TAUC
• DHCP - Server, Client
• Firewall Security - DoS, SPI Firewall, IP and MAC Address Binding
• Support IPTV, GMPV2/3 and IGMP Snooping
• Schedule - LED Schedule, Wi-Fi Schedule

Wireless

• Wireless Standards - IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz
• Frequency - 2.4 GHz and 5 GHz
• Signal Rate - 867 Mbps at 5GHz, 300 Mbps at 2.4GHz
• Transmit Power CE - <20 dBm (2.4 GHz), <23 dBm (5 GHz), FCC: <30 dBm
• Wireless Security - WPA/WPA2/WPA3 Personal, WPA/WPA2 Enterprise
• Wireless Function - Enable/Disable Wireless Radio, WMM, Wireless Statistics, Multi-SSID, Guest Network, TX Beamforming, MU-MIMO
• Support EasyMesh - Seamless Roaming, Self-healing, Support 802.11k/v/r

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 Browers or Higher

Package Contents

• AC1200 Whole Home Mesh Wi-Fi Access Point
• 1 x RJ45 Ethernet Cable
• 1 x Power Adapter
• 1 x Quick Installation Guide
