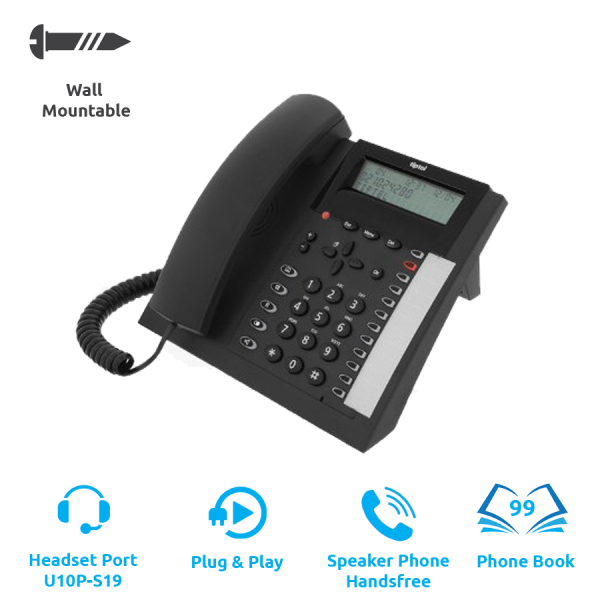

Tiptel 1020 Corded Office Telephone

Tiptel
PMC Product code
9295
Manufacturer's Product Code
1081520
Discontinued
Condition
Brand New
£69.00 £82.80
RRP: £96.80

This Product is End of Life

Please Click Here for Our Available Corded Phones

While installing several analogue telephones which support standard functions used in hotels or nursing homes the programming effort for every single telephone was enormous. Reception, wake-up call, room service, request for help etc, always had to be programmed to the same function keys of every single telephone.

With the Tiptel 1020, this is a thing of the past! You now only need to programme one telephone which will then be defined as a “master” phone. Then every further connected telephone receives it’s programming via a phone call. Now, the master telephone has been cloned. And the telephones are ready to use!

The programming lock against accidental changes will also be directly cloned, along with the programmed telephone book.

This development saves a lot of time and costs. What an advantage when installing big telephone systems.

Features

  • Alphanumeric display arranged in three lines with excellent contrast characteristics
  • Caller ID (CLIP)*
  • Callers name will be displayed (CNIP)
  • Call list of the last 50 dialled numbers including date and time (time will be synchronised via CLIP*)
  • Telephone book with 99 entries
  • Call list of the last 50 received numbers including date and time
  • Hands-free (half-duplex), open listening, signalled by the integrated LED
  • Adjustable loudspeaker and ringing volume
  • Mute key with LED
  • Dialling preparation
  • 16 different ring tones
  • Trendy menu-driven user interface
  • Multilingual (12 display languages)
  • 12 one touch memory keys with caller ID (one touch memory key flashes with incoming call from programmed number)
  • Clearly visible LED as Message Waiting Indicator (MWI)
  • Headset port (U10PS)
  • Suitable for PBXs
  • Hearing aid compatible (integrated magnetic field generator)
  • Adjustable tilting angel in three steps
  • Stand is useable as wall holder
  • Duplication of telephone settings (device cloning)

Additional information for system installations

  • Lock setting (special function for hotels)
  • Security code
  • Special CLIP settings for telephone systems, incl. caller ID with modules ALC-A and ALC-E of NEC Philips Sopho iS 3000 and Telekom Octopus S PBX
  • Health care application (automatic pick-up) This service has to be supported or activated by the network provider or telephone system

Technical Data

  • Dual-CLIP: FSK, DTMF (NL, DK)
  • Dial mode: touch tone (DTMF)
  • Flash key, switchable (100ms/240ms)
  • Message Waiting Indicator*: FSK, polarity reversal, increased voltage, special call signal
  • Line feed (no external power supply or batteries needed)
  • For analogue connection according to ETSI ES 203021
More Information
Product Details
ColourBlack
Manufacturer's Code:1081520
EAN4005579204343
Warranty12 months
ManufacturerTiptel
Key Features
Line TypeAnalogue (BT, TalkTalk, Sky, etc)
SpeakerphoneYes
Caller IDYes
Phonebook Size99
Headset PortNone
Big ButtonsNo
Answering MachineNo
Feature list
Headset compatabilityCordless headset via handset port
Loudspeaker ButtonYes
Speaker Volume ControlYes
SMS Text MessagingNo
Bluetooth CompatibleNo
Hearing Aid CompatibleYes
Extra Loud AmplificationNo
MuteYes
Nuisance Call BlockerNo
LCD DisplayYes
Display Size-
Colour ScreenNo
Touch ScreenNo
Illuminated KeypadNo
Date & Time DisplayYes
Ringer Volume-
Visual Ring Indication-
Ringer Melodies16
Downloadable RingtonesNo
Wall MountableYes
RecallYes
Call Features
List of Dialled Numbers. Time/Date stampedYes
List of missed calls. Time/date stamped-
Last Number RedialNo
Incoming Calls List - Time & Date Stamped-
On Hold MusicNo
Technical Specifications
PSU IncludedNot required - line powered
Battery Size-
Battery Type-
Battery Capacity-
Languages-
REN Value1
Please Note
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
pdf
(Size: 0 B)
Tiptel 1020 User Guide
