Storacall T5000 Marine Acoustic Hood - Wall Mountable

Extremely robust, weatherproof Acoustic Hood - manufactured using high quality, long lasting components.

About the Marine Acoustic Hood

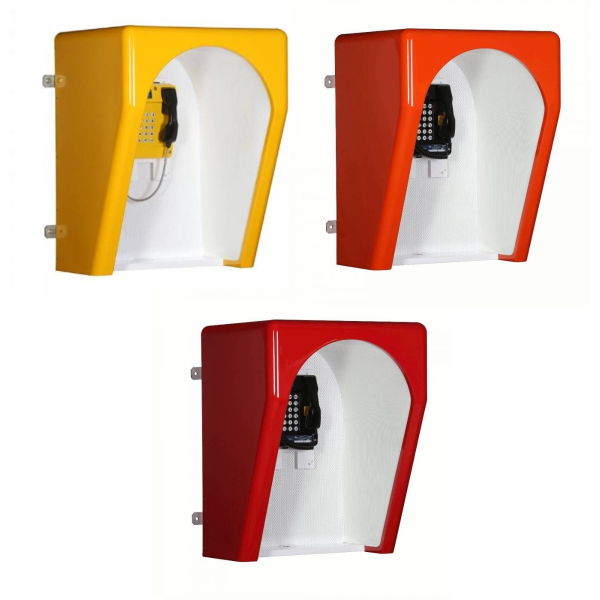

The Storacall T5000 Acoustic Marine Hood Wall Mountable Version is designed for External or Offshore Use and for noisy environments attaining a high level of noise reduction up to 23.9 db as well as being extremely robust and weatherproof. The T5000 Marine Acoustic Hood is manufactured using high quality long lasting components including Thermoset Composite GRP Molding using a certified RTM System to BS476 Part 7 Class II surface spread of flame.

Inside the Hoods Outer Shell is a perforated 3mm polypropylene lining that houses 60mm non-hygroscopic acoustic insulation. Fitted to the inner back wall is a stainless steel apparatus plate, beneath this is a 316 stainless steel shelf (165mm deep) with a white powder coat finish and easy cable entry.

Specifications

• Outer Shell - Thermoset Composite GRP Molding Manufactured using a Certified RTM System to BS476 Part 7 Class II Surface Spread of Flame
• Acoustic Insulation - 60mm Tissue Faced non Hygroscopic Rockwool (RW3) Density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm Thickness, UL94 HB
• Apparatus Plate - 316 Grade Stainless Steel, 2mm Thickness, Powder Coated White
• Mounting Brackets - 316 Stainless Steel. 6mm Thickness
• 316 Stainless Steel Shelf, Powder Coated White
• Bolts, Nuts and Washers - A4 Stainless Steel
• Majority of Assembly Rivets are A4 Stainless Steel

Dimensions and Weights

• Product Size - 920mm x 700mm x 610mm (H x W x D)
• Product Weight - 31.5kg Approximately
• Boxed Size - 980mm x 800mm x 680mm (H x W x D)
• Boxed Weight - 37kg Approximately
