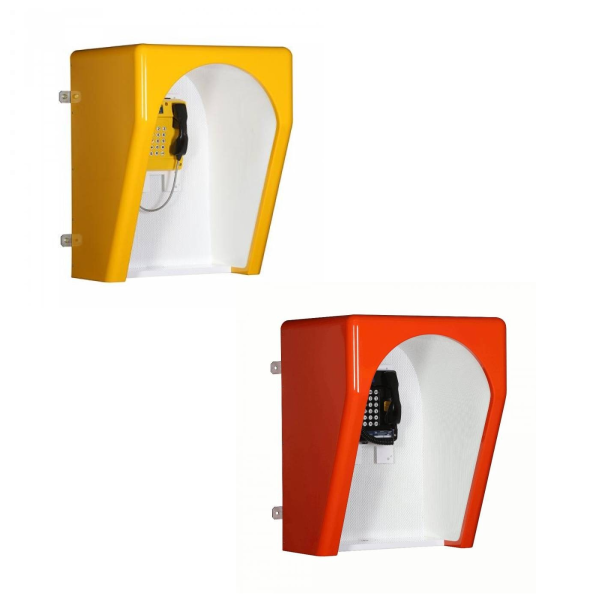

Storacall T5000 Acoustic Hood - Wall Mountable

Extremely robust, weatherproof Acoustic Hood - manufactured using high quality, long lasting components.

About the Acoustic Hood

The Storacall T5000 Acoustic Hood Wall Mountable Version is designed for Internal or Sheltered use and for noisy environments attaining a high level of noise reduction up to 23.9 db as well as being extremely robust and weatherproof it is also manufactured using high quality, long lasting components that include Thermoset Composite GRP Molding using a certified RTM System to BS476 Part 7 Class II surface spread of flame.

Inside the hood's outer shell is a perforated 3mm polypropylene lining that houses 60mm non-hygroscopic, high performance acoustic insulation.>

Fitted to the inner back wall is a mild steel apparatus plate with a grey powder coat finish, beneath this is a grey powder coated mild steel shelf with easy cable entry.

Specifications

• Outer Shell - Thermoset Composite GRP Molding Manufactured using a Certified RTM System to BS476 Part 7 Class II Surface Spread of Flame
• Acoustic Insulation - 60mm Tissue Faced non Hygroscopic Rockwool (RW3) Density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm Thickness, UL94 HB
• Apparatus Plate - Mild Steel, 2mm Thickness, Powder Coated Grey
• Mounting Brackets - Mild Steel , 6mm Thickness, Powder Coated Grey
• Shelf - Mild Steel, 1.5mm Thickness, Powder Coated Grey
• Bolts, Nuts and Washers - Zinc Coated
• Assembly Rivets are Aluminum

Dimensions and Weights

• Product Size - 920mm x 700mm x 610mm (H x W x D)
• Product Weight - 31kg Approximately
• Boxed Size - 980mm x 800mm x 680mm (H x W x D)
• Boxed Weight - 37kg Approximately
