Stevie Single Phase EV Charger

The New Innovative Patent Registered STEVIE EV Charger Offers New Home Developers a Stylish & Compact EV Charging Solution. Carefully Selected Coloured Fascia's & Cable Holders Ensure that the STEVIE EV Charger is a Subtle Feature on all New Homes - Installation is Quick & Easy & is Carried out by an Approved Installer

About the STEVIE EV Chargers

The STEVIE Electric Vehicle Chargers have been designed especially for Electric Vehicle drivers and Commercial Parking Spaces, delivering functionality as well as sophistication.

Their high quality and versatile design provides EV drivers with the ability to recharge their vehicle battery simply by connecting the charging cable to the designated socket.

When the STEVIE Charger is paired with the Monta App, STEVIE extends its capabilities to incorporate a comprehensive array of features that include but not limited to - mobile app controlled charging, user access, monitoring energy consumption, choose and set a charging completion time and more.

Mounting Options

Different mounting options are available with the STEVIE EV Chargers, to allow for the users preference - either In Wall (Recessed Mounted) or On Wall (Surface Mounted).

Surface Mounting is the easiest of the mounting options due to it sitting on the wall of the property, Recessed Mounting houses the STEVIE EV Charger in the Wall of the Property, both options provide a smart look to the property.

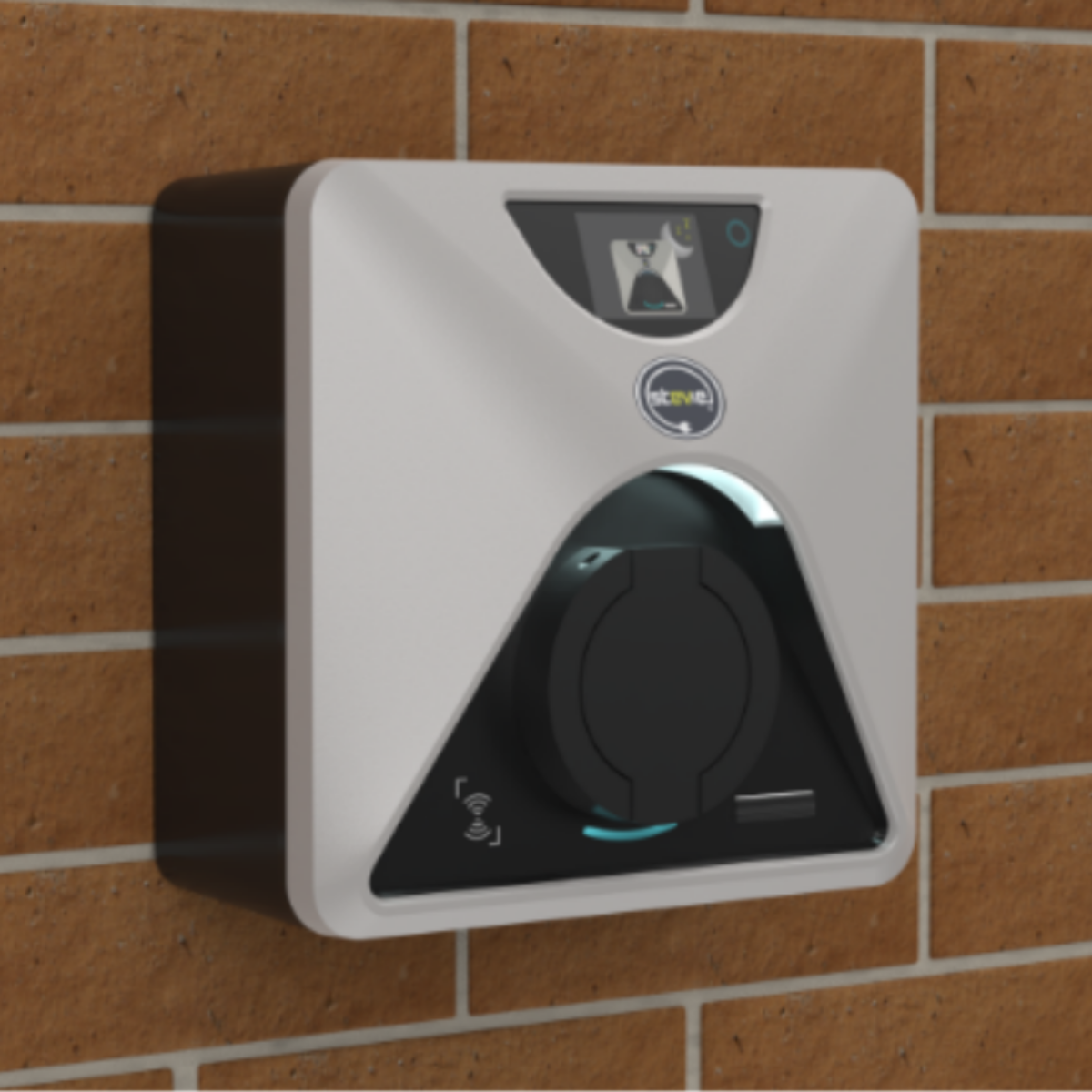

Available with or without LCD Display

The STEVIE EV Chargers are available with or without an LCD Display - The LCD Display enables users to check charging status.

Connectors

The STEVIE is available with either a Type 2 Connector or a TPU Cable and Plug depending on the variant.

The In Wall variant has has a Type 2 Connector.

The On Wall you can choose either a Type 2 Connector or a TPU Cable and Plug

The TPU Cable and Plug is known as the Tethered Version, and comes with a 7.5m Extra Long Cable for added convenience, the cable is permanently attached making it an anti-theft solution and prevents any dust and dirt building up in the cable.

Variants Available:

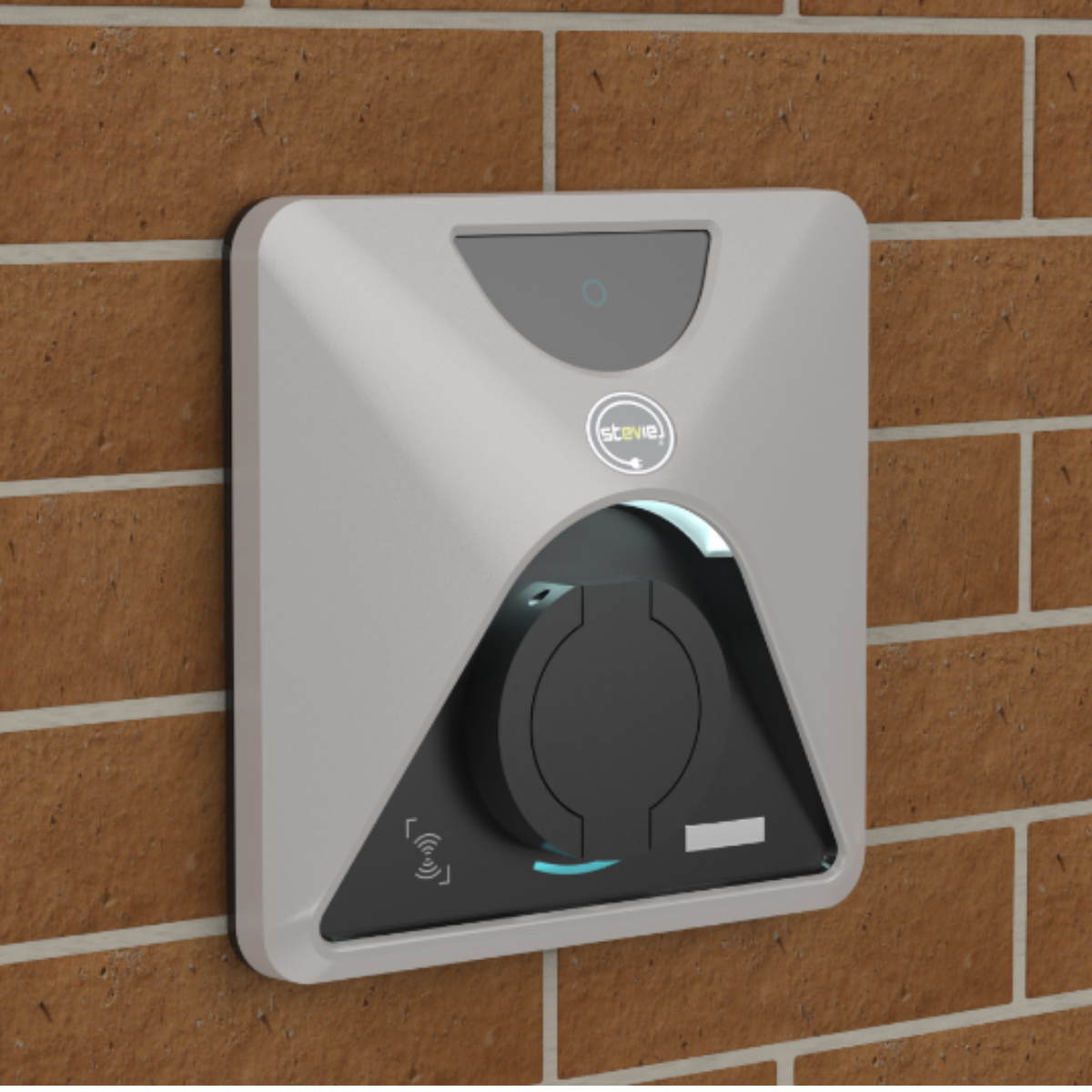

• In Wall- Recessed, with or without LCD Display with Type 2 Connector
• On Wall - Surface Mounted, with or without LCD Display, with Type 2 Connector or TPU Cable & Plug (Tethered)

Monta Mobile App:

Smart Control Using Green Energy

The Monta App ensures owners of the Stevie Charging Point have access to Monta’s Smart Charging’ product features - automatically optimising all electric vehicle’s charging schedules according to a number of different factors, including when energy is cheapest and/or greenest.

Set your preferences, change your settings and see how much energy is being used, all from the comfort of your home, no need to go outside to start and end the charge via the app.

Mobile App Features

• Mobile App Controlled Charging
• Remote Software Locking - Give Family and Friends Access to use your Charge Point - Even when You’re not There
• Choose and Set a Charging Completion Time
• Automatic Off Peak Hours Charging
• Smart Scheduled Charging Feature
• Compatible with all EVs & PHEVs
• Energy Tariff Driven Charging
• Lock Your Charger Feature
• Immediate Charge Boost Button (RFID)
• Sync with your Solar Panel Set-Up (If Solar Panels Available)
• Understand your Charging Costs
• Live Charge Session Notifications
• Review Statistics and Analytical Data

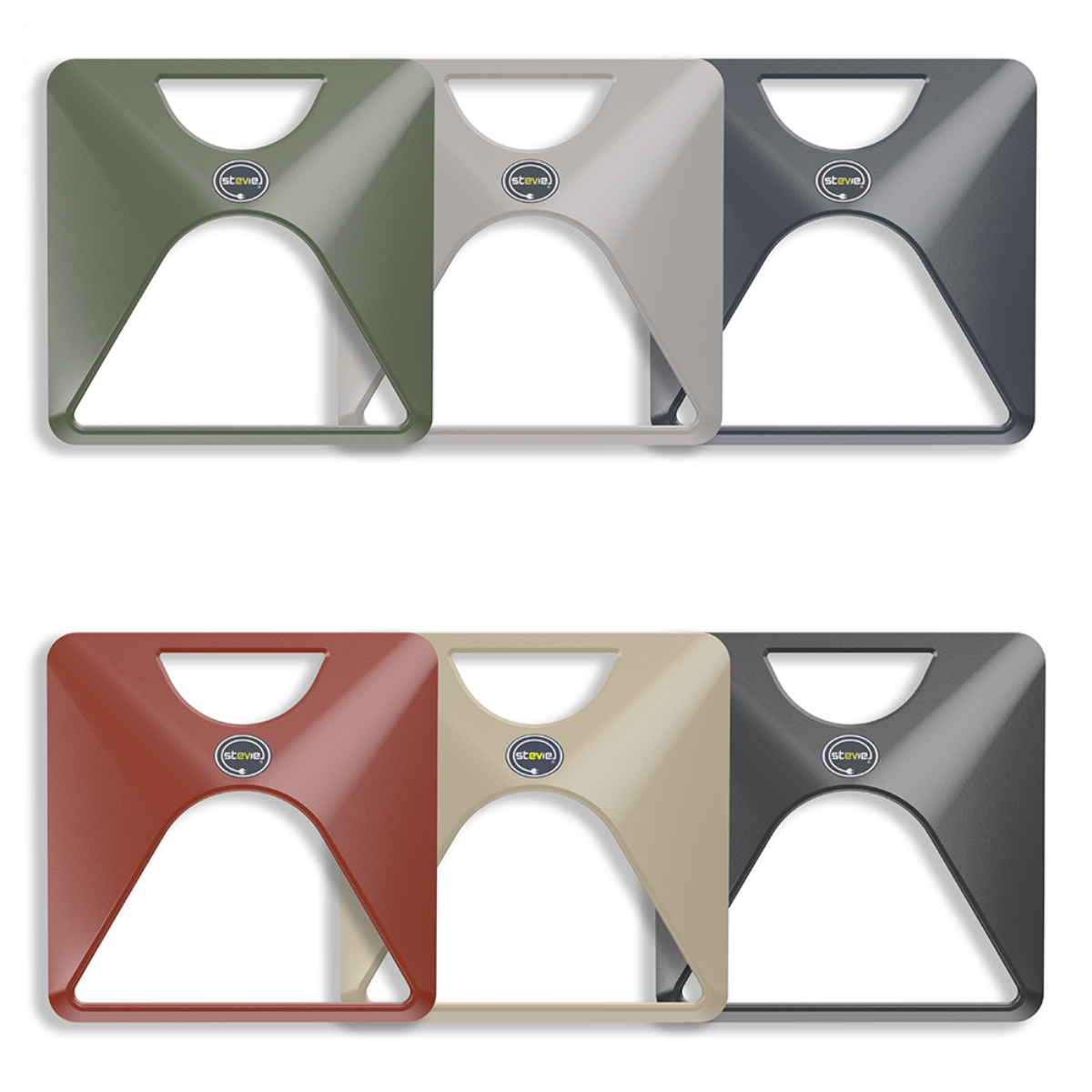

Personalise with Coloured Fascia's

The STEVIE EV Charger is supplied with a Pearl White Fascia as standard but you can upgrade to optional easily swappable STEVIE Coloured Front Fascia's at any time - Optional Colours are not Included - Can be Purchased Separately).

Optional Coloured Fascia's Available:

• Pearl White (Included as Standard)
• Almond White
• Brick Red
• Metal Blue
• Sage Green
• Anthracite Grey

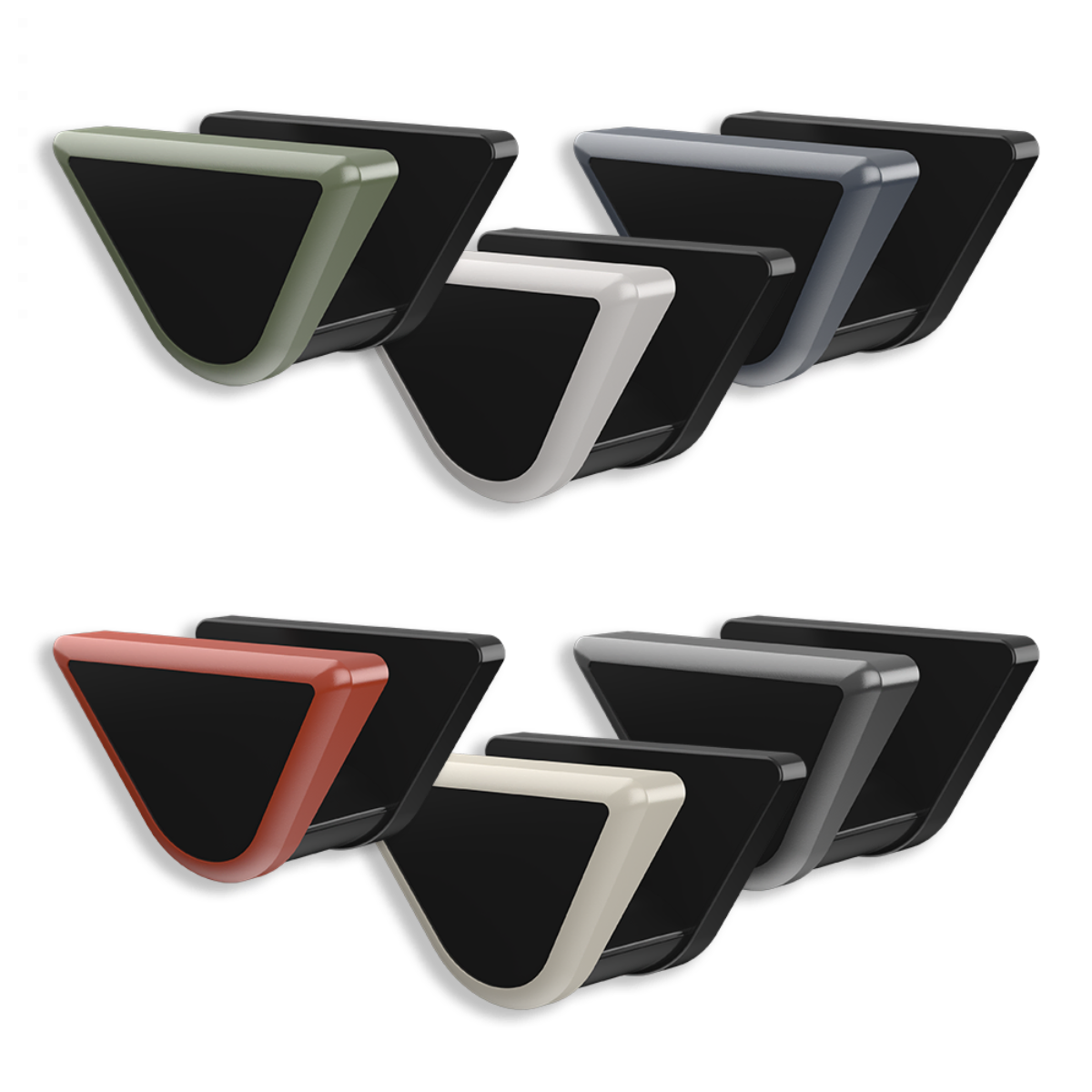

Personalise with Coloured Cable Holders

Keep your STEVIE Charger tidy with a STEVIE Coloured Cable Holder - available in a choice of colours to match the Fascia and complement the property's external appearance. The Cable Holder is not included (Only Included with the Tethered Version) but can be ordered separately.

Optional Coloured Cable Holder Colours Available:

• Pearl White (Included as Standard with Tethered Version Only)
• Almond White
• Brick Red
• Metal Blue
• Sage Green
• Anthracite Grey

Approved Installer Network

With the approved installer network, you can be assured that your STEVIE Charging Point will be installed to a high standard. All installers who are registered as a preferred partner have been assessed to ensure that they meet the approved installer network standards.

Nationwide Installation is available - Installation is not included - please contact our friendly and knowledgeable advisors on 0161 737 9898 who will be happy to provide further information and installation costs.

Overview

• Wall Mounted or On Wall Options (Model Dependent)  - Taking up the Space of Just Three Bricks
• Tethered (Corded) or Un-Tethered (Socket) Versions (Variant Dependent)
• With or Without LCD Display (Variant Dependent)
• Electronic Cable Lock
• Light on Switch for Socket Illumination with a 20 Second Time Out
• Compliant with the Electric Vehicles (Smart Charge Points) Regulations 2021 and December 2022 Edition)
• CT Clamp with 5m Cable
• RFID - Immediate Charging Override Secure Key Fob
• PEN-Fault Protection Device - no Earth Rod Required in Most Cases
• UV Shielded Plastics for Protection Against Sunlight
• Dynamic Load Balancing to Automatically Protect the Property’s Main Fuse
• Fast 7.4kW Charging
• Renewable Energy (Solar / Wind) Surplus Compatible)
• Smart Charging - Pre-Configured to Avoid Charging During Peak Hours
• Wi-Fi 6 - 2.4GHz Connectivity Included as Standard - High Speed Connectivity to Router
• 4G GSM SIM Module Available as Optional Connectivity (Coming Soon)
• LAN - Hard Wired Solution as Optional Connectivity (Coming Soon)
• Suitable for Residential Properties and Commercial Properties, (Homes, Offices, Factories, Restaurants, Hotels, Sports Venues etc)
• Multiple Colour Fascia's and Cable Holder Options Available. (Pearl White Supplied as Standard, Other Available Colours - Almond White, Brick Red, Metal Blue, Sage
• Green and Anthracite Grey)
• 3 Year Warranty - Option to Extend to 5 Years

Highlights:

Patented On-Wall Charge Points

• Smart Appearance - Choice of Interchangeable Coloured Facias are Available (Pearl White is Supplied as Standard) with all Variants - Made of UV Shielded Plastics that Provide Better Protection Against Sunlight Bleaching
• Choice of Interchangeable Cable Holders are Available (Cable Only Included Only Included with the Tethered Versions and Pearl White is Supplied as Standard) - For On Wall Untethered and In Wall Variants the Cable Holder will need to be Purchased Separatley

Personalisation Window

• Allows the User to Personalise their STEVIE Unit by Adding their Property Name in the Personalisation Window, so Others know who the EV Charger Belongs to
• Inside Fascia Card Placement Keeps Personalisation Card Fresh, Professional Looking and Provides Protection from the Elements
• Personalisation Window is Illuminated
• Gives Total Choice of Personalisation to Owner

3 Colour LED Status Indicator to Advise of Charging Status (Red, Green, Blue)

• Blue, Green and Red LED Flashing Alternately  - Product Power-on Self-Check
• Glowing Blue LED - Standby
• Flashing Blue LED - Connection Confirmation
• Glowing Green LED - Charging
• Flashing Green LED - Charging is Complete
• Glowing Red LED - Temperature is Too High (Possible Fault) See Trouble Shooting Guide

Technical Specifications

• 3 Year Warranty - Option to Extend to 5 Years
• RFID Cards - Enable Immediate Override the of the App
• Supplied with TPU Cable & Plug
• IP54 Ingress Protection Rating for Untethered Variants - IP65 Ingress Protection Rating (Tethered Variant)
• Touch Sensitive Button - Activates the Local Interface and Illuminates the Display Screen, Charging Socket Downlight and Personalisation WIndow
• LED Light - Downward Facing Soft Light Illuminates the Charging Socket when its Dark, Timed to Turn off
• Dimensions - 260mm x 260mm x 141mm - On the Wall Variant, 260mm x 260mm x 52mm - In the Wall Variant

Package Contents

• 1 x STEVIE EV Charger
• 1 x Toughened Plastic Sleeve (On Wall Version Only)
• 1 x Metal Cage (In Wall Version Only)
• 1 x Pearl White Fascia
• 1 x 7.5m Charger Cable (Tethered Version Only)
• 1 x Pearl White Cable Holder (Tethered Version Only)
• Fixings
