Snom MeetingPoint Extension Microphones

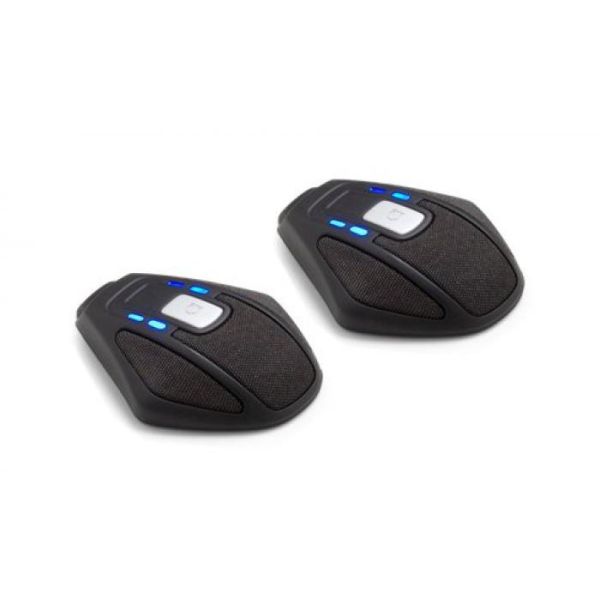

Snom Extension Microphones – Extending the Range of your MeetingPoint

These additional microphones for the Snom MeetingPoint extend the maximum audio radius of your conference telephone to 70m². The integrated OmniSound® software automatically detects the additional microphones and the working range of the Snom MeetingPoint.

Features

• Small and Lightweight
• Automatic Detection
• Compatible with Snom MeetingPoint Audio Conference Phone
• Easy to Use and Set Up
• OmniSound software that Detects Additional Microphones
• Crystal Clear Audio, No Matter what your Distance from the MeetingPoint
• Extend the Audio Radius of your Conference Phone by up to 70m²

General Information

• Dimensions - Height - 77mm - Diameter - 240mm
• Display - Background-Lit Graphical LCD,128x64 Pixels
• Weight - 1kg
• Keypad - Alphanumeric 0-9, *.#, Dial, Mute, Increase Volume, Menu, Conference, Recording,Volume Control, Call End
• 5 Keys for Navigation In the Menu System
• Microphone - Circular (360°) Recording Characteristics
• Reception Range - Up to 30 m² - 150-15000 Hz playback
• Volume  - 90 db SPl 0.5m. Equalizer Function
• Anti-Theft Protection - Kensington Security Slot

Connections

• Network Connection - 1 x RJ45
• Power - PoE 10/100MBit
• External Power Adapter - 100-2400 VAC/14VDC
• External Microphones - Modular 4/4 Possible

Conditions

• Temperature - 5°–40° Celcius
• Air Humidity - 20-80%
• Reverberation Time - 0.5 S Rt 60
• Background Noise - 45 dbA

Standards

• Telecom: TBR21, 47 CFR Part 68/Tia, IC CS-03 Issue 1999/01/01
• EMC: EN301 489-1,3 EN300 220-1,2 FCC Subpart B and C
• Electrical Safety: UL 60950-1, EN 60950-1:200
