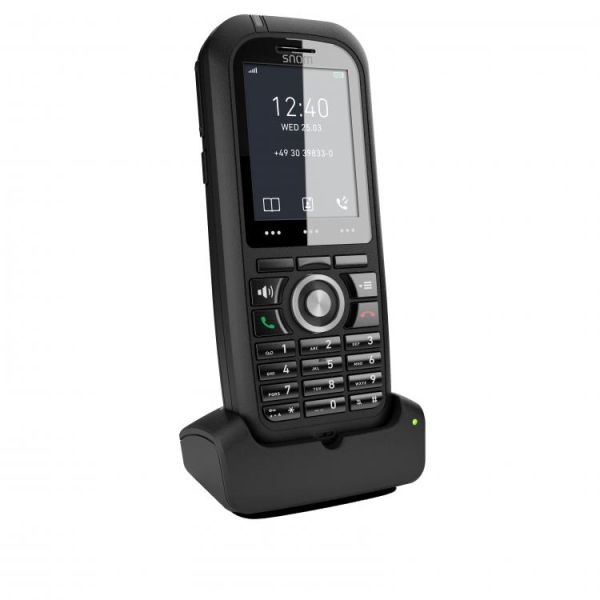

Snom M80 Ruggedised DECT IP Handset

Snom M80 Ruggedised DECT IP Handset

IP65 Protected DECT Handset

The Snom M80 is the perfect all rounder for indoor and outdoor use. Robust, durable, lightweight and compact, Its IP65 rating and MIL-STD 810g Certification means its able to withstand falls of up to two metres and is protected from dust and water splashes, making it an ideal device for environments such as Construction Sites, Warehouses and any other area where the Handset maybe exposed to the above elements.

Weighing only 120g the Snom M80 also has Integrated Bluetooth and an Integrated BLE tag for a mobile working day. All widely used Headsets can be connected to the Telephone, but the Snom Bluetooth Beacons also open up completely new application possibilities, from Alarm Protection to Live Tracking of the Devices.

The modern DECT Telephone is also state of the art thanks to its high resolution LED Colour Display, Integrated Bluetooth, Best HD Audio and Vibration Alarm. Furthermore there is a high performance Rechargeable Battery that provides up to 12 hours of talk time.

The Snom M80 Handset is Moderm, Compact and Heavy Duty, an ideal companion for both Indoor and Outdoor use in everyday business.

Snom M80 Benefits

• IP65 Protected Handset
• HD Audio Support
• Ruggedised And Robust Design
• Alarm Key
• Integrated Bluetooth LE
• Large Temperature Range
• Integrated Belt Clip
• HAC Compliant
• Vibration Alarm
• Multi-Colour LED
• 200 Hours Standby
• OTA Updates
• Backlit Keypad
• MIL-STD-810g, 516.6 Tested
• Compatible With Existing Base Stations - Snom M700 Base Station & Snom M900 Base Station

Technical Specifications:

Hardware Specifications

Handset

• Weight - Approximately - 138g - Handset with Battery & Belt Clip
• Dimensions - Approximately - 122 x 48 x 22 mm (L x W x D)
• 3.5mm Standard Jack for Wired Headsets
• Antenna Diversity - Two Internal Omni-Directional Antennas for Better Transmission and Reception
• Hearing Aid Compatible (HAC)
• Bluetooth LE for Headset Connection and Positioning
• Alarm Key on the Top of the Handset
• Drop Test 2m
• IP Protected Housing

Battery

• Type - Lithium-ion - 1100mAh, 3.7V, 4.1W
• Talk Time - Wideband - Up to 12 Hours
• Talk Time Narrowband - Up to 17 Hours
• Standby Time - Approximately 200 Hours - 10 Days

Charger

• Input - 5V Dc, 2A
• Charging Indicator - Green LED - Light is on When Handset is Charging in Cradle
• USB Port on Charging Cradle for Daisy Chaining a Second Cradle

Power Adapter

• Input Power - 100-240 AC Volt, 50/60 Hz, 300mA
• Output Power - 5V 2A
• Plug - Interchangeable Clips - EU and US Clips Included

Range

• Indoors - Up to 50 Metres
• Outdoors - Up to 300 Metres

DECT

• Frequency Bands - 1880-1900 MHz (EU), 1920-1930 MHz (US)
• Output Power - EU < 250 mW, USA < 100 mW
• Protocols - DECT, DECT 6.0
• Wideband Voice
• Authentication / Encryption of Base and Handset
• DECT Band Auto-Sensing

User Interface

• Display - 5cm (2 Inches) Diagonal, 240 x 320 Pixels, 262k TFT Colour LCD with Backlight
• Backlit Keypad With 24 Keys - Standard ITU Telephone Keypad - 12 Keys, 4x3 With Star and Pound Hash Key, Three Context Sensitive Function Keys, 5 Navigation Keys - Left, Right, Up, Down, OK, Off Hook Key, Cancel Key, Speakerphone Key with Red LED When Speakerphone is on, Menu Key, Three Side Keys - Volume Up/Down, Mute, Alarm Key on Top of the Handset - 28 Keys in Total
• Comfortable and Intuitive Menu Structure
• Selection of Ringtones
• Tri-Colour LED Indication of Missed Calls/New Voice Messages, Low Battery
• Speakerphone
• Mute Microphone
• Vibration Alarm

Menu Languages

• English, German, French, Italian, Spanish, Dutch, Portuguese, Swedish, Turkish, Danish, Norwegian, Polish, Russian, Croatian, Serbian, Slovenian

Phone Functions with Compatible Base Stations

• Two Simultaneous Calls
• Local Directory with 250 Contact Entries
• Central Directory (Common Local Directory on Base or External Directory via LDAP)
• 8 Speed Dial Numbers (Number Keys 2 - 9)
• Caller Identification (CLIP)
• Redial (Via Dialed Calls List)
• Call Waiting
• Auto Answer
• Call Lists (All Calls, Missed Calls, Received Calls, Dialed Calls) - 50 Entries in Total
• Hold
• Call Swapping (Active Call and Call on Hold)
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conference on the Phone
• DND Mode - Do Not Disturb
• Hide Own Outgoing ID (CLIR)
• Missed Call Notification
• MWI - Voice Message Waiting Notification

Installation

• Automatic Registration to Extension Set on Base
• Software Update - Over the Air Via Base Station
• Date and Time Synchronisation from Base Station

Compatible Base Stations

• M300 Single Cell Base
• M700 DECT Single Cell/Multicell Base Station
• M900 DECT Multicell Base

Snom M80 Ruggedised DECT IP Handset Package Contents

• Snom M80 Handset
• Basic Manual
• Li-ion Battery 1100mAh
• USB Charging Dock - Includes US Plug Socket
