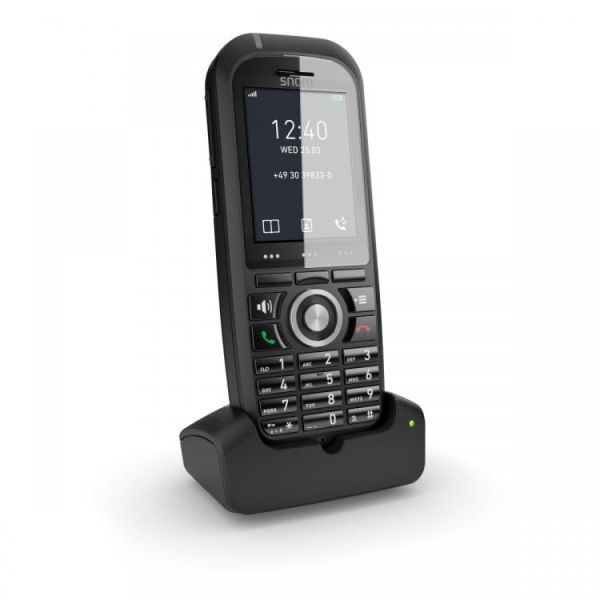

Snom M70 Ruggedised DECT IP Handset

Snom M70 Ruggedised DECT IP Handset

Designed to be Used With Any of Snom's Base Stations

The Snom M70 DECT Handset is designed to be used with any of Snom's DECT Base Stations including the new Snom M900 Multicell System, its ideal for workers in environments such as Offices, Warehouses, Retail and Premises that are outdoors.

The Handset is light and compact as well as being robust and manufactured to a high standard, with a high quality protective outer cover. The M70 not only cushions the occasional fall, it is also protected to the MIL-STD-810g industry Standard and can easily withstand falls of up to two metres, making the Snom M70 the perfect companion in the Office, in a Warehouse or in Outdoor Premises.

In addition to its outstanding manufacturing quality, the modern DECT Telephone also has a high resolution LCD Colour Screen and enables Wireless technology in the best HD audio quality at long range. All well known Bluetooth Headsets can be paired with the M70 to further increase telephone comfort.

The M70 has a wide range of telephony functions which include a freely programmable Alarm Button on the top of the device, this Button can be used to call for help in an emergency and can even be used to open doors and much more.

The new integrated Bluetooth Tag which in combination with the Snom BLE Beacons enables a variety of new functions. The Snom M70 is a lightweight, versatile and Modern Office DECT Phone, its the perfect addition to any mobile workplace.

Snom M70 Benefits

• HD Audio Support
• Ruggedised And Robust Design
• Alarm Key
• Integrated Bluetooth LE
• Large Temperature Range
• Integrated Belt Clip
• HAC Compliant
• Vibration Alarm
• Multi-Colour LED
• 200 Hours Standby
• OTA Updates
• Backlit Keypad
• MIL-STD-810g, 516.6 Tested
• Compatible With Existing Base Stations - Snom M700 Base Station & Snom M900 Base Station

Technical Specifications:

Hardware Specifications

Handset

• Weight - Approximately - 120g - Handset with Battery & Belt Clip
• Dimensions - Approximately - 118 x 46 x 22 mm (L x W x D)
• 3.5mm Standard Jack for Wired Headsets
• Antenna Diversity - Two Internal Omni-Directional Antennas for Better Transmission and Reception
• Hearing Aid Compatible (HAC)
• Bluetooth LE for Headset Connection and Positioning
• Alarm Key on the Top of the Handset
• Drop Test 2m

Battery

• Type - Lithium-ion - 1100mAh, 3.7V, 4.1W
• Talk Time - Wideband - Up to 12 Hours
• Talk Time Narrowband - Up to 17 Hours
• Standby Time - Approximately 200 Hours - 10 Days

Charger

• Input - 5V Dc, 2A
• Charging Indicator - Green LED - Light is on When Handset is Charging in Cradle
• USB Port on Charging Cradle for Daisy Chaining a Second Cradle

Power Adapter

• Input Power - 100-240 AC Volt, 50/60 Hz, 300mA
• Output Power - 5V 2A
• Plug - Interchangeable Clips - EU and US Clips Included

Range

• Indoors - Up to 50 Metres
• Outdoors - Up to 300 Metres

DECT

• Frequency Bands - 1880-1900 MHz (EU), 1920-1930 MHz (US)
• Output Power - EU < 250 mW, USA < 100 mW
• Protocols - DECT, DECT 6.0
• Wideband Voice
• Authentication / Encryption of Base and Handset
• DECT Band Auto-Sensing

User Interface

• Display - 5cm (2 Inches) Diagonal, 240 x 320 Pixels, 262k TFT Colour LCD with Backlight
• Backlit Keypad With 24 Keys - Standard ITU Telephone Keypad - 12 Keys, 4x3 With Star and Pound Hash Key, Three Context Sensitive Function Keys, 5 Navigation Keys - Left, Right, Up, Down, OK, Off Hook Key, Cancel Key, Speakerphone Key with Red LED When Speakerphone is on, Menu Key, Three Side Keys - Volume Up/Down, Mute, Alarm Key on Top of the Handset - 28 Keys in Total
• Comfortable and Intuitive Menu Structure
• Selection of Ringtones
• Tri-Colour LED Indication of Missed Calls/New Voice Messages, Low Battery
• Speakerphone
• Mute Microphone
• Vibration Alarm

Menu Languages

• English, German, French, Italian, Spanish, Dutch, Portuguese, Swedish, Turkish, Danish, Norwegian, Polish, Russian, Croatian, Serbian, Slovenian

Phone Functions with Compatible Base Stations

• Two Simultaneous Calls
• Local Directory with 250 Contact Entries
• Central Directory (Common Local Directory on Base or External Directory via LDAP)
• 8 Speed Dial Numbers (Number Keys 2 - 9)
• Caller Identification (CLIP)
• Redial (Via Dialed Calls List)
• Call Waiting
• Auto Answer
• Call Lists (All Calls, Missed Calls, Received Calls, Dialed Calls) - 50 Entries in Total
• Hold
• Call Swapping (Active Call and Call on Hold)
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conference on the Phone
• DND Mode - Do Not Disturb
• Hide Own Outgoing ID (CLIR)
• Missed Call Notification
• MWI - Voice Message Waiting Notification

Installation

• Automatic Registration to Extension Set on Base
• Software Update - Over the Air Via Base Station
• Date and Time Synchronisation from Base Station

Compatible Base Stations

• M300 Single Cell Base
• M700 DECT Single Cell/Multicell Base Station
• M900 DECT Multicell Base

Snom M70 Ruggedised DECT IP Handset Package Contents

• Snom M70 Handset
• Basic Manual
• Li-ion Battery 1100mAh
• USB Charging Dock - Includes US Plug Socket
