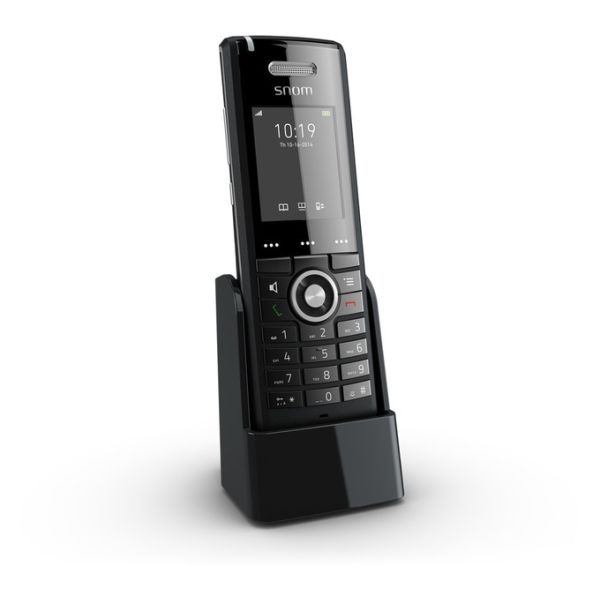

Snom M65 SIP DECT Cordless Handset For Snom M300 & M700

Professional DECT telephony
Combining versatile business communication functionality with the intuitive features of the mobile carrier world, the snom M65 is ideally suited to fast-paced professional telephony.

Wide coverage
With its sleek appearance and comprehensive range of features, the M65 is ideal for users who expect more of their phone system and require mobile coverage across several floors or throughout large buildings.

Up-to-date User Interface
The M65 has a large backlit 2” color display and a backlit keypad for easy dialing in poor light conditions. Wideband audio ensures crystal-clear voice quality for your calls, and, in addition to 6 polyphonic ringtones, the handset also features vibration alert for incoming calls.
An integrated tricolor LED keeps you instantly informed of missed calls, voicemail messages, and low battery status. The lithium-ion battery has a standby time of up to 250 hours and up to 17 hours of talk time for heavy usage between charging.

Comfort features
When the M65 is used with a snom M700(1) or M300(2) base you enjoy many phone system features such as voicemail, automatic call forwarding, call lists, caller identifi cation, or direct search in the corporate directory

Hardware Specifications
Handset

• Weight: approx. 123g (handset with battery)
• Dimensions: approx. (mm) 141x48x24 (LxWxD)
• Connector: 3.5 mm standard phone jack for wired headsets
• Antenna diversity (two internal omni-directional antennas for better transmission and reception)
• Hearing aid compatible (HAC)

Battery

• Type: Lithium-ion, 1100mAh, 3.7V, 4.1 W
• Talk time WB: Up to 16 hours
• Talk time NB: Up to 18 hours
• Standby time: Approx. 200-250 hours (10 days)
• Charging time: Up to 8 hours from empty

Charger

• Input: 5,5V DC, 600mA
• Connector: 5.5 mm DC jack
• Charging indicator: Blue LED - light is on when handset is charging in cradle

Power Adapter

• Input power: 100-240 AC Volt, 50/60 Hz, 250mA
• Output power: 5.5V DC, 600mA
• Plug: Patented interchangeable clips. EU and US clips included, UK clip available optionally

Range

• · Indoors: Up to 50 meters
• · Outdoors: Up to 300 meters (for indoor use only)

DECT

• Frequency bands:
• 1880-1900 MHz (EU)
• 1910-1930 MHz (Latin America)
• 1920-1930 MHz (US)
• Output power: EU < 250 mW, USA < 140 mW
• Protocols: GAP DECT, DECT 6.0, CAT-iq1.0 (wideband)
• Wideband voice
• Authentication/encryption of base and handset

Standards Conformance

• EN 301406 (TBR6)
• EN 30176 - 2 (TBR10)
• EN 60950 - 1 (Safety)
• IEC60950 -1
• CSA c-CSA-us / UL60950 - 1
• EN 301489 (EMC, ESD)
• RF (EMF, SAR)
• FCC part 15D, conducted & radiated
• FCC part 15B
• RSS213
• TIA 1083, FCC part 68/CS-03 part V (HAC compliance)

User Interface
Display:

• 5 cm (2“) diagonal
• 176 x 220 pixels
• 262K TFT color LCD with backlight
• 8 lines, height 16 pixels/line, 16 characters per line: 1 status line, 6 lines for menus or context area, 1 context-sensitive function key line
• Backlit keypad with 24 keys:
• Standard ITU telephone keypad, 12 keys, 4x3, with star and pound/hash key
• Three context-sensitive function keys
• 5 navigation keys (left, right, up, down, OK)
• Off-hook key, cancel key
• Speakerphone key with red LED when speakerphone is on
• Menu key
• Three side keys (volume up/down, mute)
• Comfortable and intuitive menu structure
• Selection of ring tones
• Tricolor LED indication of missed calls/new voice messages, low battery
• Speakerphone
• Mute microphone

Menu Languages

• English, German, French, Italian, Spanish, Dutch, Portuguese, Swedish, Turkish, Danish, Norwegian, Polish

Phone funtions with M700 base station

• Two simultaneous calls
• Directory with 100 contact entries
• Central directory (common local directory on base or external directory via LDAP)
• 8 speed dial numbers (number keys 2 - 9)
• Caller identification (CLIP)
• Redial (via dialed calls list)
• Call waiting
• Auto answer
• Call lists (all calls, missed, received, dialed calls), 50 entries total
• Hold
• Call swapping (active call and call on hold)
• Blind and attended transfer
• Call forwarding
• 3-way conference on the phone
• DND mode (do not disturb)
• Hide own outgoing ID (CLIR)
• Missed call notification
• MWI - Voice message waiting notification

Codecs, Audio

• Codec negotiation
• CAT-iq wideband audio G.722, G.726/G.711

Installation

• Automatic registration to extension set on base
• Software update: Over the air via M700 base station
• Date and time synchronization from base station
