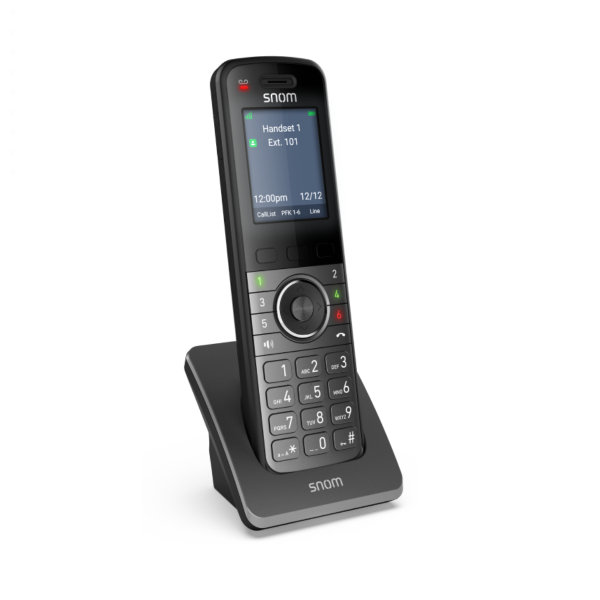

Snom M55 DECT Handset

About the Snom M55 DECT Handset

Part of the new Snom M500 Dual Cell System, along with the Snom M500 Dual DECT Base Station and the Snom M58 DECT Deskphone (Both Sold Separately) the Snom M55 DECT Handset is Snom's all rounder in the DECT environment, it impresses with a robust design and haptics. Its large 2.4 Inch Colour Display provides a clear and concise view of the intuitive user interface.

In addition to proven system features including line monitoring, hold / retrieve, call pickup, broadcast and intercom groups can be programmed on the 6 LED Function Keys.

A powerful 1500 mAh battery allows up to 12 hous of talk time in HD audio quality, Bluetooth Headsets are also supported in addition to wired Headsets.

All settings can be made centrally via the Snom M500 Base Station using zero touch provisioning and software updates are carried out over the air.

The Snom M500 Dual DECT Base Station is required to connect to your network and is sold separately.

Features:

6 Programmable LED Function Keys (SCE)

The 6 keys can be assigned just like BLF keys, thanks to the Shared Call Emulation Support.

Backlit Keypad

The Snom M55 has backlit keys, ideal for use in low lighting conditions.

Bluetooth

Bluetooth Headset Support.

DECT

The M55 communicates using the radio standard for telecommunications - DECT (Digital Enhanced Cordless Telecommunications.

Belt Clip

Includes a Belt Clip, allows the phone to be clipped to a belt or jacket.

Headset Connectable

The M55 DECT Handset has a 3.5mm Headset Port, allowing a Headset with a 3.5mm Jack Adapter to be connected.

Long Standby Time

Up to 240 Hours of standby time.

OTA Updates

The M55 can receive updates via radio, i.e OTA - Over the Air, as a rule the DECT Handsets must be in their Charging Cradle for the updates to take effect.

Shared Call Emulation (SCE)

Shared Call Emulation is very similar to BLF on Desk Phones, it allows monitoring, viewing, answering, holding and transferring calls to be done via thje programmable keys in the DECT environment.

Specifications:

Display and Indicators

• Display - TFT Liquid Crystal Display (LCD), High Colour Backlit Display
• Resolution - 240 x 320 Pixels
• Size (Diagonal) - 2.4 Inches (61mm)
• 9 LED Indicators - Notification of Missed Calls, Message Waiting Indication (MWi) - 1 Red LED, Function Key Status Indication - 6 Dual Colout LED's (Red / Green), Audio Key Status Indication - 1 Red LED (on the Charging Cradle)

Keypad and Function Keys

• 31 Hard Keys in Total
• 12 Keys (Standard ITU Telephone Keypad), Backlit
• 5 Way Navigation Key
• 3 Context Sensitive Function Keys (With Dual Colour LED's), Speakerphone with Red LED, Volume +/- (Rocker)
• 2 Dedicated Function Keys - Off Hook, PFK Page. Keypad Lock

Interfaces and Connections

• M55 Power Options - Handset - Battery 3.7V, 1,500 mAh, 5.55 W, Lithium-Ion, Rechargeable, Up to 240 Hours Standby Time, Up to 19 Hours Narrowband Talk Time, Up to 12 Hours Wideband Talk Time, Charging Cradle - Power Adapter - 100 - 240V AC / 50 - 60 Hz / 300mA, 5V DC / 2A, USB Powering via USB-A Port / Cable
• Wired Interface - Headset - 3.5mm Audio Jack, Wireless Interfaces - DECT, HeadsetBluetooth

Audio Features

Handset - Hearing Aid Compatible, Speakerphone Mode, Headset Connectivity

Directory Support and Call Features

• Directory Support - Local Directory with up to 200 Entries, LDAP Server Based Directory, Central Directory on the Base Station with up to 500 Shared Entries, XML Phonebook Support
• Outgoing Call Features - Speed Dialing, Redial Via Dialed Calls List, Caller Identification (CLIP), Intercom, Paging
• Incoming Call Features - Call Waiting / Swapping, Auto Answer, Call Diversion
• Connected Call Features - Hold, Blind Call Transfer, Attended Call Transfer, 2+1 Local Conferencing, Call BArging, Call Park / Unpark
• Related Features - Call History Lists, Shared Call Emulation, Extension Monitoring (BLF - Busy Lamp Field), Call Pickup, Paging Zones, Intercom Groups

DECT Technology and Features

• Standard - DECT - Authentication / Encryption of Base an Hhandset, Seamless Handover, Wideband Audio
• Frequency Band - 1,880 - 1,900 MHz, Output Power -  < 250 mW
• Coverage - Up to 50m Indoors, UP to 300m Outdoors
• Related Features - Software Upgrade Over the Air (SUOTA), Auto Registration when not Registered, Date and Time Synchronisation from Base Station

Network Technology

• Bluetooth - Headset Profile - HSP, Wireless Range - 10m Approx

Package Contents

• Snom M55 DECT Handset
• Battery, Charging Cradle
• Power Adapter
• Quick Installation Guide
