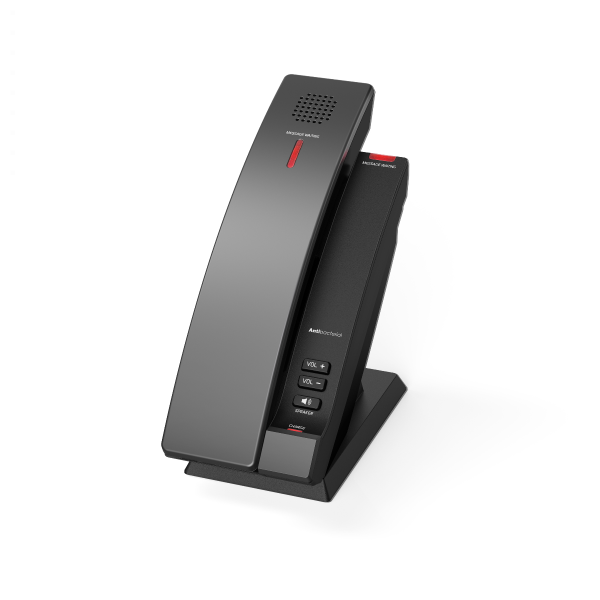

Snom HD101 Hotel / Hospitality Phone

A Modern, DECT over IP Terminal, Cordless Design Providing the Highest Possible Freedom of Movement.  Designed with Anti-Bacterial Housing that Protects Against Bacteria and Germs

About the Snom HD101

The Snom HD101 is a comfortable, slimline and modern Hotel Phone, that fits into any environment. With its cordless DECT Handset, the Snom HD101 offers guests the greatest possible freedom of movement, and the most important features that include Speed Dialing to all Hotel Facilities and Hotel Rooms, Handsfree Calling, Hold and Mute.

It can be expanded  with up to 3 Additional HD1 DECT Handsets if needed.

The PoE (Power over Ethernet) power supply and the Gigabit Ethernet Connection enable the Phone to be integrated into a centrally managed future proof network infrastructure.

All of the settings on the HD101 can be administered centrally. Antibacterial Housing protects against germs and bacteria,and makes it easier to clean.

The large visual LED call and message indicators alert guests to any calls or waiting messages. Individual labeling options offer that personal touch for exclusive Hotel branding and dialing functions.

No storage of personal data such as dialed numbers are stored in the phone, maintenance and setup is done remotely.

Antibacterial Housing

The Snom HD101 has been designed with Antibacterial Housing which is certified according to the Japanese JIS-Z2801, meaning that the Antibacterial Housing protects against germs and bacteria.

DECT

The Snom HD101 communicates using the radio standard for telecommunications called DECT (Digital Enhanced Cordless Telecommunications)

Power over Ethernet (PoE)

The HD100 receives power via a connected Network Cable - this is providing the network switch used supports this and has enough power to supply all connected devices.

Due to the Snom HD101 being Power over Ethernet (PoE) a Power Supply Unit (PSU) is not supplied with the Phone.

Features

• HD Audio
• DECT Handset
• Antibacterial Housing
• Power over Ethernet (PoE)
• Large LED Call / Message Indicator
• 4 Programmable Function Keys
• 3 Dedicated Audio Keys
• Desktop and Wall Mountable

Technical Specifications:

Indicators and Keys

• 6 LED Indicators - 5 on the Cordless DECT Handset -1 Red LED for Flash / Talk Key Indication, 1 Red LED for Mute Status Information, 1 Red LED for Speakerphone Mode, 1 Red LED for Hold Status Indication, 1 Red LED for Low Battery / Charging Indication, 1 Red LED Indicator on the Telephone Base for Call Status Information / Message Waiting Indication (MWI)
• 31 Hard Keys in Total on Cordless DECT Handset - 12 Keys (Standard ITU Telephone Keypad), Backlit, 4 Dedicated Audio Keys - Mute with Red LED, Speakerphone with Red LED, Volume +/- (Rocker), 2 Programmable Function Keys for Speed Dialing, 5 Dedicated Function Keys for Talk with Red LED, Emergency, off Hook, Hold with Red LED and Message
• 3 Dedicated Audio Keys for Speakerphone with Red LED, Volume +/-, 4 Programmable Function Keys - 2 for Speed Dial and 2 for Emergency and 1 Dedicated Function Key on Telephone Base

Audio Devices and Features

• Telephone Base - Casing Microphone, Casing Speaker, Speakerphone Mode via Dedicated Function Key)
• Cordless DECT Handset - Microphone, Handset Earpiece, Hearing Aid Compatible (HAC)
• Built in Assignable Ringtones

Interfaces and Connections

• Power Options - Power over Ethernet (PoE) - IEEE 802.3af, Cass 2, Power Adapter (Not Included) - 100 - 240 V AC / 50/60 Hz / 500 mA / 5 V DC/ 2 A
• Cordless DECT Handset - Battery AAA-NiMH, 2.4V, 550 mAh, Preinstalled, Removable, Rechargeable, Up to 7 Hours of Talk Time, Up to 120h of Standby Time, Charging Time - Up to 16 Hours
• Wired Interfaces - Ethernet 1 Gbit/s - RJ45-8P8C Socket, Corded Handset - RJ9-4P4C Socket, Power Adapter Coaxial Power Connector (Socket)
• Wireless Interfaces - DECT

Call Features

• 1 SIP Identity / Account
• Speed Dialing via Function Keys
• Mute Microphone (Via Dedicated Function Key)
• Multicast Paging
• Hold via Dedicated Function Key
• Quick Call Answer - by Simple Pickup from the Base / Charger

DECT Technology and Features

• Standard - DECT, Up to 4 Handsets in Total, Wideband Audio
• Frequency Band - EU & UK: 1,881.792 - 1,897.344 MHz
• Easy Registration to Compatible Base Stations

Interoperability

• Interoperable with all Major IP-PBX Platforms

Package Contents

• Telephone Base
• Cordless DECT Handset
• Foot Stand
• Wall Mount Kit
• 2 Ethernet Cables - Cable Length Approximately 140mm / 2m
• Quick Installation Guide
