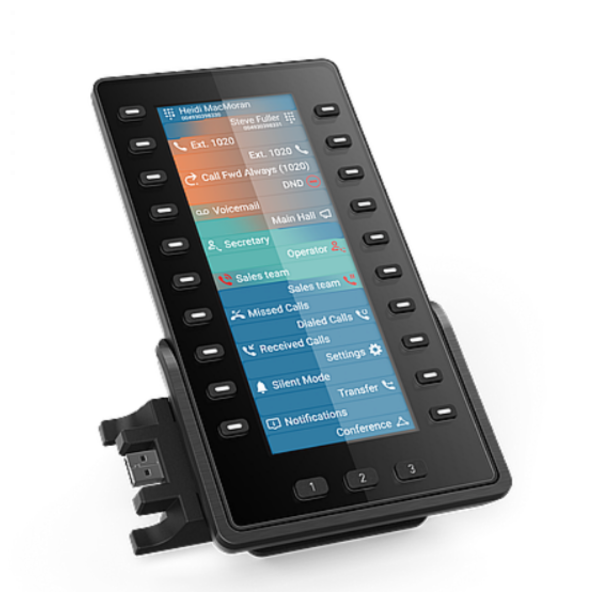

Snom D8C Expansion Module

The Snom D8C is a Stylish Expansion Module Designed for use with the Snom D8xx Series of IP Phones

About the Snom D8C

The Snom D8C is an Expansion Module for all D8xx Series of Telephones.

The Expansion Module offers a large, high resolution Colour Display with a clear user interface, that significantly enhances your user experience. Connect easily to the D8xx Series of Telephones via USB - Plug it in and you are ready to go.

The Snom D8C expands the D8XX Series of Telephones with an additional Large Screen and a large range of application options.

The 20 physical (60 virtual) programmable LED Function Keys let you quickly identify the status of a colleague, forward calls, and more. Up to three of the Snom D8C Expansion Modules can be added to each Telephone for a more comprehensive overview.

Configuration of the Snom D8C is straightforward and can be done either via the Telephone or via the Snom Web Interface.

Users can decide what and how things are displayed on the D8C, it supports several styles and symbols and even customised backgrounds.

Cascadable

For Environments where an overview of many contacts is required, up to 3 Snom D8C Expansion Modules can be added to each Telephone.

60 Programmable Keys

20 physical with multicoloured LED's - the keys can be assigned to all functions available on Snom Telephones including Speed Dialling and Direct Dialling Extensions. The multicolour LED's indicate the call and presence status of a direct dial.

Clear Design and Variable Functions

The Snom D8C has a large, High Resolution Colour Display, the background and style of the displayed functions can be selected from a variety of options.

Features

• 6.8 Zoll (17.2 cm) TFT Liquid Crystal Display
• Add up to 3 D8C Expansion Modules to Each Telephone
• SmartDisplay, Multi-Page Display
• SmartLabel, Easy USB Plug and Play
• Configurable via Host Telephone
• 60 Programmable Buttons on 3 Pages

Technical Specifications:

Display and Indicators

• Display - TFT Liquid Display (LCD), True Colour, Backlit
• Size - Diagonal - 172mm (6.86 Inches)
• Size 9W x H) - 60mm x 16100
• Resolution - 1,280 x 480 Pixels
• 23 LED Indicators - Function Key Status Indication - 20 Multicolour LED's, Page Key Indication - 3 Green LED's

Function Keys

• 23 Hard Keys in Total  - 20 SmartLabel Keys (With Multicolour LED), Key Mapping of up to 60 Functions (20 Keys) x 3 Pages, 3 Dedicated Function Keys - Page 1/ 2 / 3

Interfaces and Connections

• Power Options - USB Powered - 5V
• Power Adapter - When More than One D8C Modules is used with One Phone, a Power Supply Unit Needs to be Connected to the Second Module (Power Supply Unit Not Included)
• Wired Interfaces - Daisy Chaining, USB Powering, USB 2.0 Type-A Port, USB 2.0 Type-A Plug
• Power Adapter - Coaxial Power Connector (Socket)

User Interfaces and Setup

• Plug and Play
• Configurable via Host Phone
• Customisation - Theme and Icon Support, Custom Background Image Support

Package Contents

• Snom D8C Expansion Module
• Footstand
• Screws Quick Installation Guide
