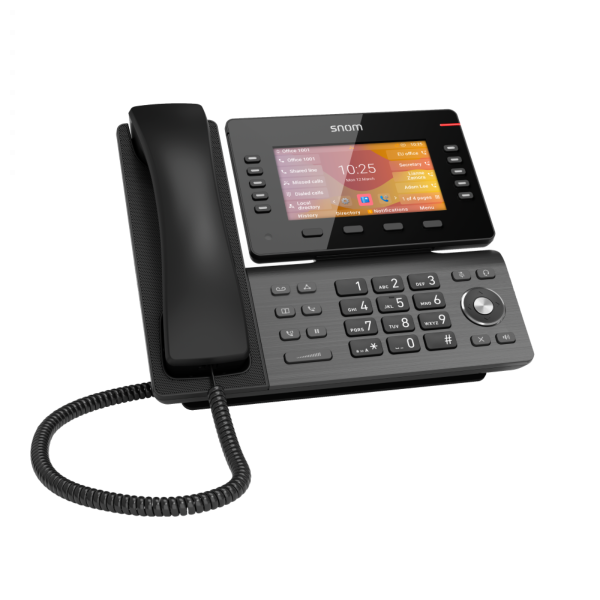

Snom D865 IP Desk Phone (No PSU)

About the Snom D865

The Snom D865 is a true all rounder, its perfect for those who work intensively with their phone, offering the correct solution for most tasks in everyday offices. Equipped with WiFi, Bluetooth and 2 USB ports as well as 10 freely programmable function keys, the Snom D865 fulfills every wish.

The 40° adjustable 5 Inch LCD display has crystal clear colours and blends perfectly into any office environment, regardless of the lighting conditions. The HD audio voice quality featuring advanced noise reduction is simply outstanding. It is also hearing aid compatible and has integrated Bluetooth & Wi-Fi, furthermore you can connect a DECT Headset via Dongle. The D865 is well designed and very well thought out.

Elegant and Tidy Design

The very high quality gunmetal and elegant design make the Snom D865 an eye catcher on every desk.

Light Sensor

The D865 has a sensor that measures light in the environment. Based on this the display brightness and thus the power consumption can be regulated.

Self Labelling Function Keys

Thanks to the 10 programmable function keys, you can customise your Snom D865 to suit your needs, allowing you to make calls or perform other important functions quickly and easily at the touch of a button.

Plug & Play

The Snom D865 is a plug and play device, meaning that you can use accessories connected via USB without having to reboot the phone.

Power over Ethernet (PoE)

The D865 can receive power from an connected network cable (PoE), providing that the network switch used supports this and has enough power to supply all the connected devices. Please note that if Power over Ethernet is not available a Power Supply (PSU) will need to be purchased.

To Order the Snom 10W Power Supply (PSU) Please Click Here

OpenVPN

The D865 can be upgraded to OpenVPN Client with an additional firmware upgrade to connect it to an OpenVPN server.

Integrated Phonebook

The Snom D865 has an integrated phonebook.

Security (TLS & SRTP)

The D865 supports all common security protocols such as TLS, SIPS, SRTP etc.

Features

• Large Tiltable 5 Inch IPS Colour Display
• 2 USB 2.0 High Speed Connections
• Dual Band Wi-Fi and Integrated Bluetooth 5.0
• 10 Programmable Function Keys
• Optimised Noise Reduction
• Security - TLS & STRP
• HD Audio, Open VPN
• Integrated Phonebook
• Port and Possible Software to Connect a Headset
• IPv6 & IPv4

Technical Specifications:

Display

• TFT Liquid Crystal Display (LCD), Tiltable, IPS Panel, Backlit
• Display Size - 110mm x 62mm (W x H)
• 5° (127mm) Display Size (Diagonal)
• 1280 x 720 Pixel Resolution

Indicators

• 15 LED Indicators - 1 Red Call Indication LED, 1 Red Message Waiting Indication (MWI) LED, 10 Multicolour Function Key Indication LED's, 3 Audio Indication LED's - 1 Red and 2 Green

Keypad & Function Keys

• 43 Hard Keys in Total
• Standard ITU Telephone Keypad - 12 Keys with Star and Pound/Hash Key
• 5 Way Navigation Key
• 4 Context Sensitive Function Keys
• Programmable Line / Function Keys - 10 Freely Programmable Line / Function Keys with Multicolour LED's, Multiple Key Occupancy uo to 36 Functions on 4 Pages
• Dedicated Audio Keys - 1 Mute Key with Red LED, 1 Speakerphone Key with Green LED, 1 Headset Key with Green LED, 1 Volume Control Rocker
• 7 Dedicated Function Keys - 1 Cancel Key, 1 Message Key with Red LED, 1 Directory Key, 1 Transfer Key, 1 Hold Key, 1 Conference Key, 1 Redial Key
• Keyboard Lock

Directory Support & Call Features

• 12 SIP Identities / Accounts - Up to 12 Simultaneous Calls
• Directory Support - LDAP (Server Based Directory), Local Directory with up to 50,000 Entries, Import/Export Phonebook (CSV, XML), XML Phonebook Support
• Outgoing Call Features - Speed Dialling Via Function Keys, Speed Dialling Via Keypad - 10 Numbers, URL Dialling, Local Dial Plan, Redial (Via Dialed Calls List), Automatic Redial on Busy, Caller Identification (CLIP), Calling Line Identification Restriction (CLIR), Call Completion (Busy/Unreachable - if Supported by PBX), Intercom, Multicast Paging
• Incoming Call Features - Call Waiting/Swapping, Call Blocking (Deny List), Dynamic Central Blacklist Check, Anonymous Call Blocking, Auto Answer, Call Forwarding, Call Deflection, Do not Disturb (DND) Mode
• Active Calls - Mute Microphone, Hold, Music on Hold - If Supported by PBX, Blind Call Transfer, Attended Call Transfer, 4 + 1 Local Conferencing, Call Park / Unpark - If Supported by PBX, Client Matter Code (CMC) - If Supported by PBX
• Related Features - Call History, Lists of Missed Received Dialed, Rejected and Deflected Calls, Extension Monitoring, Call Pickup - If Supported by PBX

Audio Devices, Codecs & Features

• Headset Connectivity - USB Headset via USB, Wired Headset via RJ9-4P4C, Compatible Wireless Headset via EHS, DECT Headset via Optional DECT Dongle, Bluetooth Headset via Integrated Bluetooth
• Corded Receiver - HD Audio, Hearing Aid Compatible (HAC), Frequency Range 150 Hz - 8 kHz, Noise Cancellation
• Speakerphone Mode - HD Audio, Frequency Range - 100 Hz - 8 kHz, Full Duplex, 2 Dedicated Microphones
• Audio Codecs - G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729, Opus
• Dual Tone Multi-Frequency Signaling (DTMF) - In-Band, Out-of-Band, SIP Info
• Related Features - Comfort Noise Generator (CNG), Voice Activity Detection (VAD), Audio Response Time, Adaptive Jitter Buffer, Packet Loss Concealment

Interfaces & Connections

• Wired Interfaces - 1 Coaxial Power Adapter Connector, 2 RJ45-8P8C Gigabit Ethernet Ports, 2 USB 2.0 Type A Ports for Compatible USB Headsets and Other Compatible Accessories, · 1 RJ9-4P4C Standard Connector for Corded Receiver, 1 RJ9-4P4C Standard Connector for Wired Headset Connection, 1 RJ12-6P6C Connector for Snom EHS Adapter
• Wireless Interfaces - Bluetooth 5.0, WLAN IEEE 802.11n/ac, DECT Optional via Snom USB DECT Dongle (Not Included)
• Sensors - Ambient Light Sensor, Hook Switch Sensor
• D865 Power Options - Power over Ethernet (PoE), IEEE 802.3af, class 3, Power Supply (PSU) 100 - 240 V AC / 50 - 60 Hz | 5 V DC (SELV) / 2 A / 10 W - Power Supply (PSU) not Included and is a separate purchase.

To Order the Snom 10W Power Supply (PSU) Please Click Here

Technologies and Protocols

• Network Technologies - OpenVPN, VLAN (IEEE 802.1Q)
• VoIP Related Protocols and Techniques - SIP (RFC 3261), SDP (RFC 3261), RTP (RFC 8866), RTCP (RFC 3550), RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN (RFC 5389)
• Secure VoIP Protocols -  SIPS (SIP over TLS), SRTP (RFC 3711), SRTCP
• Network Protocols - IPv4 / IPv6 (Dual Stack), DHCP, NTP, LDAP, LLDPMED, HTTP, TFTP, L2TP
• Secure Network Protcols - TLS V1.3 incl. Ciphers (Forward Secret & Authenticated), HTTPS, IEEE 802.1X (EAP-TLS - RFC 5216)
• Remote Management Protocols - TR-069, TR-069 Annex G (formerly TR-111), TR-369 (USP)

Basics

• Linux Operating System
• 3 Year Warranty

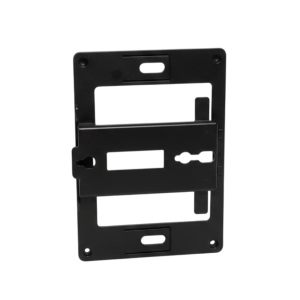

• Wall Mountable (Wall Mount not Included)

Dimensions & Weights

• 45mm x 243mm x 210mm without Footstand
• 165mm x 243mm x 193mm with Footstand
• Weight - 1.12kg Approximately

Compatible Headsets and Accessories

Snom A100M Monaural Headset

Snom A100D Binaural Headset

Snom A150 Wireless DECT Headset

Snom A170 Wireless DECT Headset

Snom A230 DECT USB Dongle

Snom Advanced Electronic Hook Switch (EHS)

Snom 10W Power Supply (PSU)

Package Contents

• Snom D865 IP Desk Phone
• Footstand
• Corded Receiver
• 1.5m (5ft Ethernet Cable)
• Quick Installation Guide (QIG)
