Snom D815W IP Deskphone - (No PSU)

A Stylish  and Powerful IP Phone That Makes Professional Telephony Easy

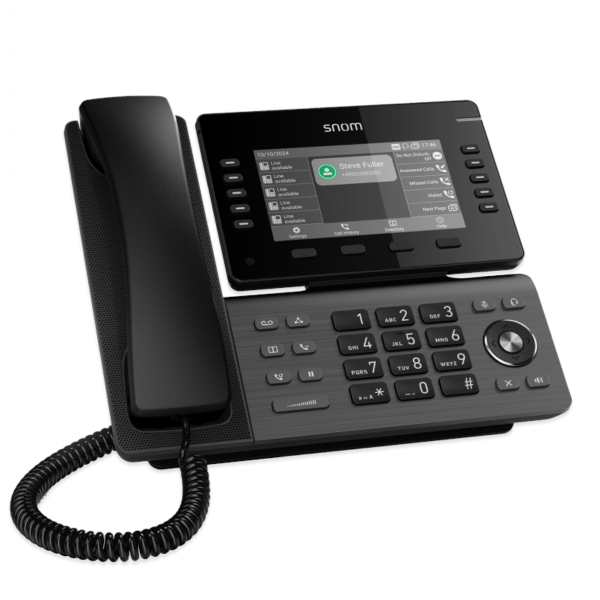

About the Snom D815W

The Snom D815W is more than just a phone, it's a must for every office. Being the larger model in the D8xx Series, Its 5 inch high resolution display offers a clear and intuitive interface, whilst the dual USB Ports enhance flexibility. With integrated Wi-Fi, you can stay connected anywhere in your office. The Snom D815W delivers exceptional audio quality and a sleek design, making it the ideal choice for modern businesses.

The D815W is a powerful IP Phone offering and elegant design and exceptional value and first class performance. Its 10 SmartLabel keys allow users to customise their phone to suit their preference.

Elegant Design

The elegant design of the Snom D815W ensures it fits perfectly into any office, its a state of the art product that meets Snoms high standards that customers have become acustomed to.

Large Colour Display

The 5 Inch TFT Colour Display with a Resolution of 480 x 272 Pixels ensures optimum visibility of the display information in any lighting conditions.

Self Labelling Function Keys

Personalise your workflow with 10 programmable function keys. Quickly initiate calls or execute tasks at the touch of a button.

Features

• Large 5 Inch IPS Colour Display
• 2 x USB 2.0 High Speed Connection
• Expansion Module Connectable
• Anti-Bacterial Housing
• SmartLabel, HD Audio
• Security (TLS and SRTP)
• 10 Programmable Function Keys
• Elegant Design, OpenVPN
• Built in Dual Band Wi-Fi

Technical Specifications:

Display and Indicators

• Display - TFT Liquid Crystal Display (LCD) - IPS Panel, True Colour Backlit, Size - (Diagonal) 127mm - 5 Inches, Size (W X H) - 110mm x 62mm, Resolution - 480 x 272 Pixels
• 15 LED Indicators - Call Status Indication - 1 Red LED, Message Waiting Indication (MWI) - 1 Red LED, Function Key Status Indication - 10 Multicolour LEDs, Audio Key Status Information - 3 LEDs (1 Red / 2 Green)

Keypad and Function Keys

• 43 Hard Keys in Total - 12 Keys (Standard ITU Telephone Keypad), 5 Way Navigation Key, 4 Context Sensitive Function Keys
• Programmable Function Keys - 10 SmartLabel Keys (with Multicolour LED), Key Mapping of up to 40 Functions (10 Keys x 4 Pages)
• 5 Dedicated Audio Keys - Mute (with Red LED), Speakerphone (with Green LED), Headset (with Green LED), Volume +/- (Rocker)
• 7 Dedicated Function Keys - Cancel, Message (with Red LED), Directory, Transfer, Hold, Conference, Redial, Keyboard Lock
• Connect Up to 3 Snom D8C Expansion Modules via USB

Audio Devices, Codecs and Features

• Casing Microphone, Casing Speaker - Frequency Range - 100 Hz - 8.0 kHz, Speakerphone Mode - Full Duplex, HD Audio, Acoustic Echo Cancellation (AEC)
• Corded Handset - Microphone, Handset Earpiece - Frequency Range - 150 Hz - 8.0 kHz, Noise Cancellation, HD Audio, Hearing Aid Compatible (HAC)
• Audio Codecs - G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729AB, GSM6.10(FR), Opus
• Dual Tone Multi-Frequency Signalling (DTMF / RFC2833), SIP Info - In Band, Out of Band
• Related Features - Comfort Noise Generator (CNG), Voice Activity Detection (VAD), Audio Response Time, Adaptive Jitter Buffer, Packet Loss Concealment (PLC)

Directory Support and Call Features

• 12 SIP Identities / Accounts, Up to 12 Simultaneous Calls
• Directory Support - LDAP (Server Based Directory), Local Directory with 2,000 Entries
• Outgoing Call Features - Speed Dialling via Function Keys, URL Dialling, Local Dial Plan, Redial (via Dialled Calls List), Automatic Redial on Busy, Caller Identification (CLIP),
• Calling Line Identification Restriction (CLIR), Call Completion (Busy / Unreachable, Intercom, Muiticast Paging
• Incoming Call Features - Call Waiting / Swapping, Auto Answer, Call Diversion, Call Barring / Blocking, Deny List, Anonymous Calls, Do not Disturb )DND) Mode
• Connected Call Features - Mute Microphone, Hold, Music on Hold (If Supported by PBX), Blind Call Transfer, Attended Call Transfer, 3 Way Option for Local Conferencing, Call Park / Unpark (If Supported by PBX), Client Matter Code (CMC) - (If Supported by PBX)
• Related Features - Call History Lists of Missed, Received, Dialled, Rejected and Deflected Calls, Extension Monitoring (Busy Lampfield, Call Pickup - (If Supported by PBX)

Interfaces and Connections

• Power Options - Power over Ethernet (PoE), IEEE 802.3af, Class 3, IEEE 802.3az (Optional via Software), Power Adapter - 100 - 240 V AC, 50 - 60 Hz, 5 V DC (SELV), 2 A, 10 W - (Power Adapter Not Included)
• Wired Interfaces - Power Adapter - Coaxial Power Connector (Socket), Network Connectivity -  2 × RJ45-8P8C Sockets (NET, PC) → Gigabit Ethernet (GbE), USB Connectivity - 2 x USB 2.0 Type-A Ports, Corded Handset - RJ9-4P4C Socket, Headset - RJ9-4P4C Socket, Snom EHS - Electronic Hook Switch - (Electronic Hook Switch Not Included)
• Wireless Interfaces - Third Party Headset Support - DECT via Optional Snom A230 DECT USB Dongle - (A230 Dongle Not Included)
• Network Connectivity - Optiona via Snom A210 - WLAN USB Dongle - (A210 Dongle Not Included)
• Sensors - Hook Switch Sensor

Package Contents

• Snom D815W IP Phone
• Corded Handset
• Footstand
• 1.5m Ethernet Cable
• Quick Installation Guide
