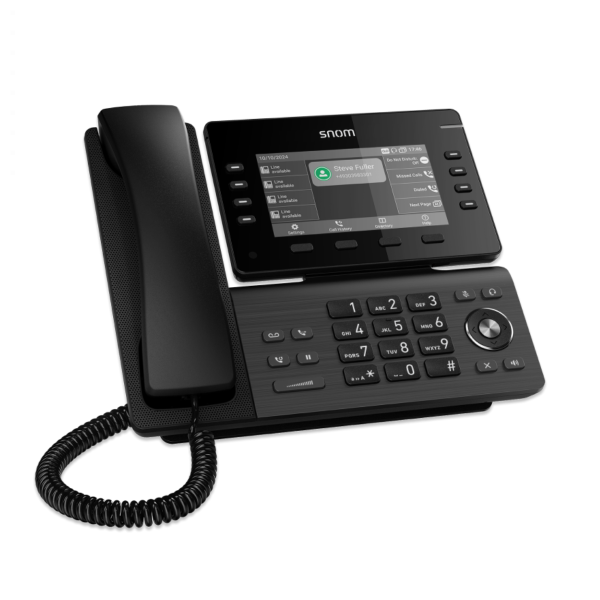

Snom D812 IP Deskphone - (No PSU)

The Perfect Solution and Perfect Companion for Every Office

About the Snom D812

The Snom D812 is a powerful yet affordable IP Phone designed for modern offices that are looking for a reliable communication device without having to break the budget. Its large, High Resolution Display provides a clear and intuitive user interface, whilst the 8 programmable SmartLabel Keys offer the flexibility to customise your workflow.

Its flexibility and adaptability make it the perfect choice for smaller teams who need efficient communication to larger call centres where stable and reliable telephony are a must.

Elegant Design

The elegant design of the Snom D812 ensures it fits perfectly into any office, its a state of the art product that meets Snoms high standards that customers have become acustomed to.

Large Colour Display

The 5 Inch TFT Colour Display with a Resolution of 480 x 272 Pixels, offers unrivalled picture quality in this price range.

Self Labelling Function Keys

Customise your Snom D812 IP Desk Phone with the 8 Programmable Function Keys. Customise the Phone to suit your needs, start calls or perform important functions and task all at the touch of a button.

Features

• Large 5 Inch IPS Colour Display
• USB 2.0 High Speed Connection
• Expansion Module Connectable
• Anti-Bacterial Housing
• SmartLabel, HD Audio
• Security (TLS and SRTP)
• 8 Programmable Function Keys
• Elegant Design, OpenVPN

Technical Specifications:

Display and Indicators

• Display - TFT Liquid Crystal Display (LCD) - IPS Panel, True Colour Backlit, Size - (Diagonal) 127mm - 5 Inches, Size (W X H) - 110mm x 62mm, Resolution - 480 x 272 Pixels
• 13 LED Indicators - Call Status Indication - 1 Red LED, Message Waiting Indication (MWI) - 1 Red LED, Function Key Status Indication - 8 Multicolour LEDs, Audio Key Status Information - 3 LEDs (1 Red / 2 Green)

Keypad and Function Keys

• 39 Hard Keys in Total - 12 Keys (Standard ITU Telephone Keypad), 5 Way Navigation Key, 4 Context Sensitive Function Keys
• Programmable Function Keys - 8 SmartLabel Keys (with Multicolour LED), Key Mapping of up to 32 Functions (8 Keys x 4 Pages)
• 5 Dedicated Audio Keys - Mute (with Red LED), Speakerphone (with Green LED), Headset (with Green LED), Volume +/- (Rocker)
• 5 Dedicated Function Keys - Cancel, Message (with Red LED), Transfer, Hold, Redial, Keyboard Lock

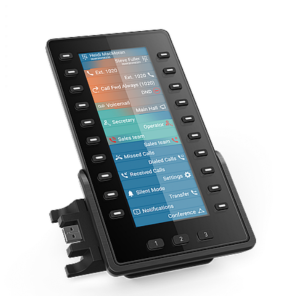

• Connect Up to 3 Snom D8C Expansion Modules via USB

Audio Devices, Codecs and Features

• Casing Microphone, Casing Speaker - Frequency Range - 100 Hz - 8.0 kHz, Speakerphone Mode - Full Duplex, HD Audio, Acoustic Echo Cancellation (AEC)
• Corded Handset - Microphone, Handset Earpiece - Frequency Range - 150 Hz - 8.0 kHz, Noise Cancellation, HD Audio, Hearing Aid Compatible (HAC)
• Audio Codecs - G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729AB, GSM6.10(FR), Opus
• Dual Tone Multi-Frequency Signalling (DTMF / RFC2833), SIP Info - In Band, Out of Band
• Related Features - Comfort Noise Generator (CNG), Voice Activity Detection (VAD), Audio Response Time, Adaptive Jitter Buffer, Packet Loss Concealment (PLC)

Directory Support and Call Features

• 12 SIP Identities / Accounts, Up to 12 Simultaneous Calls
• Directory Support - LDAP (Server Based Directory), Local Directory with 2,000 Entries
• Outgoing Call Features - Speed Dialling via Function Keys, URL Dialling, Local Dial Plan, Redial (via Dialled Calls List), Automatic Redial on Busy, Caller Identification (CLIP), Calling Line Identification Restriction (CLIR), Call Completion (Busy / Unreachable, Intercom, Muiticast Paging
• Incoming Call Features - Call Waiting / Swapping, Auto Answer, Call Diversion, Call Barring / Blocking, Deny List, Anonymous Calls, Do not Disturb )DND) Mode
• Connected Call Features - Mute Microphone, Hold, Music on Hold (If Supported by PBX), Blind Call Transfer, Attended Call Transfer, 2+1 (4+1) Local Conferencing, Call Park / Unpark (If Supported by PBX), Client Matter Code (CMC) - (If Supported by PBX)
• Related Features - Call History Lists of Missed, Received, Dialled, Rejected and Deflected Calls, Extension Monitoring (Busy Lampfield, Call Pickup - (If Supported by PBX)

Interfaces and Connections

• Power Options - Power over Ethernet (PoE), IEEE 802.3af, Class 3, IEEE 802.3az (Optional via Software), Power Adapter - 100 - 240 V AC, 50 - 60 Hz, 5 V DC (SELV), 2 A, 10 W - (Power Adapter Not Included)
• Wired Interfaces - Power Adapter - Coaxial Power Connector (Socket), Network Connectivity -  2 × RJ45-8P8C Sockets (NET, PC) → Gigabit Ethernet (GbE), USB Connectivity - USB 2.0 Type-A Port, Corded Handset - RJ9-4P4C Socket, Headset - RJ9-4P4C Socket, Snom EHS - Electronic Hook Switch - (Electronic Hook Switch Not Included)
• Wireless Interfaces - Third Party Headset Support - DECT via Optional Snom A230 DECT USB Dongle - (A230 Dongle Not Included)
• Network Connectivity - Optiona via Snom A210 - WLAN USB Dongle - (A210 Dongle Not Included)
• Sensors - Hook Switch Sensor

Package Contents

• Snom D812 IP Phone
• Corded Handset
• Footstand
• 1.5m Ethernet Cable
• Quick Installation Guide
• GNU Public License
