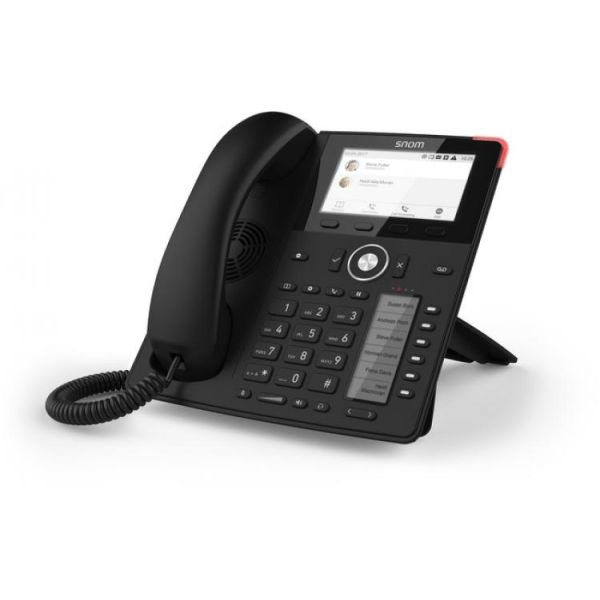

Snom D785 IP Desk Phone - (No PSU)

The Snom D785 belongs to the latest generation of advanced Snom IP phones. Elegantly designed and featuring a large high-resolution colour display and a convenient second screen for dynamic contact management as well as integrated Bluetooth, this IP phone has all the functions necessary to fulfill even the most demanding requirements.

Featuring an integrated Digital Signal Processor (DSP), the Snom D785 has unprecedented HD audio quality. Based on 20 years of experience in audio engineering, Snom provides the best sound quality for every application.

The timeless, modern design of the Snom D785, combined with a large high-resolution colour display is perfect for any working day. The newly designed user interface and second screen make using this telephone more intuitive than ever.

Thanks to the second integrated display many applications can be managed quickly and easily. The D785 allows you to set up 24 one-touch keys to manage group calls and speed dial/function keys by displaying all information dynamically.

The Snom D785 is the perfect combination of advanced technology and elegant design and sets new standards with its intuitive user interface. Due to its high-resolution colour display and practical second screen, the D785 marks another milestone in the twenty-year history of the VoIP phone pioneer, Snom.

Benefits

• Digital Signal Processor (DSP) Enhanced Audio Quality
• Wide band Hands Free Talking
• Wall Mountable
• Dual Angled Footstand - 46° and 28°
• Improved Graphical User Interface
• Up To 24 BLF Keys (16 Physical)
• Dedicated Display for Extension Monitoring
• High Resolution 4.3" TFT Colour Display
• Built in Bluetooth Compatibility
• Electronic Hook Switch (EHS) - Support for Wireless Headsets (1)
• Support for USB Wi-Fi Stick
• D7 Expansion Module Ready (1)
• USB Headset Ready (1)
• Power Over Ethernet IEEE 802.3af, Class 3
• 2-Port, 1-Gigabit Ethernet Switch (RJ45) IEEE 802.3

Technical Specifications

• 12 SIP Identities/Accounts
• XML Browser
• Call Lists for Dialed, Received and Missed Calls
• Local Directory with 1000 Entries
• DTMF In-Band / Out-of-Band / SIP-Info
• Interoperable with all Major IP PBX Platforms

Call Features

• Speed Dialing
• URL Dialing
• Local Dial Plan
• Automatic Redial on Busy
• Call Completion (Busy/Unreachable) (2)
• Caller Identification
• Call Waiting
• Call Blocking (Deny List)
• Auto Answer
• Hold
• Music on Hold (2)
• Handling of up to 4 Simultaneous Calls
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conferencing on the Phone
• Extension Monitoring, Call Pickup (2)
• Call Park, Call Unpark (2)
• Multicast Paging
• DND Mode (Do Not Disturb)
• Keyboard Lock
• Client Matter Code (CMC) (2)

Audio

Codecs - G.711 A-law, µ-law, G.722 (Wideband), G.726, G.729AB, GSM 6.10 (FR)

• Built in Assignable Ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

Setup

• Configurable Through Web Interface
• Provisioning - Automatic loading of settings via HTTP/HTTPS/TFTP, DHCP Options 66/67, Snom Redirection Service, Remote management via TR-069 / TR-111

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface

• Localisation (Language, Time, Dial Tone)
• Red LED for Call Indication/Message Waiting
• 4 Context Sensitive Keys
• 6 Programmable Line/Function Keys with Multicolour LED`s
• Dedicated Keys for - Message, DND, Directory, Menu, Transfer, Hold, Page Switch
• Audio Keys With LED Indication - Mute, Speakerphone, Headset
• Volume Key
• 5 Way Navigation Key
• Ok and Cancel Keys
• Menu Driven User Interface

Security

• 802.1X Authentication and EAPOL
• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS Server/Client
• Password-Protected Web Interface
• VPN-Support
• VLAN (IEEE 802.1Q) · LLDP-MED, RTCP-XR

Phone Features

Dimensions - (Approx):

• 230 x 205 x 90 mm (L x W x D) without Foot Stand
• 190 x 205 x 200/220 mm (L x W x D) with Foot Stand

Weight - Approx):

• Device - 750g
• Footstand - 140g

Input Voltage:

• 5Vdc (SELV)

Power Supply:

• PoE or 5Vdc power adapter (1) , 10 Watts

Technical Specifications

• Hearing Aid Compatible Handset (HAC)
• 1 x USB 2.0 Host Port, Type A, Hi/Full/Low-Speed

In the Box

• Snom D785 IP Deskphone
• Handset
• Curly Cord
• Desktop Stand
• Network Cable
• Quick Start Guide

(1) & (2):

(1) - Optional Accessory

(2) - If Supported by PBX
