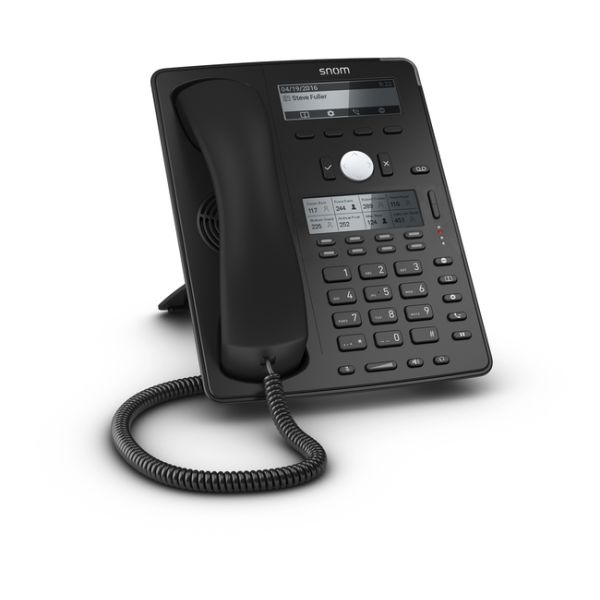

Snom D745 IP Deskphone

About the Snom D745

The professional Snom D745 deskphone is designed to be both aesthetically appealing and highly practical. Gathering its intelligence from Snom’s unique software which has been developed and proven over fifteen years, this phone meets the requirements of users for whom the telephone is a key tool in their daily work as well as having been designed to ensure it is easy to use and cost effective.

Elegant and Practical

The design of the Snom D745 footstand allows the phone to be positioned at an high/low angle for maximum user comfort. Wideband HD audio ensures crystal clear sound quality. Call and feature management, editable call lists, and an address book are provided by the high resolution graphical display which makes the data easily visible in a variety of office conditions.

Function Key Display

The second screen supports four virtual pages, each offering eight programmable keys with multicolored LEDs for a large number of contacts and other functions. A dedicated key makes the navigation through the pages easy and seamless. The number of function keys can be further increased by connecting up to three Snom D7 expansion modules.

Connectivity

The Snom D745 includes a high-speed USB port to enable users to connect to a variety of accessories such as headsets and Wi-Fi sticks. In addition, the D745 has a gigabit Ethernet switch for connectivity to gigabit Ethernet LANs and VPN clients to increase value through the integration of an additional security layer.

Benefits

• High Resolution Graphical Display
• Electronic Hook Switch (EHS) - Optional Accessory Required
• Second Display for Self Labelling LED Keys
• Dual Angled Footstand - 46° and 28°
• Wall Mountable
• Wideband Handsfree Speakerphone
• Digital Signal Processor (DSP) Enhanced Audio Quality
• USB Headset Ready
• D7 Expansion Module-Ready (Optional Accessory)
• Power Over Ethernet IEEE 802.3af, Class 3
• 2-Port 1-Gigabit Ethernet Switch (RJ45)

Call Features

• Speed Dialing
• URL Dialing
• Local Dial Plan
• Automatic Redial on Busy/Unreachable) - (If Supported by PBX)
• Call Waiting
• Caller ID
• Call Blocking (Deny List)
• Auto Answer
• Hold
• Music on Hold - (If Supported by PBX)
• Call Forwarding
• Blind and Attended Transfer
• 3 Way Conferencing on the Phone
• Extension Monitoring, Call Pickup - (If Supported by PBX)

Features

• 12 SIP Identities/Accounts
• XML Browser
• Calls Lists - Dialed/Received and Missed Calls
• Local Directory with 1000 Entries
• Multiple Language Support
• DTMF In-Band / Out-of-Band / SIP-INFO
• Interoperable with all Major IP-PBX Platforms

Phone Features

• Dimensions - (Approx) - 185x220x185mm (LxWxH)
• Weight (Approx) - 940g
• Input Voltage: 5V DC (SELV)
• Power Supply - PoE or 5V DC Power Adapter - Power Adapter Optional Accessory
• Handset - 4P4C Connector
• Headset - 4P4C Connector
• Hearing Aid Compatible (HAC)
• 1 x USB 2.0 Host Port, Type A, Hi/Full/Low-Speed

Package Contents

• Snom D745 IP Desk Phone
• Desktop Stand
• Handset
• Curly Cord
• Network Cable
• Quick Start Guide
