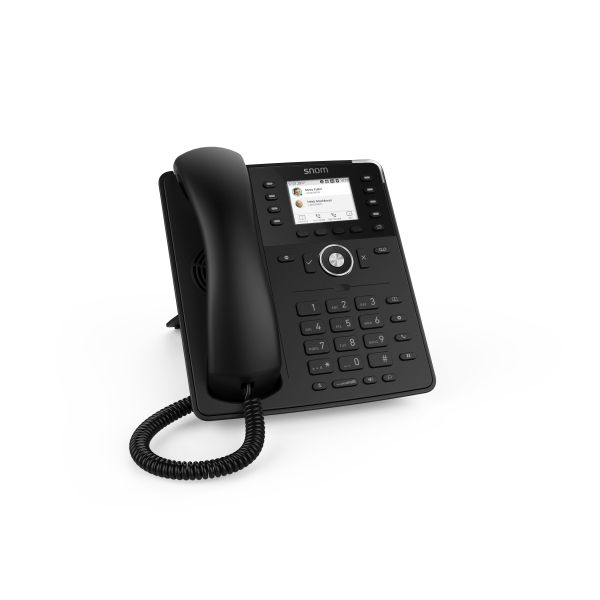

Snom D735 IP Desk Phone - Black - (No PSU)

Snom D735 IP Desk Phone - Black

The Worlds First Sensor-Supported IP Telephone

The new Snom D735 is on the cutting edge, both technically and in terms of appearance, its timeless design and 2 colour variants hit all the right notes.

The high resolution 2.7" Colour Display is surrounded by eight multicoloured function keys that users can label themselves.

The Snom D735 has a built in motion sensor, this constantly shows the user all the important information they may need, this is the first VoIP Telephone to have this feature. As soon as the users hand approaches the display or function keys, the display springs to life and automatically shows all the relevant key assignment information. When the user moves their hand away, the display reverts to its normal mode. This smart motion sensor greatly expands the functionality of the D735 and supports the user in their day to day activities.

The Snom D735 also benefits from the tried and tested HD Audio quality that has become standard for Snom Telephones. Thanks to HD Audio you would think the person you are talking to is sat right beside you, this is made possible due to the integrated Digital Signal Processors (DSP), which optimise sound quality in real time, as well as filter out background noise and much more. Three way conferences are also possible.

The D735 also has an integrated gigabit switch with Power over Ethernet (PoE) functionality, as well as a USB Port allowing users to connect accessories such as USB Headsets to the device. The new modern and smart functions of the Snom D735 make it perfect for all uses, the new optimised firmware allows each user to forward calls at the touch of a button, initiate conference calls or mute the telephone temporarily.

Benefits

• High Resolution 2.7" Graphical TFT Display
• 32 Self Labeling Function Keys (8 Physical)
• Sensor Technology Enables Responsive UI
• Dual Angle Footstand - 46° and 28°
• Electronic Hook Switch (EHS) Support For Wireless Headsets - (Optional Accessory)
• Support for USB Wi-Fi Stick
• D7 Expansion Module Ready - (Optional Accessory)
• USB Headset Ready - (Optional Accessory
• Power over Ethernet IEEE 802.3af, Class 2
• 2 Port Gigabit Ethernet Switch (RJ45)
• Digital Signal Processor (DSP) Enhanced Audio Quality
• Wideband Handsfree Talking Speakerphone

Features

• 12 SIP Identities / Accounts
• XML Browser
• Call Lists for Dialed, Received and Missed Calls
• Local Directory with 1000 Entries
• Multiple Language Support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all Major IP PBX Platforms
• USB Port
• IPv6 & IPv4
• Expansion Module Connectable
• Security (TLS & SRTP)
• Available in Black or White

Call Features

• Speed Dialing
• URL Dialing
• Local Dial Plan
• Automatic Redial on Busy
• Caller Completion (Busy/Unreachable) - If Supported by PBX
• Caller Identification, Call Waiting, Call Blocking (Deny List)
• Auto Answer
• Hold
• Music on Hold - If Supported by PBX
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conferencing on the Phone
• Extension Monitoring Call Pickup - If Supported by PBX
• Call Park, Call Unpark - If Supported by PBX
• Multicast Paging
• DND Mode (Do not Disturb)
• Keyboard Lock
• Client Matter Code(CMC) - If Supported by PBX
• Unified Communications Ready

Audio

• Codecs - G.711 A-law, µ-law, G.722 (Wideband), G.726, G.729AB, GSM 6.10 (FR)
• Built in Assignable Ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

User Interface

• Localisation (Language, Time, Dial Tone)
• Red LED for Call Indication / Message Waiting
• 4 Context Sensitive Keys
• 32 (8 Physical) Programmable Line / Function Keys with Multicolour LED's
• Dedicated Keys for - Message, DND, Directory, Menu, Transfer, Hold, Page
• Audio Keys with LED Indication - Mute, Speakerphone, Headset
• Volume Key
• 5 Way Navigation Key
• OK and Cancel Keys
• Sensor Assisted User Interface

Set Up

• Configurable Through Web Interface
• Provisioning - Automatic Loading of Settings Via HTTP/HTTPS/TFTP
• DHCP Options 66/67
• Snom Redirection Service
• Remote Management Via TR-069 / TR-111

Phone Specifications

• Dimensions - (Approximately) - 205 x 185 x 40 mm (L x W x D) Without Footstand, 205 x 182 x 200/220 mm (L x W x D) With Foot Stand
• Weight - (Approximately) - Device - 450g, Footstand - 120g
• Input Voltage - 5Vdc (SELV)
• Power Supply - PoE or 5Vdc Power Adapter (Power Adapter Optional Accessory)

In the Box

• Snom D735 IP Desk Phone
• Footstand
• Handset with Cord
• Ethernet Cable
• Quick Start Guide
