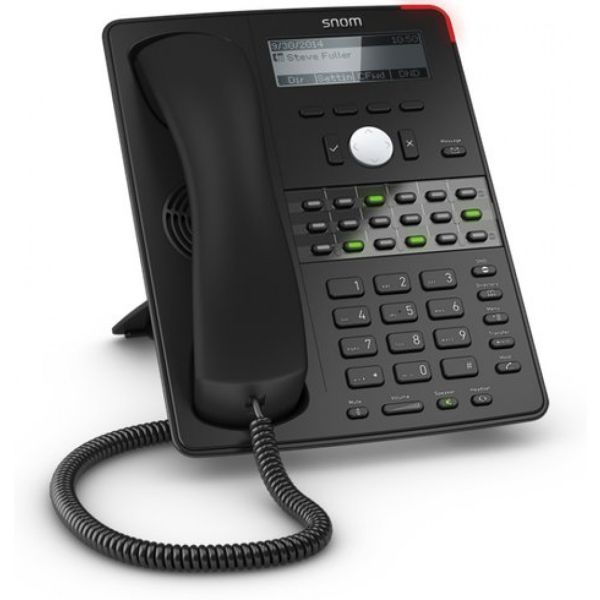

Snom D725 VoIP Desk Telephone

This Product is End of Life

Please Click Here for the Reommended Replacement - Snom D735 IP Desk Phone

The D725 has 18 freely programmable multi-colour function keys in three rows – a design that allows D725 users to have a complete overview of all calls at their fingertips. This, combined with the ability to support up to twelve SIP identities, makes the Snom D725 handset an ideal candidate for intensive phone usage.

The D725's Gigabit Ethernet switch meets demanding telephony connectivity requirements, while its USB port enables the use of accessories for greater connectivity options. The optional D7 expansion module can be attached for additional function keys. The advanced speaker and microphone system and the Digital Signal Processor (DSP) ensure that the D725 delivers a cutting-edge audio performance with superior, crystal clear call quality.

Features

• 12 SIP identities / accounts
• XML Browser
• Call lists for dialed, received and missed calls
• Interoperable with all major IP-PBX platforms
• Multiple language support
• Local directory with 1000 entries
• DTMF in-band / out-of-band / SIP-INFO

Call Features

• Menu-driven user interface
• 4-way navigation key, OK and cancel keys
• Volume key
• Audio keys with LED indication: Mute, speakerphone, headset
• Extension monitoring, call pickup
• 3-way conferencing on the phone3-way conferencing on the phone
• Call forwarding
• Blind and attended transfer
• Handling of up to 12 simultaneous calls
• Music on hold
• Hold
• Auto answer
• Call blocking (deny list)
• Call waiting
• Caller identification
• Call completion (busy/unreachable)
• Automatic redial on busy
• Local dial plan
• URL dialing
• Speed dialing

Benefits

• Backlit graphical display, 4 lines
• Support for wireless headsets via electronic hook switch (EHS)
• Support for USB WiFi stick (RT2070/RT3070 chipsets)
• D7 expansion module-ready
• USB headset-ready
• Power over Ethernet IEEE 802.3af, Class 2
• 2-port 1-Gigabit Ethernet switch (RJ45) IEEE 802.3
• Digital Signal Processor (DSP) enhanced audio quality
• Wideband hands-free talking (speakerphone)
• Wall mountable

• Dual-angle footstand: 46° and 28°

Phone Features

• Input voltage- 5V DC (SELV)
• Power supply: PoE or power adapter 5V DC10 W
• Handset - 4P4C connector
• Headset Connectors - Wired: 4P4C connector or USB connector, Wireless: USB connector or proprietary snom 4-pin connector for snom EHS Advanced
• Hearing aid compatible (HAC) handset
• 1 x USB 2.0 host port, Type A, Hi/Full/Low-Speed
• Environmental conditions - Ambient temperature: 0°C to 35°C (32°F to 95°F), Storage temperature: -10°C to 45°C (14°F to 113°F)
• Humidity: 5% to 95% (non-condensing)
• Call park, call unpark
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Client matter code (CMC)
• Unified communications ready

Approx Dimensions

• 238 x 190 x 40 mm (LxWxD) w/o foot stand
• 238 x 190 x 200/220 mm (LxWxD) with foot stand

Approx Weight

• Device 670g, footstand 230g

User Interface

• Localization (language, time, dial tone)
• Dedicated keys for: Message, DND, directory, menu, transfer, hold
• Paper inlay for labeling of function keys
• 18 programmable line / function keys with multicolor LEDs
• 4 context-sensitive keys
• Red LED for call indication / message waiting

Set Up

• Configurable though web interface
• Provisioning - Automatic loading of settings via HTTP/HTTPS/TFTP,  DHCP Options 66/67, Snom Redirection Service, Remote management via TR-069 / TR-111

In the Box

• Base phone unit
• Footstand
• Handset with cord
• Ethernet cable
• Quick start guide
