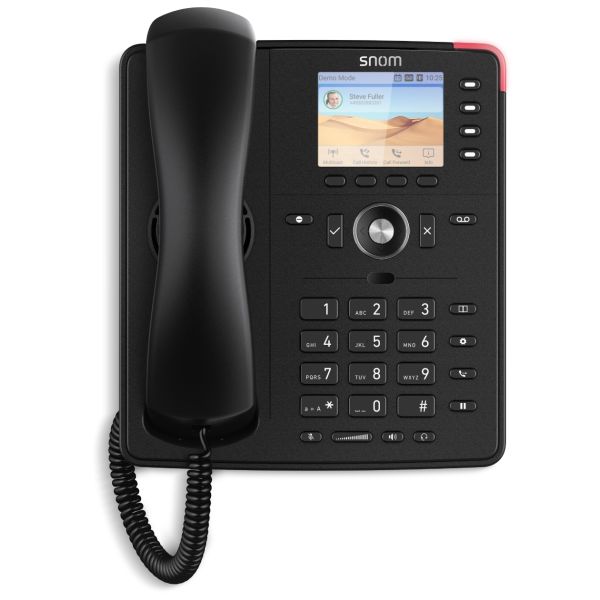

Snom D713 IP Desk Phone

The distinctly designed Snom D713 is the cost effective entry device into the professional world of VoIP Telephony. Available in Black, it fits perfectly into any work environment, combining the latest technology and the best voice quality at an unbeatable price.

The High Resolution Colour Display enables the flexible labeling solution SmartLabel for the 4 freely& programmable LED Function Keys. The D713 is equipped with a Gigabit Switch with PoE support.

Key Features

• Power over Ethernet (PoE)
• IPv6 & IPv4
• Supported Headsets Include - Snom A100M and Snom A100D
• Gigabit Ethernet | HD Audio
• Security (TLS & SRTP)
• On Screen Labels

Technical Specifications:

Basics

• Operating System - Linux
• Wall Mountable - Wall Mount not Included

Display and Indicators

• Display - TFT Liquid Crystal Display (LCD), High Colour, Backlit, Graphic, 2.8 Inch (67mm) Display Size (Diagonal), Resolution 320 x 240 Pixels
• 5 LED Indicators - 1 Red LED for Call Status Indication, 4 Multicolour LED's for Function Key Indication

Keypad and Function Keys

• 38 Hard Keys in Total
• Standard ITU Telephone Keypad - 12 Keys with Star and Pound / Hash Key
• 5 Way Navigation Key
• 4 Context Sensitive Function Keys
• Programmable Line / Function Keys - 4 Self Labeling keys with Multicolour LED
• 5 Dedicated Audio Keys - Mute, Speakerphone, Headset, Volume +/- (Rocker)
• 8 Dedicared Function Keys - OK, Cancel, DND, Message, Directory, Menu, Transfer, Hold
• Related Features - Keyboard Lock

Audio Devices, Codecs and Features

• Corded Receiver - Hearing Aid Compatible (HAC)
• Audio Codecs - G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR)
• Dual Tone Multi Frequency Signalling (DTMF) - In-Band, Out-of-Band, SIP-INFO
• Related Features - Built-in Assignable Ringtones, Comfort Noise Generator (CNG), Voice Activity Detection (VAD)

Interfaces and Connections

• Snom D713 Power Options - Power over Ethernet (PoE), IEEE 802.3af, class 2, Power Supply Unit: 100 - 240 V AC / 50 - 60 Hz | 5 V DC (SELV) / 2 A / 10 W (Not Included) - Click Here to Order Power Supply Unit

• Wired Interfaces - 1 Coaxial Power Adapter Connector, 2 RJ45-8P8C Gigabit Ethernet Ports, 1 RJ9-4P4C Standard Connector for Corded Receiver,1 RJ9-4P4C Standard Connector for Wired Headset Connection, 1 RJ12-6P6C EXT Connector for Snom EHS Adapter

Directory Support and Call Features

• 6 SIP Identities / Accounts - Up to 6 Simultaneous Calls (If Supported by PBX)
• Directory Support - LDAP (Server Based Directory), Local Directory with up to 1,000 Entries
• Outgoing Call Features - Speed Dialing Via Function Keys, URL Dialing, Local Dial Plan, Redial (Via Dialed Calls List), Automatic Redial on Busy, Caller Identification (CLIP), Calling Line Identification Restriction (CLIR), Call Completion (Busy/Unreachable) - If Supported by PBX, Intercom, Multicast Paging
• Incoming Call Features - Call Waiting / Swapping, Call Barring, Blocking Via Deny List, Anonymous Calls, Auto Answer, Call Diversion, Do Not Disturb (DND Mode)
• Connected Call Features - Mute Microphone, Music on Hold (If Supported by PBX), Blind Call Transfer, Attended Call Transfer, 3 Way Local Conferencing, Call Park / Unpark (If Supported by PBX), Client Matter Code (CMC) (If Supported by PBX)
• Related Features - Call History Lists of Missed, Received, Dialed, Rejected and Deflected Calls, Extension Monitoring, Call Pickup (If Supported by PBX)

Weights and Dimensions

• Dimensions (L x W x H, Approx.) - 205 mm x 185 mm x 40 mm w/o Footstand, 205 mm x 185 mm x 220 mm at High Angle, 205 mm x 185 mm x 200 mm at Low Angle
• Weight (Approx.) - 830 g with Footstand, 710 g w/o Footstand
• Inclination - High Angle 46° · Low Angle 28°

Package Contents

• Snom D713 Desk Phone Unit
• Footstand
• Receiver (Handset)
• Curly Cord
• 1.5m (5ft) Ethernet Cable
• Quick Installation Guide
• GNU General Public License
