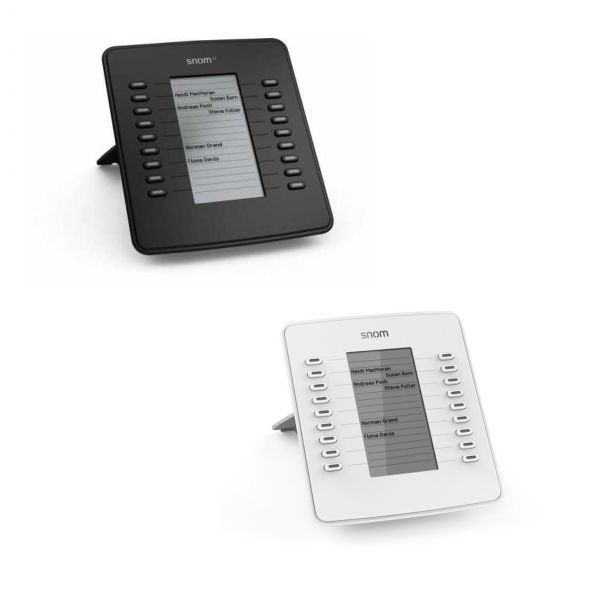

Snom D7 Expansion Module

About the Snom D7

Highly Versatile

The Snom D7 Expansion Module features 18 multicoloured LED keys which can be programmed with all functions available known from snom phones like line, speed dial, busy lamp field, presence indication, and many more.

The call or presence status of your contacts is presented by the D7’s multi-color LED keys at any given time. The high-resolution display provides a perfect visual interface which can be easily configured and labelled via the phone’s web interface or directly on the phone itself.

Ease of Use

Simply connect the USB cable and the Expansion Module is ready to use, the power is supplied via the host phone, Up to three D7 Expansion Modules can be daisy chained to add up to 54 function keys to your phone.

The last D7 in the chain offers a USB port to connect other peripheral USB devices to the host phone. Thus, A USB headset or a WLAN stick can be used.

Benefits

• High Resolution Graphical Display with Backlight
• 18 Programmable Multicolour LED Function Keys
• Dual Angled Footstand - 46° and 28°
• Daisy Chainable
• Configurable by Host Phone
• Powered by Host Phone - When Two or More Expansion Modules are used with One Phone, a Separate Power Supply needs to be Connected to the Second Module**

Features

• Dimensions - (Approx) - 158 x 140 x 40 mm (LxWxD) without Footstand
• Dimensions - (Approx) - 58 x 140 x 200/220 mm (LxWxD) with Footstand
• Weight - (Approx) - Device - 400g, Footstand - 120g
• Input Voltage: 5Vdc (SELV)
• Power Supply - USB or 5Vdc Power Adapter - 10 Watts - Power Adapter is an Optional Accessory and is Not Included
• USB 2.0 Cable with Angled Type A Plug
• USB 2.0 Port, Type A

Compatible with

• Snom D717
• Snom D745
• Snom D785

Package Contents

• Snom D7 Expansion Module
• Foot Stand
• Quick Start Guide

^{*Firmware - The Snom Phone Must be on Firmware 8.7.5.13 or Above for the D7 to be Compatible*}
