Snom D385 IP Desk Phone - (No PSU)

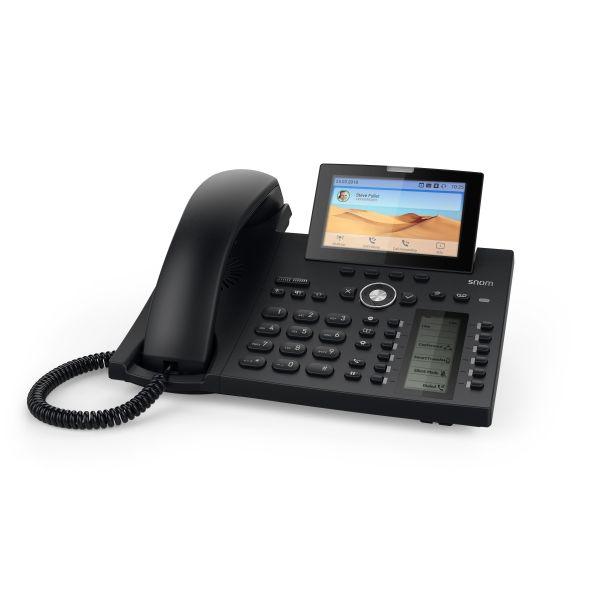

Snom D385 IP Desk Phone

The Perfect Mix of Elegance and Cutting Edge Technology

The Snom D385 has a wide range of functions and a modern design. It marks the next generation of Snom VoIP Desk Phones and will fit into any office environment. The Telephone features a high resolution, inclinable Colour Display as well as a modern clear design. The Snom SmartScreen means labeling of function keys is now a thing of the past.

The Snom D385 has a large 4.3 Inch TFT Colour Display and offers convenient access to all key information such as call lists, address books as well as functions. The user interface of firmware version 10 has also been redesigned to support users.

All keys on the Snom SmartScreen feature multi-coloured LED's ensuring that they are easy to see amongst the clutter of office life. A total of 48 entries are available to users over four pages. Each key can be individually assigned with call forwarding, speed dialing or other functions via the telephone system or directly on the telephone.

D385 users will also benefit from the proven Snom HD Audio Quality, with over 20 years of experience, Snom is a technology leader in this field. Thanks to the integrated Digital Signal Processor (DSP), which optimises quality in real time, callers will feel like they are in the same room or sitting opposite each other.

The Snom D385 also features an Integrated Gigabit Ethernet Switch with Power over Ethernet (PoE) Functionality, Integrated Bluetooth and a USB Connection for adding accessories such as the Snom D3 and USB Headsets. With the A230 DECT Dongle and the Snom C52-SP Expansion Speaker, the Snom D385 can be easily transformed into a conferencing device.

Benefits

• High Resolution 4.3 Inch TFT Colour Display
• Dedicated Display for Extension Monitoring
• Up to 48 BLF Keys (12 Physical)
• Improved Graphical User Interface
• Wideband Hands-Free Talking
• Digital Signal Processor (DSP) Enhanced Audio Quality
• 2 Port Gigabit Ethernet Switch (RJ45) IEEE 802.3
• Power over Ethernet IEEE 802.3af, Class 3
• USB Headset Ready (Headset Optional Accessory)
• D3 Expansion Module Ready (Expansion Module Optional Accessory)
• Support for USB WiFi Stick
• Electronic Hook Switch (EHS) Support for Wireless Headsets (EHS Optional Accessory)
• Built in Bluetooth Compatibility

Technical Specifications:

Features

• 12 SIP Identities / Accounts
• XML Browser
• Call Lists for Dialed, Received and Missed Calls
• Local Directory with 1000 Entries
• Multiple Language Support
• DTMF In-Band / Out-Of-Band / SIP INFO
• Interoperable with all Major IP PBX Platforms
• Bluetooth Connectivity
• IPv6 & IPv4
• Expansion Module Connectable
• Headset Connectable
• Self Labeling Keys
• Security (TLS & SRTP)

Call Features

• Speed Dialing
• URL Dialing
• Local Dial Plan
• Automatic Redial on Busy
• Call Completion (Busy/Unreachable) - (If Supported by PBX)
• Caller Identification, Call Waiting, Call Blocking (Deny List)
• Auto Answer
• Hold
• Music on Hold - (If Supported by PBX)
• Handling of up to 12 Simultaneous Calls
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conferencing on the Phone
• Extension Monitoring, Call Pick Up - (If Supported by PBX)
• Call Park, Call Unpark - (If Supported by PBX)
• Multicast Paging
• DND Mode (Do Not Disturb)
• Keyboard Lock
• Client Matter Code (CMC) - (If Supported by PBX)

Audio

• Codecs - G.711 A-law, µ-law, G.722 (Wideband), G.726, G.729AB, GSM 6.10 (FR)
• Built in Assignable Ringtones
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

Set Up

• Configurable Through Web Interface
• Provisioning - Automatic Loading of Settings Via HTTP/HTTPS/TFTP, DHCP Options 66/67, Snom Redirection Service, Remote Management Via TR-069 / TR-111

User Interface

• Localisation (Language, Time, Dial Tone)
• Red LED for Call Indication / Message Waiting
• 4 Context Sensitive Keys
• 48 (12) Configurable Self Labelling LED Keys
• Dedicated Keys for - Message, DND, Directory, Menu, Transfer, Hold, Page Switch
• Audio Keys - Mute, Speakerphone, Headset
• Volume Key
• 4 Way Navigation Key
• Ok and Cancel Keys
• Menu Driven Interface

Security

• 802.1X Authentication and EAPOL
• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS Server/Client
• Password-Protected Web Interface
• VPN-Support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR

Phone Features

• Dimensions - (L x W X H) - 250 x 185 x 120 mm (Approx)
• Weight - (Approx) - 880g
• Input Voltage 5Vdc (SELV)
• 1 x USB 2.0 Host Port, Type A

In the Box

• Snom D385 IP Desk Phone
• Footstand
• Handset with Cord
• Ethernet Cable
• Quick Start Guide
