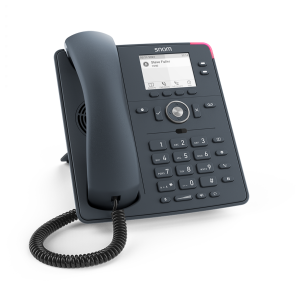

Snom D150 IP Phone

The Ideal IP Phone that Fits Perfectly Into Any Work Environment - 2 SIP Identities, Low Power Comsumption (PoE Class 1), 2.8 TFT Grayscale Display, HD Audio, Multicolour LED Indicators, Gigabet Ethernet Switch

About the Snom D150

The Snom D150 is finished in Slate Grey with an uncluttered design, and fits perfectly into any wrk environment where phone communication is paramount. Combining the latest technology  and best voice quality at an unbeatable price. The D150 has a highly visible backlit LED display, making it easy to monitor call information and features. The Snom D150 is equipped with a Gigabit Switch with PoE support and a Headset Port.

360° Notification Indicator

The 360° Notification Indicator Lamp shows notifications from anywhere in the room.

2.8 Inch TFT LCD - Grayscale Display

Equipped with a large 2.8 Inch TFT LCD Grayscale Display, the Snom D150 ensures an optimal display at all times.

Keys

The Snom D150 has been designed with Four Context Sensitive Function Keys and two Freely Programmable SmartLabel Keys with Multicolour LCD's.

Features:

Gigabit Ethernet

The Snom D150 IP Phone has a Gigabit Network Input Switch for connecting a PC.

IPv6 & IPv4

The Snom D150 supports both Internet Protocol Version 4 (IPv4 & IPv6).

HD Audio

Supports the highest audio quality with its hardware and supported codecs.

Headset Connectable

The Snom D150 has a Headset Port and possible Software that enables a Headset to be connected.

On Screen Smart Labels

With the D150, instead of a second display for the display of the freely programmable function keys (e.g. BLF), it has a display of the same in the main display in Smart Label format.

OpenVPN

The Phone can be upgraded to an OpenVPN client with an additional firmware upgrade to connect it to an OpenVPN server.

Power over Ethernet (PoE)

The D150 receives power from a connected network cable, providing that netwprk switch used has enough power to supply all connected devices.

Security (TLS & SRTP)

The Phone supports all common security protocols including TLS, SIPS, SRTP.

Technical Specifications:

Display and Indicators

• Display - TFT Liquid Crystal Display (LCD), Graphical, Grayscale, Backlit, Size (Diagonal) - 2.8 Inches (67mm), Width - 59mm, Height - 33mm, Resolution - 320 x 240 Pixels
• LED Indicators x 3 - Call Status Indication - 1 Red LED, Function Key Status Indication - 2 Multicolour LED's

Keypad and Function Keys

• 36 Hard Keys in Total
• 12 Keys (Standard ITU Telephone Keypad)
• 4 Context Sensitive Function Keys
• 5 Way Navigation Key
• 2 SmartLabel Keyswith Multicolour LED's
• 5 Dedicated Audio Keys for Mute, Speakerphone, Headset, Volume +/- (Rocker)
• 6 Dedicated Function Keys for OK, Cancel, DND, Message (with Red LED), Directory, Menu, Transfer, Hold
• Keyboard Lock

Audio Devices, Codecs and Features

• Casing Microphone / Casing Speaker - Speakerphone Mode - Full Duplex
• Corded Handset - Microphone / Handset Earpiece, Hearing Aid Compatible (HAC)
• Audio Codecs - G.711 (A-law, μ-law), G.722, G.726, G.729, GSM, 6.10 (FR)
• Dual Tone Multi-Frequency Signalling (DTMF / RFC2833)
• SIP INFO, In Band, Out of Band
• Related Features - Built in Assignable Ringtones, Comfort Noise Generator (CNG), Voice Activity Detection (VAD)

Interfaces and Connections

• Power Options - Power over Ethernet (PoE) IEEE 802.3af, Class 1 / IEEE 802.3az, Power Adapter - 100 - 240 V AC, 50 - 60 Hz / 5 V DC (SELV), 2 A, 10 W (Power Adapter Available Separately)
• Wired Interfaces - Power Adapter (Separate Purchase) Coaxial Power Connector (Socket)
• Network Connectivity - 2 x RJ45-8P8C (NET/PC) Sockets - Gigabit Ethernet (GBE)
• Corded Handset - RJ9-4P4C Socket
• Headset (Separate Purchase) - RJ9-4P4C Socket
• EHS Adapter (Separate Purchase) - RJ12-6P6C (EHS) Socket
• Sensors - Hook Switch Sensor

Directory Support and Call Features

• 2 SIP Identities / Accounts, Up to 2 Simultaneous Calls
• Directory Support - LDAP (Server Based Directory), Local Directory with 1,000 Entries
• Outgoing Features - Speed Dialling Via Function Keys, URL Dialling, Local Dial Plan, Redial (Via Dialed Calls List), Automatic Redial on Busy, Caller Identification (CLIP), Calling Line Identification Restriction (CLIR), Call Completion (Busy / Unreachable) - If Supported by PBX, Intercom, Multicast Paging
• Incoming Call Features - Call Waiting / Swapping, Call Barring / Blocking - Deny List, Anonymous Calls, Do not Answer, Do not Disturb (DND) Mode, Auto Answer, Call Diversion
• Connected Call Features - Mute Microphone, Hold, Music on Hold - If Supported by PBX, Blind Call Transfer, Attended Call Transfer, 3 Way Local Conferencing, Call Park / Unpark - If Supported by PBX, Client Matter Code (CMC) - If Supported by PBX
• Related Features - Call History Lists of Missed, Received, Dialed, Rejected and Deflected Calls, Extension Monitoring - Busy Lamp Field, Call Pickup - If Supported by PBX

Package Contents

• Snom D150 IP Phone
• Footstand
• Corded Receiver
• Ethernet Cable
• Quick Installation Guide
