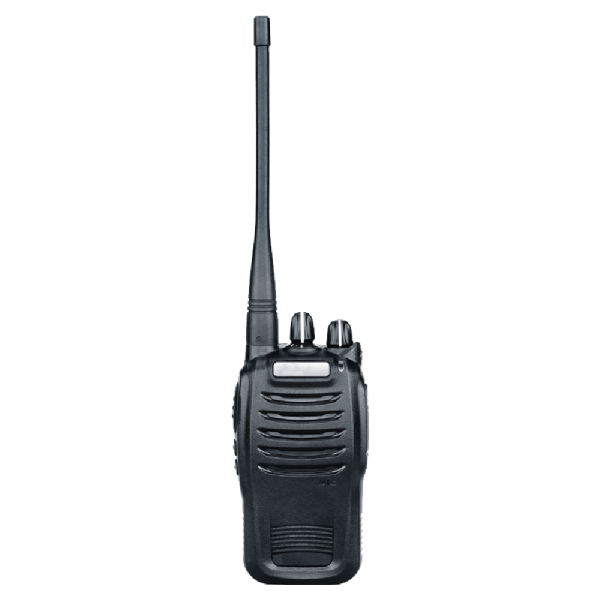

Project Telecom Advanced - Long Range Two Way Radio

The Project Telecom Advanced Long Range Two Way Radio is a professional Two Way Radio with multiple functions, stable performance and wide frequency range. It is one of the most cost effective radios on the market, providing great quality, loud and clear audio as well as being compact and robust.

Main Features

High Cost Performance

A Professional Digital Portable Radio, Which is Reliable and Safe, Its Ergonomic Design Makes the Advanced Long Range Two Way Radio Easy to Carry and Hide.

Dual Modes - Analogue & Digital

The Advanced Long Range Two Way Radio Can Operate in Either Analogue or Digital Mode. It is Compatible with the Prevalent Analogue System, Ensuring a Smooth Analogue to Digital Transition.

Maximum Efficiency

The Advanced Long Range Two Way Radio Adopts TDMA Technology Which Ensures High Efficient Frequency Coverage and Control Mode of RF Power, Its Battery Life is 40% Longer When Operated in Digital Mode Rather Than in Analogue Mode.

Better and Clearer Communication

The Advanced Long Range Two Way Radio Adopts Digital Technologies Which Effectively Control Background Noise and Squelch During Voice Transmission, so That it can Transmit Clear and Desired Voice.

Secure Communication

The Advanced Long Range Two Way Radio Can Control the Selection of RX Contact or RX Group of Voice in Digital Mode. Every Project Telecom Advanced Long Range Two Way Radio has a Unique ID, This Enables Users to do One to One Conversations Which Will Not be Received by Others, Besides it Supports Digital Voice Encryption in Digital Mode.

Other Features

• VOX
• Voice Prompts
• Channel Scan
• Emergency Alarm
• 1600mAh Capacity
• Programmable Keys
• TOT (Time out Timer)
• Upgradeable Software
• Dual Modes - Analogue & Digital
• Signaling - DTMF Encode, QT/DQT
• Voice Call Types - Private Call, Group Call and All Calls
• Radio Disable, Radio Enable, One Touch Call, Remote Monitor
• Weatherproof Construction and Sealed Casing Protects the Radio from Dust and Rain (IP54)

Specifications

General

• Frequency Range - VHF - 136-174MhHz, UHF - 400-470MHz, 450-520MHz
• Channel Capacity - 1024 (65 Zones x 16 Channels)
• Channel Spacing - 25kHz/12.5kHz
• Frequency Stability - ±1.5ppm
• Operating Temperature:-25℃~+55℃
• Antenna Impedance - 50&Omega
• Operating Voltage - 7.5v
• Dimensions 105 x 60 x 35 mm (H x W x D)
• Weight (With Antenna & Battery) - 225g
• Battery - 1600mAh

Receiver

• Sensitivity - Analog SINAD: 0.22μV/ Digital 5%BER: 0.22μV
• Adjacent Channel Selectivity - 60dB@12.5kHz/70dB@25kH
• Intermodulation - 65dB
• Spurious Response Rejection - 70dB
• Hum and Noise - 40dB@12.5kHz/-45dB@25kHz
• Conducted Spurious Emission - ≤-57dBm
• Audio Response - +1~-3dB
• Audio Power - 0.6W

Transmitter

• RF Power - UHF High Power - 4W / Low Power - 1W, VHF High Power - 5W / Low Power - 1W
• Modulation Limiting - ≤2.5kHz@12.5kHz/≤5.0kHz@25kHz
• Conducted/Radiated Emission - ≤-36dBm(<1GHz)/-30dBm(>1GHz)
• Adjacent Channel Power - 60dB@12.5kHz/70dB@25kH
• Audio Response - +1~-3dB
• Audio Distortion - ≤3%
• Frequency Stability - ±1.5ppm
• FM Modulation - 25kHz:16KΦF3E / 12.5kHz:11KΦF3E
• 4FSK Digital Modulation - 12.5kHz Data: 7K60F1D and 7K60FXD, 12.5kHz Voice: 7K60F1E and 7K60FXE, 12.5kHz Voice & Data: 7K60F1W
• Digital Vocoder Type - AMBE+2™
• Digital Protocol -ETSI TS102 361-1.-2.-3

_{*All Specifications are Tested According to Applicable Standards and are Subject to Change Without Notice Due to Continuous Development}

_{**This Radio Requires a License to Operate, if you do not already have an Existing Radio License, a License will need to be Purchased before using the Radio - Please Click Here to Purchase a License. We will program the Radio/s to your new or existing License before we dispatch the Radio(s) to you.}
