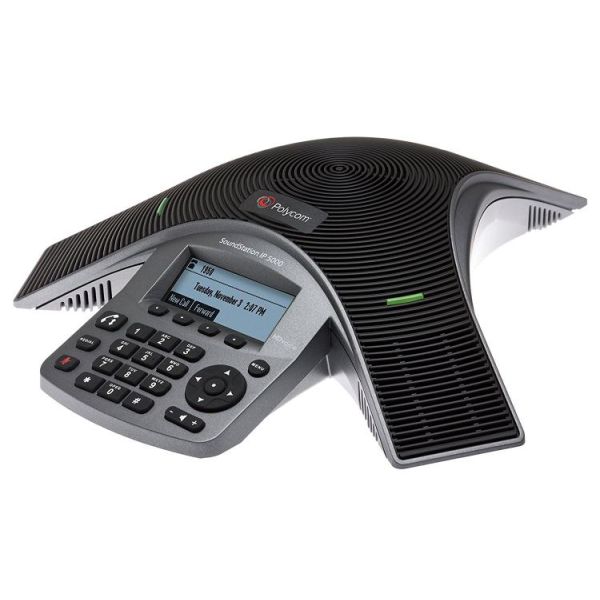

Polycom Soundstation IP5000 SIP Audio Conference VoIP Phone

With Polycom HD Voice technology, the SoundStation IP 5000 conference phone boosts productivity and reduces listener fatigue by converting standard conference calls into crystal-clear conversations.

The IP 5000 is both receptive to the deeper lows and higher frequencies of the human voice ensuring a conference call that sounds as natural as being in the same room as the other party.

For all calls, the SoundStation IP 5000 conference phone delivers advanced audio performance that is designed for executive offices and smaller conference rooms with up to 6 participants.

From full-duplex technology that eliminates distracting drop-outs to the latest echo cancellation advancements, the IP 5000 delivers a conference phone experience with no compromises.

Main Specifications at a Glance

• Polycom HD Voice™ technology for outstanding clarity
• 7-foot (2.1-meter) microphone pickup range
• Designed for small conference rooms and executive offices
• Strong performance at an affordable price
• Inter-operable with leading SIP-based IP PBX and Softswitch platforms

Key Features and Benefits

• Patented Polycom Acoustic Clarity™ technology delivers the best conference phone experience with no compromises
• The most feature-rich family of IP conference phones available, with advanced call handing, security, and provisioning features
• High-resolution display enables robust call status, on-board configurability and multi-language support
• Integrated Power over Ethernet (PoE) for easy installation. Optional AC Power Kit also available
• Resists interference from mobile phones and other wireless devices while delivering clear voice conferencing with no distractions

Audio Specifications

• LoudspeakerFrequency: 250 – 7,000 HZ
• Volume: Adjustable to peak volume 84 dB at 1/2 meter distance
• Voice activity detection
• Comfort noise fill
• DTMF tone generation / DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression
• Supported Codecs
• G.711 (A-law and µ-law)
• G.729a
• G.722
• iLBC

Call Handling Specifications

• Shared call / bridged line appearance
• Busy Lamp Field (BLF)
• Distinctive incoming call treatment / call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Advanced Local three-way conferencing
• (conference, join, split, hold, resume)
• One-touch speed dial, redial
• Call waiting
• Remote missed call notification
• Automatic off-hook call placement
• Do not disturb function

Network and Provisioning Specifications

• Ethernet 10/100 Base-TIP Address Configuration: DHCP and Static IP
• Time synchronization with SNTP server
• FTP / TFTP / HTTP / HTTPS server-based central provisioning for mass deployments.
• Provisioning server redundancy supported.
• Web portal for individual unit configuration
• QoS Support -- IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
• Network Address Translation (NAT)
• support - static
• RTCP support (RFC 1889)
• Event logging
• Local dial plan
• Hardware diagnostics
• Status and statistics
• User selectable ringer tones
• Field upgradeable
