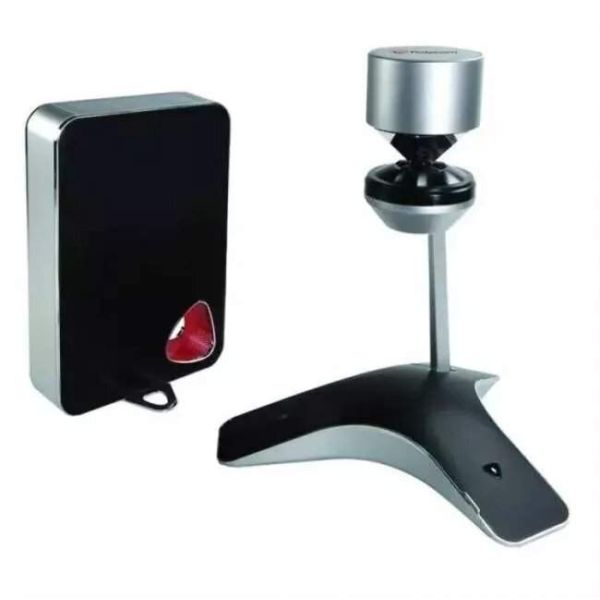

Polycom CX5100 Unified Conference Station For Use With Microsoft Lync

Polycom CX5100 Unified Conference Station For Use With Microsoft Lync

Available in New or Refurbished

In any business the IT Department`s challenge is to make video meetings in conference rooms more effective, reduce video support calls and eliminate the need for in room video support. Video Conference Room users may have problems such as being distracted by video or quality issues, or they may have trouble seeing or even identifying who is speaking. The Polycom® CX5100 Unified Conference Station for Skype and Microsoft® Lync users is ideal for solving these problems, and answers those challenges with a truly unique around the table video collaboration solution.

More Productive Meetings

The Polycom CX5100 Unified Conference Station brings the powerful collaboration capabilities of Voice, Video and Content together through a unique 360 degree panoramic view of the entire room. A second HD video view of the active speaker is also sent at 1080p Video resolution using advanced technology that automatically focuses on the current speaker and tracks the flow of conversation which enables richer, more interactive communication. A hands free experience, meaning no more reaching for a video control device, simply allowing users to focus on their meetings.

Easy to Deploy and Use

The Polycom CX5100 has an intuitive design and is easy to use, with full plug and play functionality. Little or no training and anyone with a laptop with Skype for Business or Microsoft Lync can walk into the room and plug the Polycom CX5100 into their PC via the USB port and start sharing Voice and 360 degree Panorama Video. Invitations and Content Sharing can be handled through the Skype for Business user interface.

Audio Quality Matters

Featuring Polycom`s legendary audio, the CX5100 brings the industries best voice quality to your Skype for Business meetings, with a dynamic range of 160 Hz to 22,000 Hz. Polycom® HD Voice™ and a microphone range of 20 feet (6 metres) means everyone in the room can be clearly heard, even of they are at the end of the table. Optional Expansion Microphones mean the range is extended even further if needed.

Features

• 360° 1080p USB Camera with Active Speaker Detection
• Certified for Skype for Business
• Active Speaker and Panoramic Video Stream Output
• 20 ft (6 Metre) Microphone Pickup Range
• 160 Hz–22 kHz Audio Processing
• Optimised for use with Skype Rooms Systems

Benefits

• Lower Support Costs and Realize a Better ROI with Increased Room Usage for Collaboration
• Enable Richer Communications by Automatically Focusing on the Active Speaker in True HD While Tracking the Conversation Flow
• Fully Engage all Participants by Providing a 360 Degree Panoramic View of the Conference Room
• Reduce Training Costs with Simple USB Plug and Play Functionality that Requires Little or no Training

Product Specifications

Dimensions

• Table Console - Footprint (W x D) - 369 x 325 mm, Height - 348 mm (Privacy Cap Closed) - 401 mm (Privacy Cap Extended), Weight - 2.3kg (Exclusive of Cables)
• Power Data Box - Size - (W x H x D): 209.5 x 300 x 56 mm (Excluding Stand), Weight - 9.07kg

Power

• Power Consumption - 110 Watts, Typical
• Universal Power Supply - 100–240 V AC, 50–60 Hz

Video Performance

Panoramic Video Resolutions Supported

• 1920 x 288 Pixels (Requires USB 3.0 and Lync 2013 or Skype for Business)
• 1280 x 192 Pixels (Requires USB 3.0 and Lync 2013 or Skype for Business)
• 1056 x 144 Pixels

Active Speaker Resolutions Supported

• HD 1080 - 1920 x 1080 Pixels (Requires USB 3.0 & Lync 2013 or Skype for Business
• HD 720 - 1280 x 720 Pixels
• VGA - 640 x 480 Pixels
• CIF - 352 x 288 Pixels

Frame Rate for Panoramic and Active Speaker Video

• 30 Frames Per Second with 60 Hz AC Power
• 25 Frames Per Second with 50 Hz AC Power
• Maximum Frame Rates with Systems Prior to Lync 2013 will be Limited to 15 fps (12.5 @ 50 Hz)

Audio Performance

Console Loudspeaker

• Frequency Response - 160 Hz–22 kHz, Volume - Adjustable to 88 dBA SPL (Peak) Volume at 0.5 Metres

Console Microphones

• 3 Microphones for Omnidirectional Coverage, Frequency Response - 160 Hz–22 kHz, Full Duplex (Class 1) with Noise Suppression

User Interface

• 3 Mute Buttons with Mute/Incall Indication Lamps, Camera On/Off Indication Lamp, Captive Privacy Cap with Integrated On/Off Switch for Client Switch

Console Connectivity

• Proprietary System Port for Connection to Power Data Box
• USB 3.0 - Type A Port for Proprietary Connection to Power Data Box
• USB 3.0 - Type B Port for Connection to PC
• USB 2.0 - Type A Port for Diagnostics/Software Update
• 2 Expansion Microphone Ports

Power Data Box Connectivity

• Proprietary System Port for Connection to Console
• USB 3.0 Type A Interface for Proprietary Connection to Console or to Lync Appliance
• USB 2.0 Type A for Diagnostics/Software Update
• Ethernet - RJ45 10/100/1000 Mbit
• Audio RCA Jacks (Reserved for Future Use)
• AC Power Input

Physical Security

• Kensington Style Lock on Console and Power Data Box

Expansion Microphones (Optional Accessory)

• Frequency Response - 160 Hz–22 kHz
• Mute Button and Indicator Lamp
• Regulatory Compliance
• Safety - UL 60950-1, EN 60950-1, CSA C22.2 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943-2011 (China), KCC approval (Korea)
• EMC - CISPR 22 Class B (FCC, ICES, AS/NZS), VCCI Class B, EN 55022 Class B, EN 55024, GB9254:2008, YD/T993-1998 (China), KCC approval (Korea), KCC approval (Korea)
