Single Cell DECT Base Station for Poly Rove B2

A Single Cell DECT Base Station for use with the Poly Rove 30 and Poly Rove 40 Cordless IP Handsets

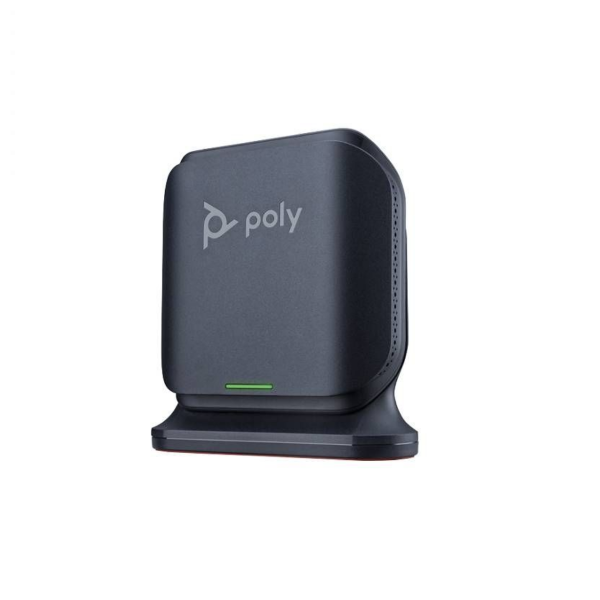

About the Poly Rove B2

The Poly Rove B2 is a Single Cell DECT Base Station that is for use with the Poly Rove 30 and the Poly Rove 40 DECT IP Cordless Handsets. The B2 Base Station supports up to 20 Handsets and up to 10 simultaneous calls (20 Calls in Dual Cell Base Station mode).

When paired with another Poly Rove B2 Single Cell Base Station the Poly Rove B2 transforms into a Dual Cell Base Station.

Providing a range of up to 50 metres indoors and up to 300 metres outdoors, the Poly B2 ensures that you are always reachable. The range can be extended with an additional Base Station or with the Poly Rove R8 Repeater.

The B2 supports Power over Ethernet (PoE), to get yor Base Station up and running a single network cable is all that is needed, if PoE isnt available the Poly B2 Base Station can be used with the included Power Supply Unit (PSU).

Features

• Up to 20 SIP Regsitrations
• Up to 20 Handsets (Single / Dual Cell)
• Up to 10 Simultaneous Calls - Up to 20 with Dual Cell
• Missed Call Notifications
• LED Indicator
• Do Not Disturb, Intercom
• Call Transfer, Hold, Pickup, Call Resume

Specifications:

DECT Frequency

• 1880-1900 MHz

Range

• Indoor - Up to 165ft (50m)
• Outdoor - Up to 980ft (300m)
• Range Increases by up to 50m or up to 300m Depending on Environment as a Base Station or Repeater is Added

Audio Features

• Narrowband Codecs: G.711 A-law and μ-law, G.726, G.729A, G.729AB
• Wideband Codec: G.722, Opus
• Voice Activity Detection
• Comfort Noise Generation
• DTMF tone generation (RFC2833 and
• SIP INFO)
• Low-Delay Audio Packet Transmission
• Adaptive Jitter Buffers
• Advance Noise Cancellation
• Packet Loss Concealment
• G.165, 168 Echo Cancellation
• Silence Suppression

Telephony Features

• Up to 20 Handsets (Single/Dual Cell)
• Up to 10 Simultaneous Calls (Single Cell)
• Up to 20 Simultaneous Calls (Dual Cell)
• Up to 20 SIP Registrations
• Shared Call / Bridged Line Appearance
• Distinctive Incoming Call Treatment / Call Waiting
• Call Timer and Call Waiting
• Call Transfer, Hold, Pickup, Call Resume
• Called, Calling, Connected Party Information
• Local or Network based Three-Way Audio Conferencing
• Missed Call Notifications
• Do Not Disturb (DND) Function
• Intercom, Enhanced Call Park
• Caller ID Enable / Disable
• Call Forward on Busy, on no Answer, Unconditional
• Message Waiting Indicator (MWI)
• LED Indicator
• Locate Handset and Handset
• Registration Button
• Monitor Signal Strength of Handsets
• Monitor Battery Life of Handsets
• Out of Voice Band DTMF (RFC 2833)
• Out of Voice Band DTMF (SIP INFO METHOD)
• Call Progress Tone Generation
• Daylight Savings Time Support - Worldwide
• XSi Directory
• XML/LDAP / Remote Phonebook
•  DECT™ Redundancy

VoIP Features

• 10 Service Provider configuration Profile assignments (ITSP Profile A – J)
• Up to 20 Service Subscription Profile Assignments (SP 1 – 20)
• SIPv2 (RFC 3261, 3262, 3263,3264)
• SIP over UDP
• SIP over TCP
• SIP over TLS
• SIP Proxy Redundancy - Local or DNS based
• SVR, Primary and Secondary Fallback List
• Maximum Number of Sessions - Independent per Service
• Codec Profile per SIP SP
• Dynamic Audio Payload
• SUBSCRIBE/NOTIFY Framework (RFC 3265)
• NOTIFY Dialog, Line Status
• SUBSCRIBE Message Summary
• VoIP NAT Interworking
• DATA Header Support
• Remote-Party-ID (RPID)
• P-Asserted-Identity (PAID)

Base Station Power

• External Universal AC Adapter (5V 2A DC)
• Power over Ethernet (PoE)

Package Contents

• B2 Base Station
• Stand, Ethernet Cable
• Power Adapter
• Wall Mounting Kit
• Quick Start Guide
• Safety Sheet
