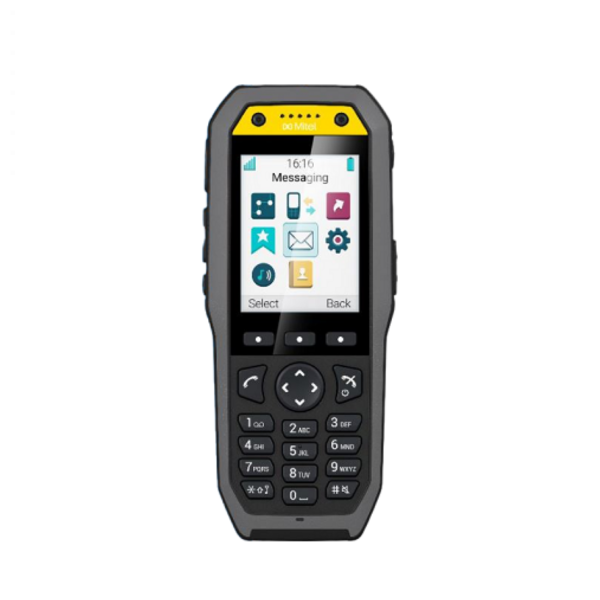

Mitel 5619 IP DECT Phone

An Intrinsically Safe, ATEX Certified, IP DECT Cordless Handset, Designed and Engineered for Users who Work in Hazardous Area Environments

About the Mitel 5619

Designed for hazardous environments, the Mitel 5619 is a rugged, reliable Intrinsically Safe Handset - built to withstand the toughest of conditions.

The Handset is designed for users who work in the toughest working environments - Alarm Support with Push Button, Man Down, no Movement Alarm and / or Pull Cord are some of the Mitel 5619's many advanced features.

The Mitel 5619 features a large 2.4 Inch TFT Display, Advanced Messaging, Wired and Wireless Headset Connection, Multiple Language and Phonebook Options and a Long Lasting Battery.

The robust design of the Mitel 5619 protects against shock, accidental drops, vibration and temperature. Its casing is made from durable PC / ABS material. The Antenna is integrated inside the Handset.

The Ingress Protection Rating of IP65, makes the Mitel 5619 resistant to dust and to water, ensuring optimal performance, even in challenging environments. Its EX Certification ensures that it is safe to use in explosive atmospheres, ensuring compliance with industry regulations.

Location Management

Ensure the safety and well being of your workforce with the Mitel 5619's Advanced Location Tracking capabilities. Leveraging Low Frequency (LF), Bluetooth Low Energy (BLE), and Infrared (IR) technologies, the Mitel 5619 provides high precision location tracking of workers - enabling worker locations to be identified in real time.

Phone Management

Choose the management solution that best suits your needs with the Mitel 5619. The DECT Phones can be managed in two ways:

• Centralised Management - Use the Mitel CPDM3 / WSM3 Server for a Centralised, Efficient Approach
• Local Management - Utilise a Dedicated Desk PDM Programmer for on Site Phone Management

Features

• High Resolution 2.4 Inch TFT Display with Multi-Colour LED's
• Shock, Vibration, Drop, Temperature and Chemical Resistant
• Alarm Support with Push Button, Man Down, No Movement and / or Pull Cord
• Intrinsically Safe with EX Classification
• Advanced Messaging Including Priority and Confirmation
• Bluetooth 5.0, 3.5mm Headset Connector
• Wideband Audio Support
• Multi-Function Button
• IP65 Ingress Protection Rating
• Integrated Antenna
• Rechargeable Li-Ion Battery - Full Charge Takes Four Hours
• Casing made from Durable PC / ABS Material
• Loudspeaker Function
• Two Microphones - One on the Front at the Bottom Side for Speech in Voice Communication and One on the Back Side for Noise Cancelling During a Call

Technical Specifications:

Display

• Large 2.4 Inch Colour TFT Display with White LED Backlighting
• Multiple Colours with High Resolution 262k Individual Colours - 240 x 320 Pixels

Telephony

• Answer Call - Button Press or Auto Answer
• Calls List Storage Capacity - 50 Calls (Received, Dialled and Missed) with Time Stamp

Messaging

• Maximum Message Length - Up to 140 Characters from Handset, Depending on Language and System Settings
• Storage Capacity - 30 Received / Sent Messages (>20,000 Characters)
• Other - Configurable Beeps Depending on Urgency, pre-programmed Messages

User Interface

• Indicators - Sound, Vibrator, illuminated Display and / or a Multicoloured LED Indicates Incoming Calls / Messages, 14 Ringtones
• Buttons and Keys - Three Programmable Soft Keys, Fourway navigation Key, Off Hook Key, On Hook and Power On / Off Key, Numerical Keys, Sound Off Key, Volume Up / Down, Alarm Button, Mute Multifunction Button and Push to Talk Multifunction Button

Connectors

• Multipurpose - Multipurpose Connector for Battery Charging, Fast Software Download and Configuration
• Other - Screw Reinforced Standard 3.5mm Headset Connector for Peltor/3M Hearing Protection Headset Cable - The 3.5mm Connector can also be used for Charging with a Charging Cable using a Europlug

Audio and Codecs

• Wideband Audio - Support of Voice Codecs G.722.2 and G.726
• Background Noise Reduction - Two Microphones and Adaptive Noise Reduction
• Ring Signal - Adjustable in 8 Steps
• Max Sound Ring Signal Level - 100 dBA at 10cm Distance
• Earpiece - Adjustable in 8 Steps of 3dB Each
• Loudspeaker - Duplex Loudspeaker

Phonebooks

• Central Phonebook - Unlimited Number of Entries, Maximum 40 Characters in a Name and 20 Digits in a Number
• Company Phonebook - 1000 Entries, Maximum 24 Characters in a Name and 24 Digits in a Number
• Local Phonebook - 250 Entries, Maximum 48 Characters in a Name and 24 Digits in a Number

Battery

• Type - Li-Ion 3.7V, 920 mAh
• Speech Time - Up to 10 Hours (with Bluetooth Headset and Location Features Enabled), Stand by Time - Up to 120 Hours (with Black Screen Saver Activated and Location Features Disabled)
• Charge Time - Up to 4 Hours
• Discharge / Charge Cycles - >=80% Capacity after 400 Full Charge / Discharge Cycles
• Easy to Replace Battery

EX Classification

• ATEX Certified, IECEx Certified
• CSA Certified for North America
• UK Ex Certified in the UK

Security

• Encryption - Full Support of the DECT Security EN300444 Feature N35 (Enhanced Security) and N36 (AES/DSAA2 Authentication)

Alarm Types

• Push Alarm Button
• Man Down
• No Movement and / or Pull Cord

Weight and Dimensions

• Weight - 175g (6.17 oz) Including Clip and Battery
• Dimensions - 150mm x 64mm x 23mm

Package Contents

• Mitel 5619 IP DECT Phone
• Li-Ion Battery
• Documentation
