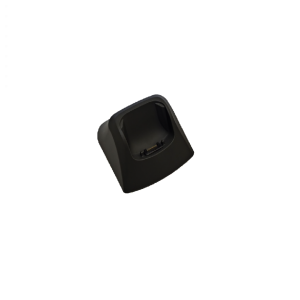

Mitel 5614 DECT Phone Including Charging Base & PSU

The Mitel 5614 DECT phone is designed for mobile users who need a device that meets their demanding communication needs in workplaces such as hospitals and light industry where it offers additional functionality for messaging and alarm handling.

The Mitel 5614 affords users the flexibility to tailor the phone for specific needs through its programmable soft keys. It offers full duplex hands-free, support for both Bluetooth headsets as well as for standard (3.5 mm) headsets to compliment the way they work today.

The Mitel 5614 offers a large high resolution and informative 2.0” backlit colour display.

Phone Management

The DECT phones can be managed in two alternatives ways - a central solution using the CPDM3/WSM3 server and/or a local PC solution with phones docked in a dedicated Desk PDM Programmer.

CPDM3

The Central Portable Device Manager (CPDM3/WSM3) solution has the same functionality as the PC-based solution, but is centralized and can manage multiple DECT phones simultaneously. The CPDM3 works with LAN-connected Rack PDM Chargers and Desk PDM Programmers. Phones can then be managed either locally or remotely. For DECT phones used in IP DECT systems the phones can also be managed over-the-air.

Desk PDM Programmer

Desk PDM (Portable Device Manager), supports configuration of phones with all their parameters, as well as software upgrades. The Desk PDM software is installed on a PC and connected to the Desk PDM Programmer via the included USB cable. A database on the PC stores all the phone configurations - only one phone can be managed at a time.

Key Features

• Alarm Button
• DECT SMS
• Illuminated Display for Incoming Call & Charging
• 3 Soft Keys, 4 Way Navigation Key
• Standard 3.5mm Headset Connector
• Bluetooth for Headset
• Handsfree With Duplex Loudspeaker
• 14 Adjustable Ring SIgnals Including Vibrating
• Central Phonebook Unlimited, 1000 Company Phonebook Entries and 250 Local Phonebook Entries
• Backlit High Resolution Colour TFT Display (2.0”, 240 x 320 Pixel)
• Mitel 5614 IP DECT Phone Including Battery, Charging Base and PSU

Handset Features

• Large High Resolution Colour LCD Display with White LED Backlighting
• Illuminated Display of Incoming Calls with Vibrating Alert and 14 Ring Signals
• Auto Answer or Button Press
• Manual and Automatic Keypad Lock
• DECT SMS
• Alarm Button
• Caller List with 25 Entries with Time Stamp
• 18 Languages - Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese (Brazilian), Russian, Slovakian, Spanish, Swedish and Turkish

Technical Data

• Standards - Automatic Detection and Configuration for US & EU DECT
• Battery - Li-polymer 3.7V 920 mAh
• Standby Time - Up to 240 Hours - 120 Hours Using a Bluetooth Headset
• Talk Time - Up to 20 Hours - 13 Hours Using a Bluetooth Headset
• Dimensions - (L x W x D) - 137 x 52 x 21 mm - (5.4 x 2 x 0.8 Inches)
• Weight with Battery -  Excluding Clip - 135g - (4.8 oz)
• USB Connector for Battery Charging, 3.5mm For Headset

Supported Platforms

• MX-ONE - Integrated DECT - IP DECT
• MiVoice Business - IP DECT
