Logitech Tap Room Solution for Microsoft Teams - Medium

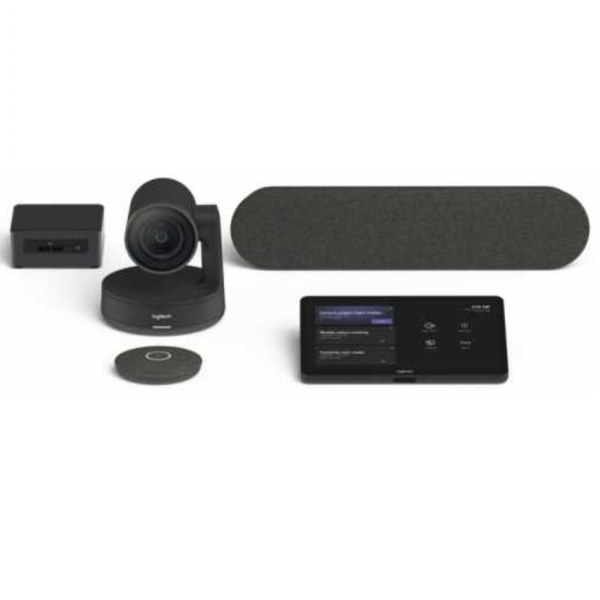

The Logitech Tap Room Solution for Microsoft Teams | Medium consists of - Logitech Tap Touch Controller, Logitech Rally Conference Camera (Including 1 x Speaker and 1 x Microphone Pod), PC Mount, Microsoft Approved Mini PC, Windows 10 IoT Enterprise and Logitech Strong USB 10m Cable

Room Solutions with Logitech Tap

Video Conferencing Rooms Solutions with Logitech Tap deliver Calendar Integration, Touch to Join, Instant Content Sharing and always on Readiness. Pre-Configured with room optimised software from Google, Microsoft or Zoom.

Tap Into Microsoft Meetings

Transform any space into a Microsoft Teams Meeting Place with One Touch Join, Easy Content Sharing and Centre of Room Control for Microsoft Teams and Skype for Business Meetings.

Touch Control for the Workplace

Tap connects to a Computer via USB as an Additional Display, Opening up new Possibilities for Applications like Team Collaboration, Digital Signage, Room Automation, Environmental Control and other Workflows where Touch Control is Desired.

Everything You Need

Logitech Tap Room Solutions for Microsoft Teams include all the necessary components needed for Video Meetings, Available in Small, Medium and Large configurations, these pre-configured systems include a Mini PC, Logitech Meetup or Rally Conference Camera with RightSense™ Technologies, PC Mount with Cable Retention and the Logitech Tap Touch Controller.

Solutions for Every Room

Its easy to deploy Microsoft Teams Rooms throughout the workplace. Just match a Small, Medium or Large Configuration to each of your rooms and then add accessories to suit your space.

Touch Controls

• Sleek Design
• Silent Operation
• Motion Sensor for always on readiness
• 10.1 Inch Touch Display
• Anti-Glare and Oleophobic Coating
• 3.5mm Headphone Jack
• Comfortable 14° Angle
• Motion Sensor

Clever Cabling - Route Cables Through the Bottom or from the Back:

• Cable Retention
• In Wall Rated Logitech Strong USB Cable
• VESA Mounting Points
• USB-A Input for Speakerphone and Accessories
• HDMI Input fir Instant Content Sharing
• Strain Relief for Bottom and Rear Exit Cable Routing

Easy Installation - Multiple Mounts Available (Not Included):

Additional Mounting Accessories are available, ideal for Conference rooms that need to save space, Optional Mounting Accessories are Listed below:

Logitech Tap Riser Mount

Logitech Tap Table Mount

Logitech Tap Wall Mount

Clean Installation - Logitech Strong USB Cable:

The Logitech Strong USB Cable allows the Logitech Tap to be Installed up to 10 Metres away from the PC with the Included Cable.

Features

• 10.1 Inch Touch Screen
• Fan Free for Silent Operation
• Commercial Grade Cabling and Cable Management
• HDMI Input for Instant Content Sharing
• Built-In Motion Sensor
• USB Accessory Port
• Built in Cable Retention
• Multiple Mounting Options Available (Optional Accessories Above)
• 3.5mm Headset Jack
• Anti-Glare and Olephobic Coating
• VESA Mounting Points
• Suitable for Conference Calls with up to 10 Participants

Specifications

• Touch Screen - 10.1 Inch Diagonal Screen with 14° Display Angle Oleophobic and Anti-Glare Coating - 1280 x 800 Resolution
• System Requirements - Windows® 10, Chrome™ OS 75 and Higher. USB 2.0, 3.0 or 3.1 Type A Port

Ports and Interfaces

• USB 2.0/3.0/3.1 Type C (to PC)
• USB 2.0/3.0/3.1 Type A (for Accessory Connection)
• HDMI Input (for 1080p Video + Audio Content Sharing)
• 3.5mm 4 Pole Headset Jack

General Specifications

• Internal Cable Retention and Strain Relief System
• Integrated Ultrasonic Speaker
• Integrated PIR Motion Sensor
• 100mm x 100mm VESA FDMI (Flat Display Mounting Interface)
• Kensington Lock Slots (2)

Compatibility and Certifications

• Microsoft Teams Rooms / Skype Room System
• DisplayLink Plug and Display™ - Tap Connects via USB as an Additional Display for Supported Operating Systems, Including Windows 10 and Chrome OS

Package Contents

• Logitech Tap Touch Controller
• Logitech Rally Conference Camera - Including 1 x Speaker and 1 x Microphone Pod
• Windows 10 IoT Enterprise
• PC Mount
• Microsoft Approved Mini PC
• Logitech Strong USB 10m Cable
